How much do you know about stage lighting sources?
Everyone hopes that the biggest highlights of every stage lighting we buy are: the illumination distance should be long, the brightness should be high, the CRI should be as large as possible, and the lumens should be as large as possible. But in fact, most people only know one concept and do not have any data concepts.
So today we list the light sources used by popular stage lighting fixtures, including the main parameters of LED light sources, color temperature, color rendering index, luminous flux, light efficiency, maximum voltage, current, power, and maximum current.
1.

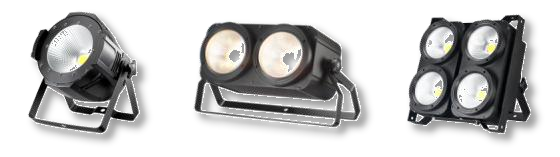

50wLED light source is used in four-eye COB par light

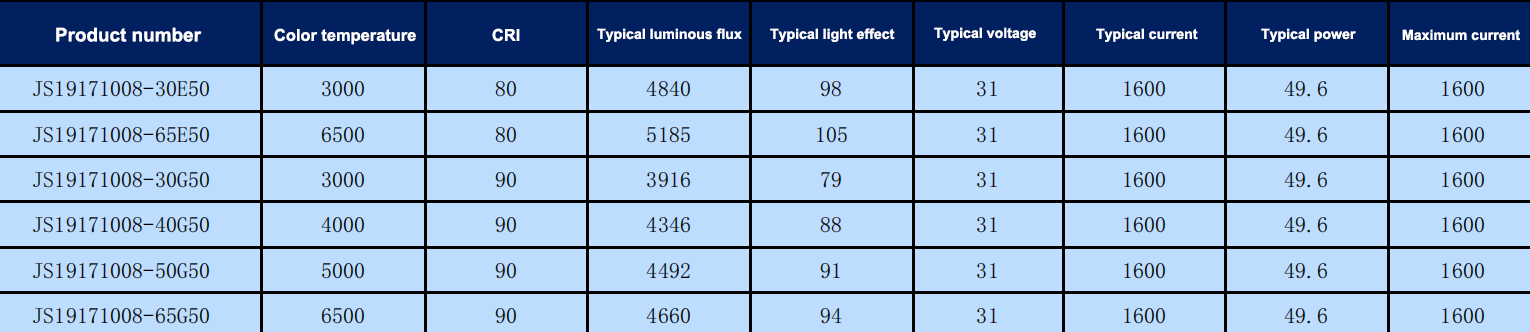

JS19171008-XXX50:
Appearance size: 19.00mm×19.00mm×1.55mm
Luminous surface: 16.8mm
Color tolerance: ≤5 SDCM
Maximum power: 50W Package type: Flip chip (superconducting aluminum)
Product application: surface light, small magic lamp
Driving power supply: constant current source 36V or constant voltage source 32V
Product Details:
2.
100wLED light source is used in four-eye COB par light

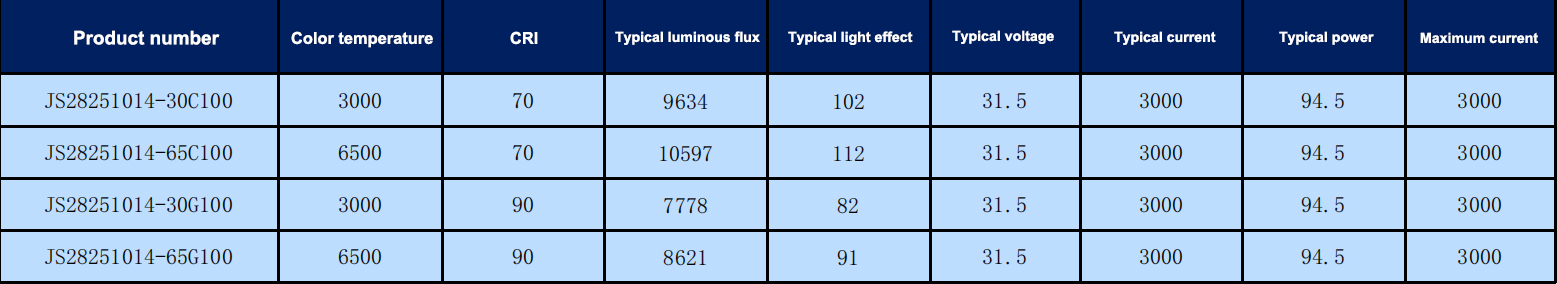

JS28251014-XXX100：
Appearance size: 28.00mm×28.00mm×1.55mm
Luminous surface: 24.5mm
Color tolerance: ≤5 SDCM
Maximum power: 100W
Package type: Flip chip (superconducting aluminum)
Product application: focusing surface light, spotlight, imaging light
Driving power supply: constant current source 36V or constant voltage source 32V
Product Details:
3.
200wLED light source is used in 200w Led Profile Spot Light
JS28251044-XXX200：
Appearance size: 28.00mm×28.00mm×1.55mm
Luminous surface: 24.5mm
Color tolerance: ≤5 SDCM
Maximum power: 200W
Package type: Flip chip (superconducting aluminum)
Product application: focusing surface light, spotlight, imaging light
Driving power supply: constant current source 36V or constant voltage source 32V
Product Details:
4.
200wLED light source is used in 200w Led Profile Spot Light

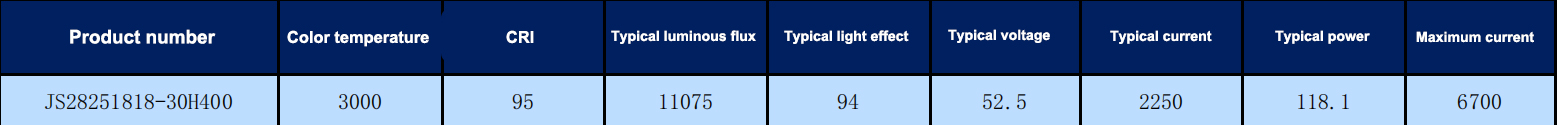

JS28251818-XXX200：
Appearance size: 28.00mm×28.00mm×1.55mm
Luminous surface: 24.5mm
Color tolerance: ≤5 SDCM
Maximum power: 200W
Package type: formal (mirror aluminum)
Product application: focusing surface light, reasoning light, spotlight
Product Details:
5.
400wLED light source is used in 400w Led Profile Spot Light
.JS28251825-XXX400：
Appearance size: 28.00mm×28.00mm×1.55mm
Luminous surface: 24.5mm
Color tolerance: ≤5 SDCM
Maximum power: 400W
Packaging material: formal (copper substrate)
Product application: imaging lamp, spotlight, zoom surface light
Product Details:
6.
30w LED light source is used in 200w Led Profile Spot Light

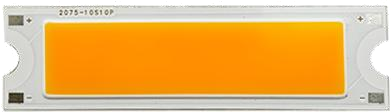

JSA3A11010-19N30：
Appearance size: 20.00mm×75.00mm×2.05mm
Luminous surface: 60*15.6mm
Color tolerance: ≤5 SDCM
Maximum power: 30W
Package type: flip chip (ordinary aluminum)
Product application: retro lamp
Driving power supply: constant current source 36V or constant voltage source 32V
Product Details:
7.

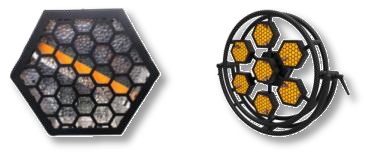

30w LED light source is used in 7 Halo Hexa Pixel Control Blinder Light

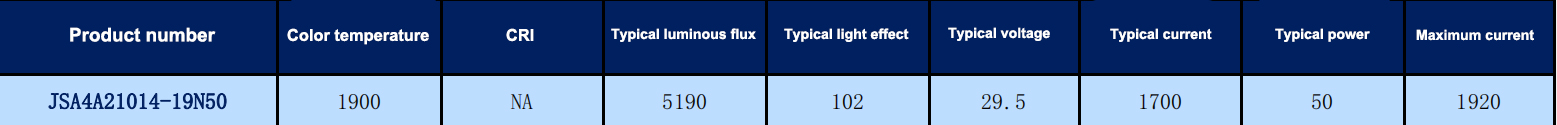

JSA4A21014-19N50：
Appearance size: 19.00mm×144.00mm×2.05mm
Luminous surface: 132*17.0mm
Color tolerance: ≤5 SDCM
Maximum power: 60W
Package type: flip chip (ordinary aluminum)
Product application: retro lamp
Driving power supply: constant current source 36V or constant voltage source 32V
Product Details:
8.
80w LED light source is used in 7 Halo Hexa Pixel Control Blinder Light

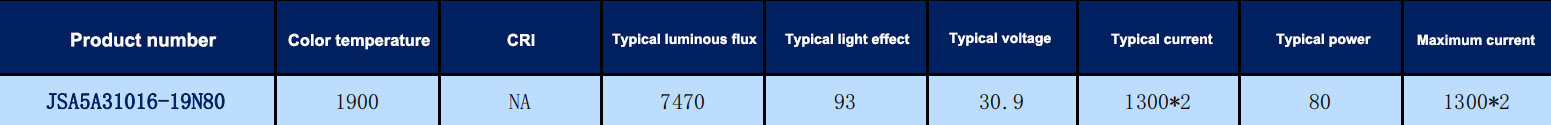

JSA5A31016-19N80：
Appearance size: 27.00mm×180.00mm×2.05mm
Luminous surface: 161*15.6mm
Color tolerance: ≤5 SDCM
Maximum power: 80W
Package type: flip chip (ordinary aluminum)
Product application: retro lamp
Driving power supply: constant current source 36V or constant voltage source 32V
Product Details:
9.
70w LED light source is used in 7 Halo Hexa Pixel Control Blinder Light

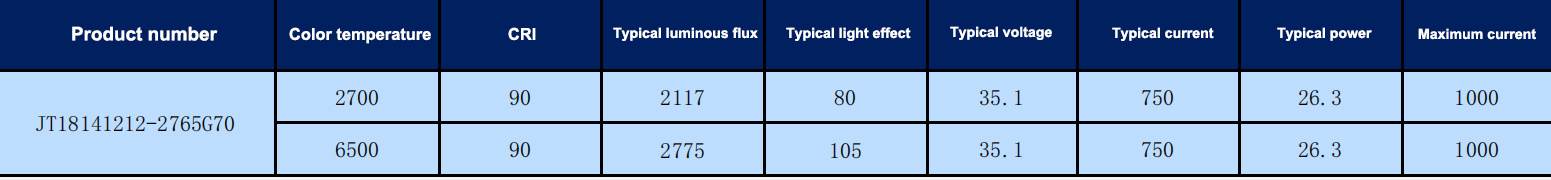

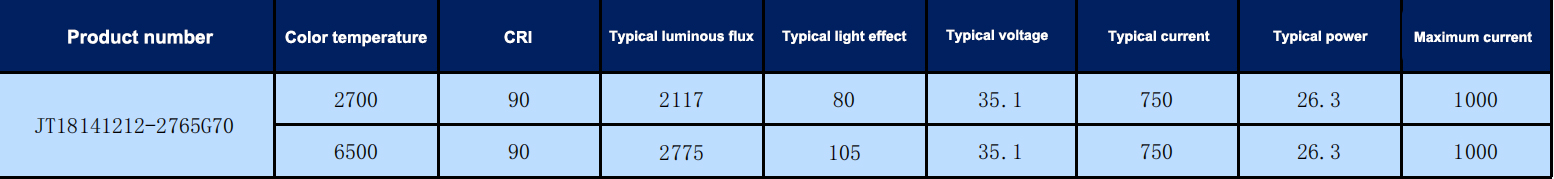

JT18141212-2765G70：
Appearance size: 17.80mm×17.80mm×1.55mm
Luminous surface: 13.8mm
Color tolerance: ≤5 SDCM
Maximum power: 35+35W
Package type: Flip chip (superconducting aluminum)
Product application: surface light
Driving power supply: constant current source 40V or constant voltage source 36V
Product Details:
10.
100wLED light source is used in four-eye COB par light

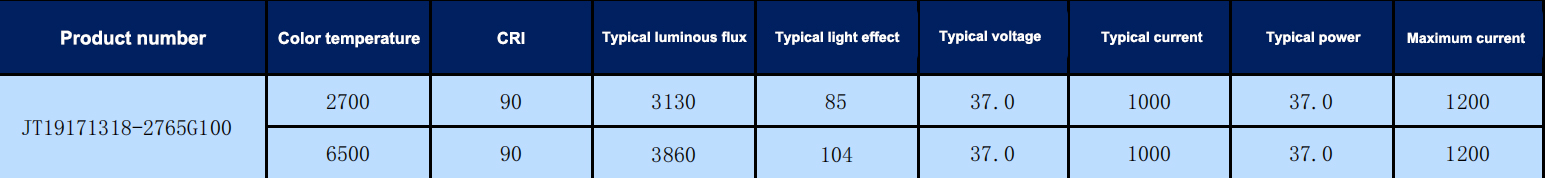

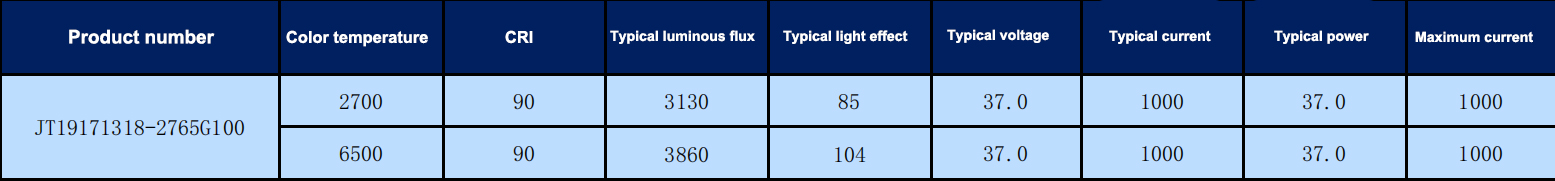

JT19171318-2765G100：
Appearance size: 19.00mm×19.00mm×1.55mm
Luminous surface: 16.8mm
Color tolerance: ≤5 SDCM
Maximum power: 50+50W
Package type: Flip chip (superconducting aluminum)
Product application: four-eye par light
Driving power supply: constant current source 40V or constant voltage source 38V
Product Details:
11.
25+25wLED light source is used in four-eye COB par light

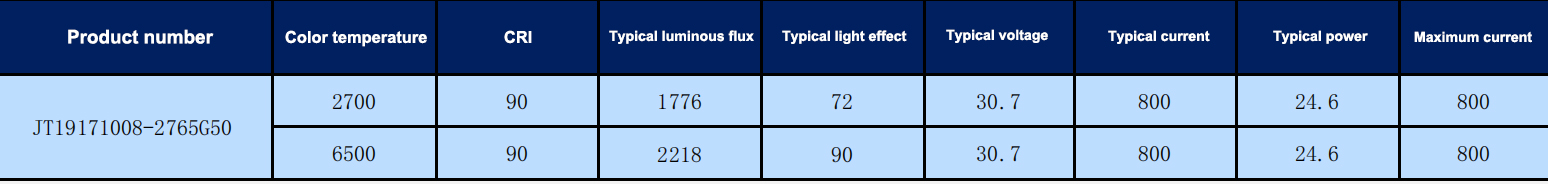

JT19171008-2765G50：
Appearance size: 19.00mm×19.00mm×1.55mm
Luminous surface: 16.8mm
Color tolerance: ≤5 SDCM
Maximum power: 25+25W
Package type: Flip chip (superconducting aluminum)
Product application: surface light
Driving power supply: constant current source 36V or constant voltage source 32V
Product Details:
12.
50+50wLED light source is used in four-eye COB par light

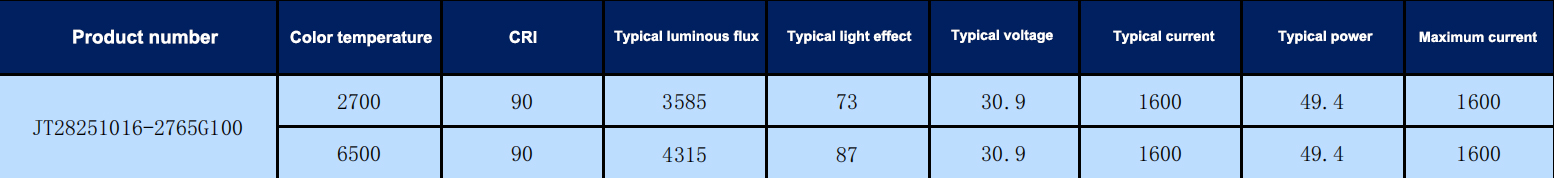

JT28251016-2765G100：
Appearance size: 28.00mm×28.00mm×1.55mm
Luminous surface: 24.5mm
Color tolerance: ≤5 SDCM
Maximum power: 50+50W
Package type: Flip chip (superconducting aluminum)
Product application: audience lights, surface lights
Driving power supply: constant current source 36V or constant voltage source 31.5V
Product Details:
13.
100+100w LED light source is used in four-eye COB par light
JT28251314-2765I200：
Appearance size: 28.00mm×28.00mm×1.55mm
Luminous surface: 24.5mm
Color tolerance: ≤5 SDCM
Maximum power: 100+100W
Package type: flip chip (copper substrate)
Product application: film and television lights, photography lights
Product Details:
14.
200+200w LED light source is used in 400w Led Profile Spot Light

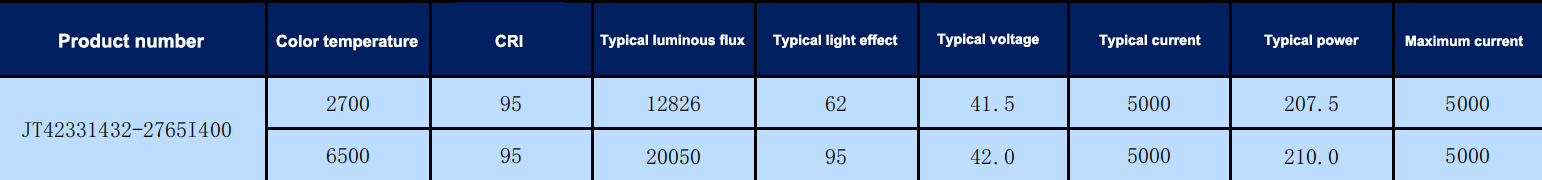

JT42331432-2765I400：
Appearance size: 42.00mm×42.00mm×2.05mm
Luminous surface: 33.0mm
Color tolerance: ≤5 SDCM
Maximum power: 200+200W
Package type: flip chip (copper substrate)
Product application: film and television lights, photography lights
Product Details:
15.
30w LED light source is used in Led Profile Spot Light

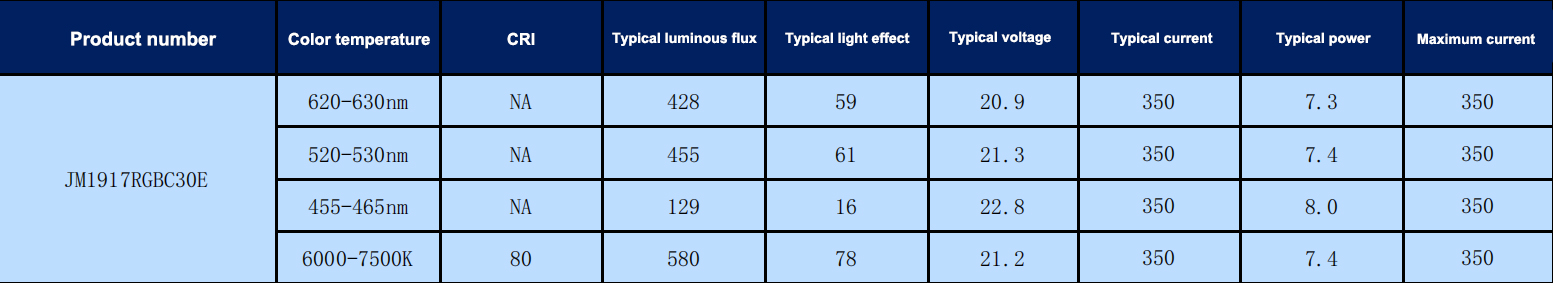

JM1917RGBC30E：
Appearance size: 19.00mm×19.00mm×1.55mm
Luminous surface: 16.8mm
Color tolerance: ≤5 SDCM
Maximum power: 30W
Package type: formal (superconducting aluminum)
Product application: surface light, effect light
Product Details:
16.
50w LED light source is used in wash led beam moving head

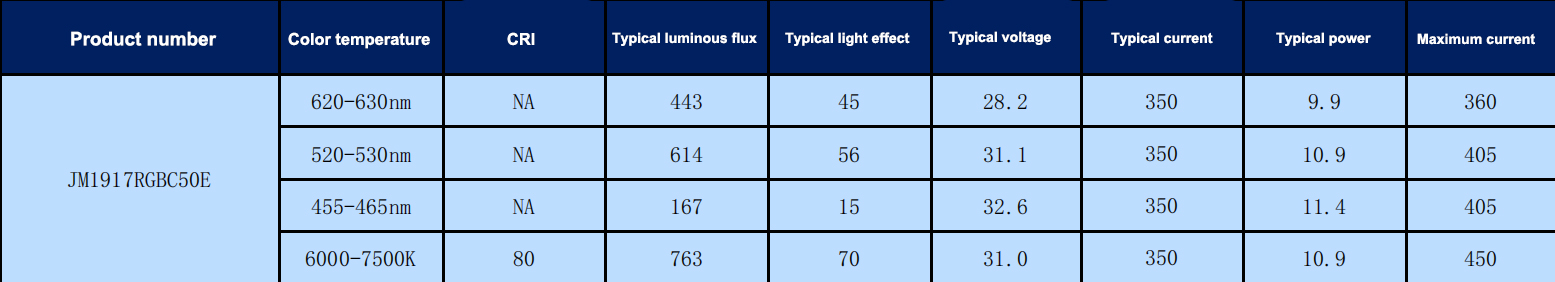

JM1917RGBC50E：
Appearance size: 19.00mm×19.00mm×1.55mm
Luminous surface: 16.8mm
Color tolerance: ≤5 SDCM
Maximum power: 50W
Package type: formal (superconducting aluminum)
Product application: surface light, effect light
Product Details:
17.
200w LED light source is used in wash led beam moving head
JMA225RGBC200E：
Appearance size: 52.00mm×60.00mm×2.05mm
Luminous surface: 24.5mm
Color tolerance: ≤5 SDCM
Maximum power: 200W
Package type: formal (copper substrate)
Product application: imaging light, zoom light, surface light
Product Details:
18.
200w LED light source is used in Led Profile Spot Light

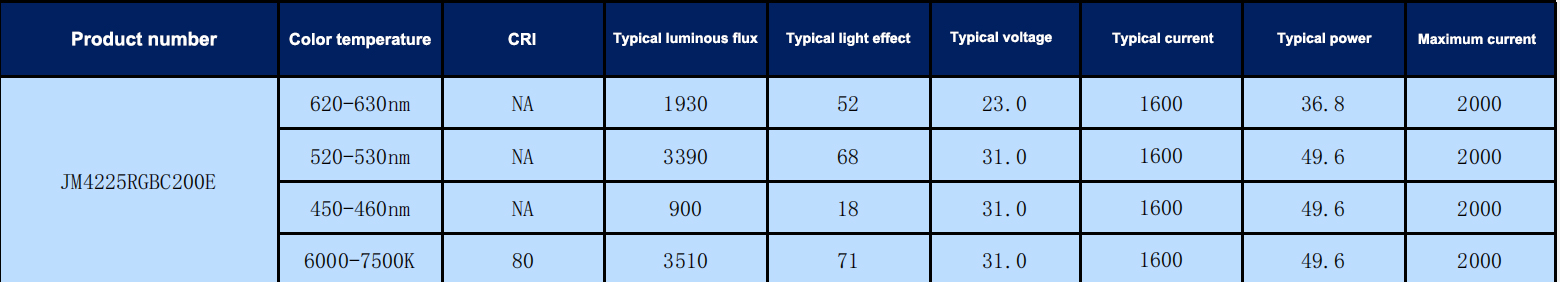

JM4225RGBC200E：
Appearance size: 42.00mm×42.00mm×2.05mm
Luminous surface: 24.5mm
Color tolerance: ≤5 SDCM
Maximum power: 200W
Package type: formal (copper substrate)
Product application: imaging light, zoom light, surface light
Product Details:
19.
800w LED light source is used in Led Profile Spot Light

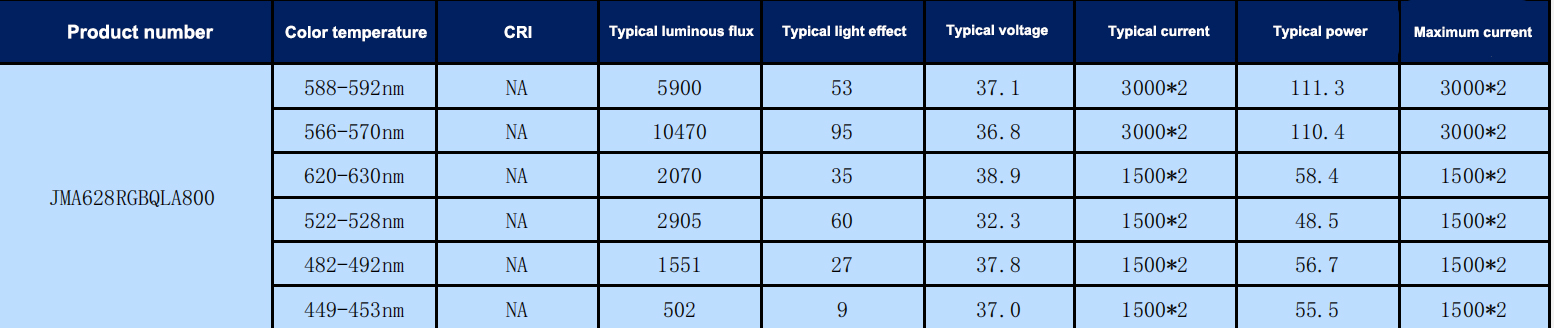

JMA628RGBQLA800：
Appearance size: 100.00mm×60.00mm×3.56mm
Luminous surface: 28.0mm
Maximum power: 800W
Package type: formal (copper substrate)
Product application: film and television lights, photography lights
Product Details:
20.

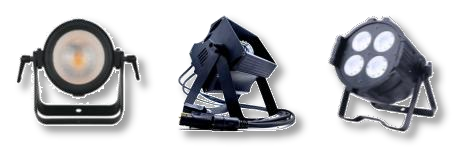

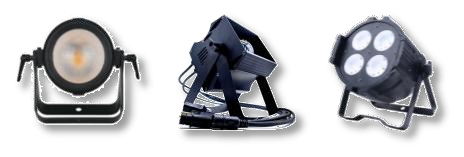

18+18w LED light source is used in COB LED Par Can Light
JT14081202-2765G36：
Appearance size: 13.50mm×13.50mm×1.55mm
Luminous surface: 7.8mm
Color tolerance: ≤5 SDCM
Maximum power: 18+18W
Package type: Flip chip (superconducting aluminum)

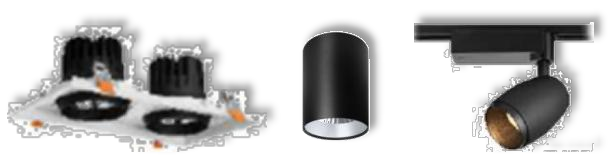

Product application: copper lamps, ceiling lamps, spotlights
Product Details:
21.
10+10w LED light source is used in COB LED Par Can Light
JT14081202-2765G36：
Appearance size: 13.50mm×13.50mm×1.55mm
Luminous surface: 7.85mm
Color tolerance: ≤5 SDCM
Maximum power: 10+10W
Package type: Flip chip (superconducting aluminum)
Product application: copper lamps, ceiling lamps, spotlights
Product Details:
22.
19+19w LED light source is used in COB LED Par Can Light
JT16111206-2765G30：
Appearance size: 15.80mm×15.80mm×1.55mm
Luminous surface: 11.0mm
Color tolerance: ≤5 SDCM
Maximum power: 19+19W
Package type: Flip chip (superconducting aluminum)
Product application: copper lamps, ceiling lamps, spotlights
Product Details:
23.
35+35w LED light source is used in COB LED Par Can Light
JT18141212-2765G70：
Appearance size: 17.80mm×17.80mm×1.55mm
Luminous surface: 13.8mm
Color tolerance: ≤5 SDCM
Maximum power: 35+35W
Package type: Flip chip (superconducting aluminum)
Product application: copper lamps, ceiling lamps, spotlights
Product Details:
24.
50+50w LED light source is used in COB LED Par Can Light
JT19171318-2765G100：
Appearance size: 19.00mm×19.00mm×1.55mm
Luminous surface: 16.8mm
Color tolerance: ≤5 SDCM
Maximum power: 50+50W
Package type: Flip chip (superconducting aluminum)
Product application: copper lamps, ceiling lamps, spotlights
Product Details:
25.
7+7w LED light source is used in COB LED Par Can Light

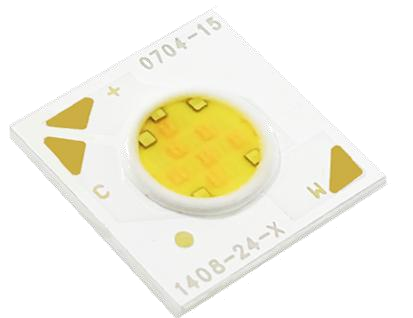

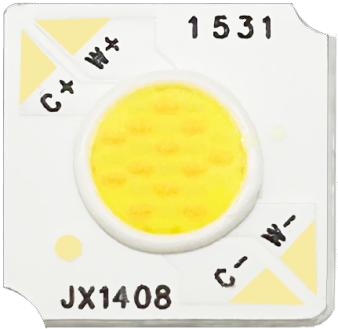

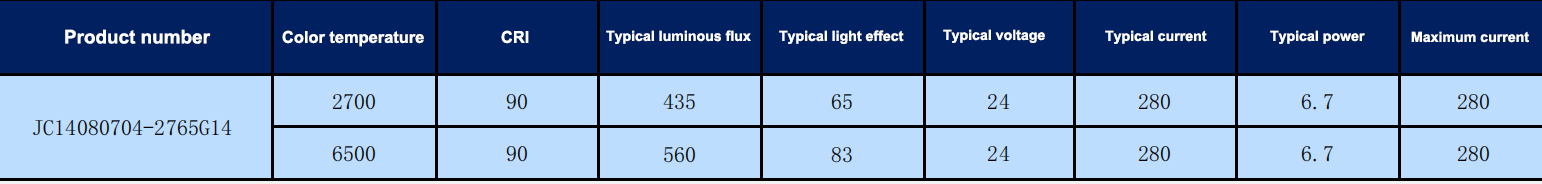

JC14080704-2765G14:
Appearance size: 13.50mm×13.50mm×1.65mm
Luminous surface: 7.5mm
Color tolerance: ≤5 SDCM
Maximum power: 7+7W
Package type: Flip chip (superconducting aluminum)
Product application: copper lamps, ceiling lamps, spotlights
Product Details:
