| Light Source |
LEDs |
18pcs multichips 12W, Quad RGBW 4-in-1 |
|
Color Temperature |
White 6900-7200K |
|
CRI (Color Rendering Index) |
Ra > 70 |
|
Luminous Flux |
Max. 7048 lm |
|
LED Lifespan |
> 50,000 hrs |
|
Drive Mode |
Constant Current |
|
Drive Current |
400 mA |
| Optics |
Beam Angle |
25° (15° or 45° optional) |
|
Lens Diameter |
42 mm |
|
Flicker Free |
Yes (Refresh Rate >1.5K Hz) |
|
Light Output @15° |
1784 Lux @4m / 496 Lux @8m |
| Colors |

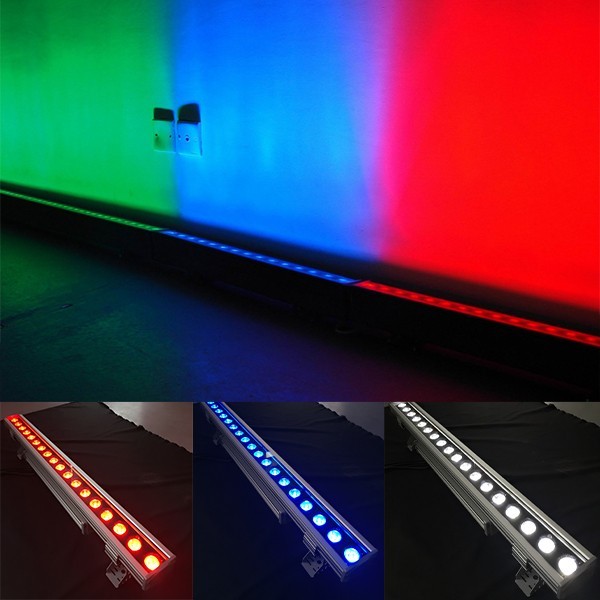

Color Mixing |
RGBW |
| Body |
Housing Material |
Stretching Aluminium |
|
Housing Color |
Black (White optional) |
|
Surface Treatment |
Black: Baking Finish / White: Electroplate |
|
Cooling System |
Double Layer, Fanless Silent Design |
|
IP Rating |
IP65 (Outdoor) |
|

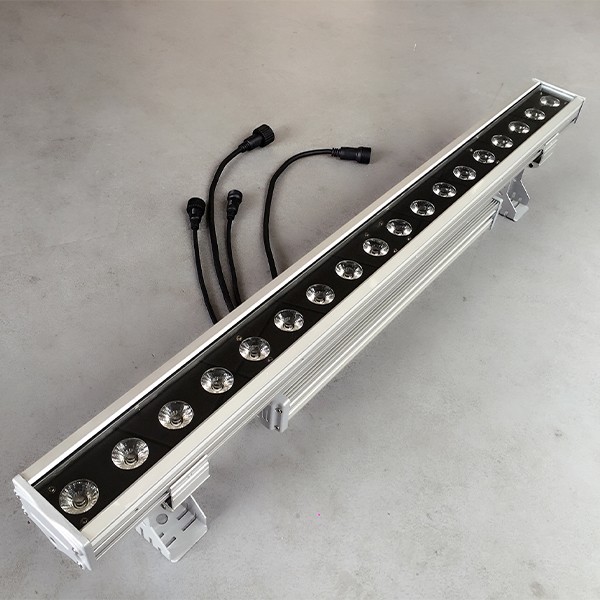

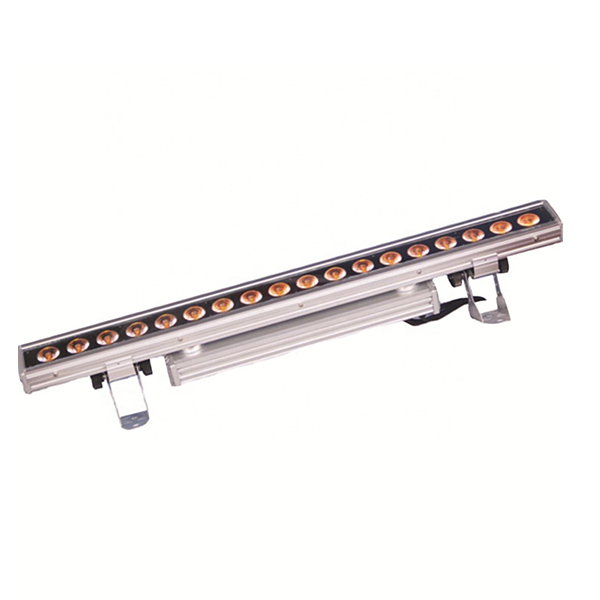

Product Type |
Aluminium Bar Light |
|
Length |
1 Meter |
|
Tilt Angle |
-180° to +180° |
| Specification |
Max. Power Consumption |
220W |
|
Power Supply |
AC100V-240V, 50/60Hz (Auto-ranging) |
|

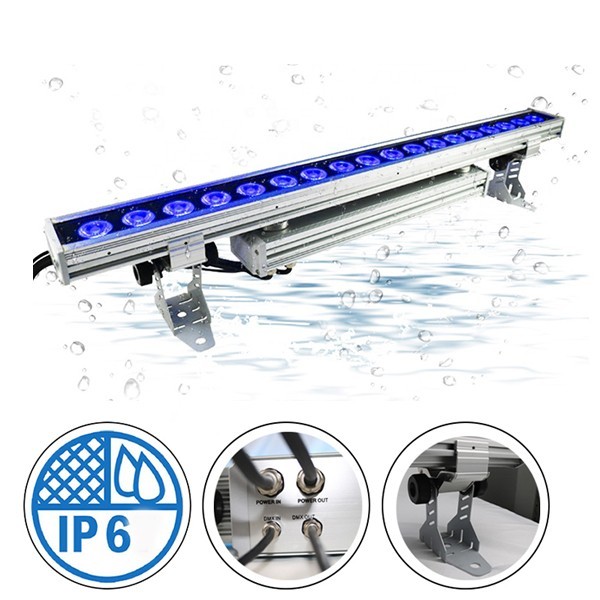

Power Connection |
Waterproof In/Out (Daisy Chain) |
|
Max. Linkage |
Up to 17 Units (Cable: 3*1.5mm²) |
|
Power Failure Memory |
Yes |
|
Protection |
Electronic Short Circuit Protection |
| Effects |

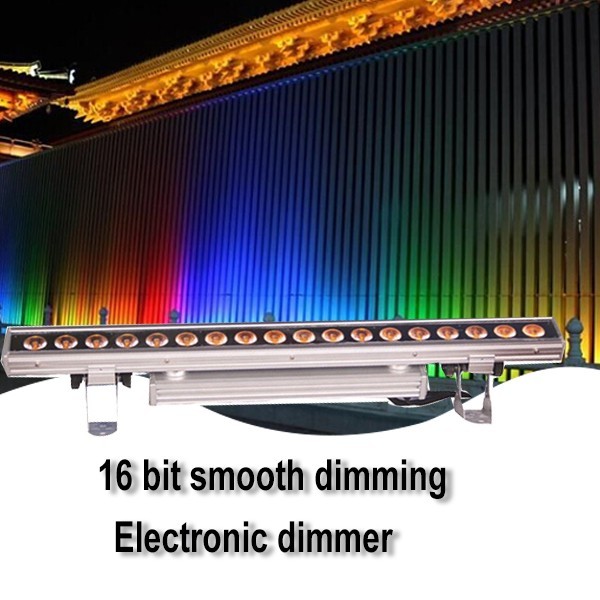

Dimming |
16-bit Smooth, 0-100% Linear |
|
Dimmer Mode |
1 Type Dimming Curve |
|
Strobe |
Electronic, 1-20 Flashes/Sec |
|
Pixel Control |
Individual Control for Each Color of Each LED |
|
Built-in Macros |
Color Changing, Fade In/Out, Auto Programs (Speed Adjustable) |
| Control & Programming |

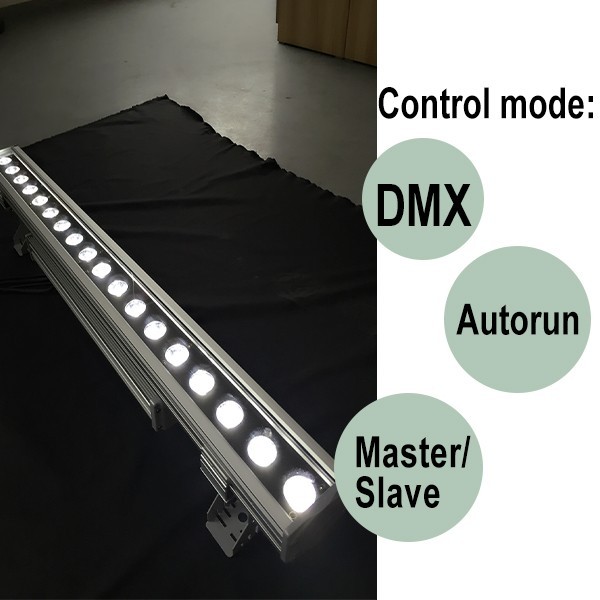

Control Modes |
DMX, Auto Run, Master/Slave |
|
DMX Channels |
9 / 23 / 72 CH |
|
Onboard Programming |
Yes (No External Controller Needed) |
|
Setting & Addressing |
4-digit LED Display |
|
DMX Connectors |
Waterproof 3-pin XLR (5-pin XLR optional) |
