Voltage
|
100V - 240V / 50 - 60Hz
|
|
Total Power (Bulb + Others)
|
500W
|
|

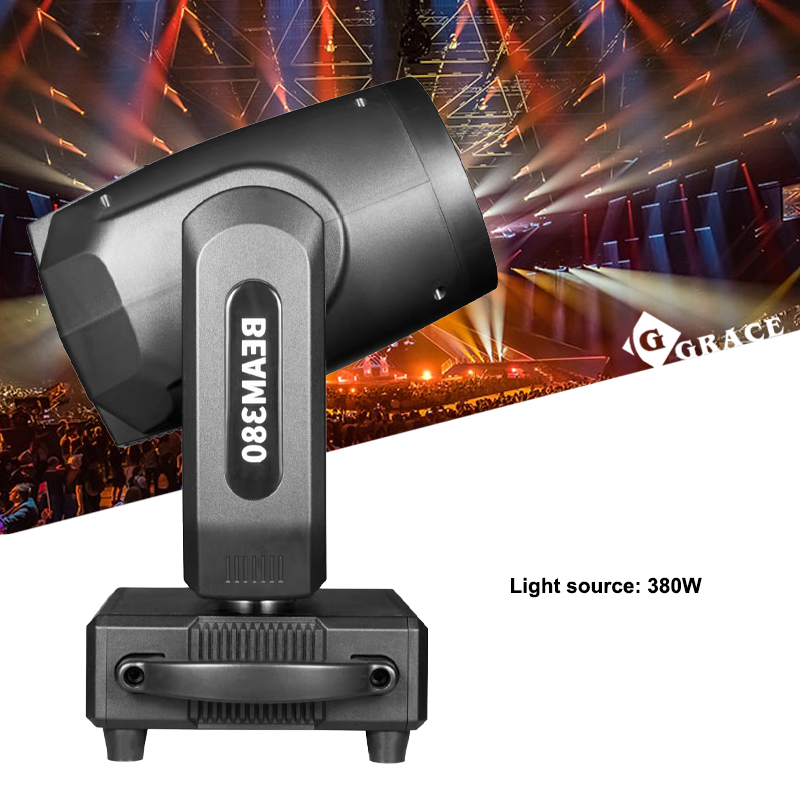

Light Source
|
380W Phoenix bulb
|
|
Color Temperature
|
7500K
|
|
Average Lifespan
|
1500 hours
|
|
Control Channels
|
DMX512 16 - channel, Master - Slave mode, Auto - run mode
|
|
Control Interface
|
LCD touch - screen control interface. Can control bulb on/off function, display lamp and bulb usage time
|
|
Scanning
|
Horizontal: 540°, Vertical: 270°
|
|

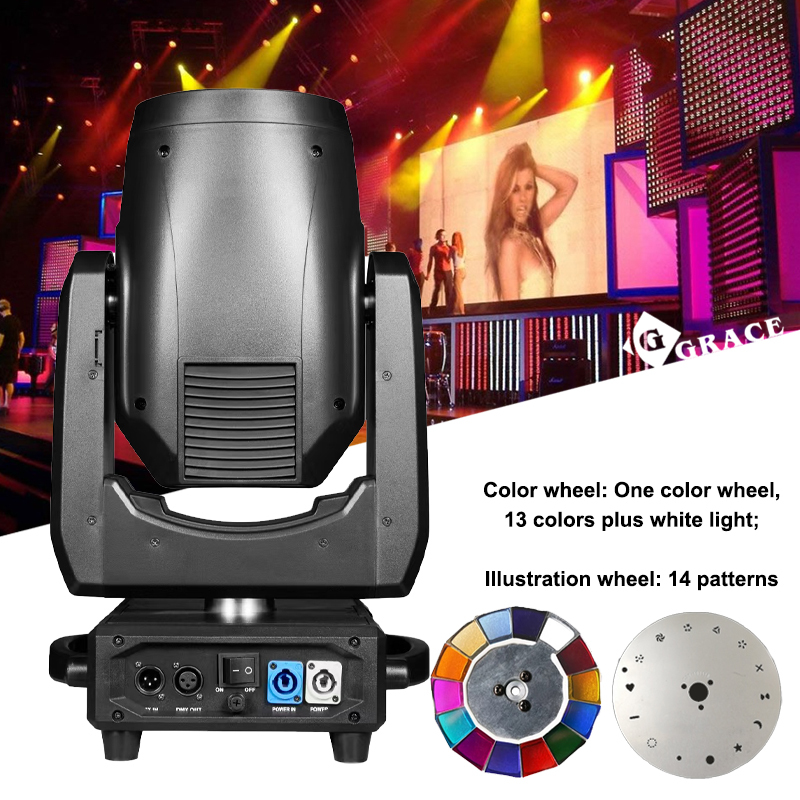

Color Disk
|
One color wheel with 13 colors plus white light
|
|
Pattern Wheel
|
14 patterns
|
|
Prisms
|
One rotatable 8 - prism and one 48 - prism. The two prisms can be superimposed, with additional rainbow and atomization effects
|
|
Strobe
|
Supports mechanical strobe and adjustable - speed strobe effects, supports strobe macro function. Strobe frequency is 15
times/second
|
|
Lens
|
High - precision optical lens, lens group optical system, electric focusing
|
|

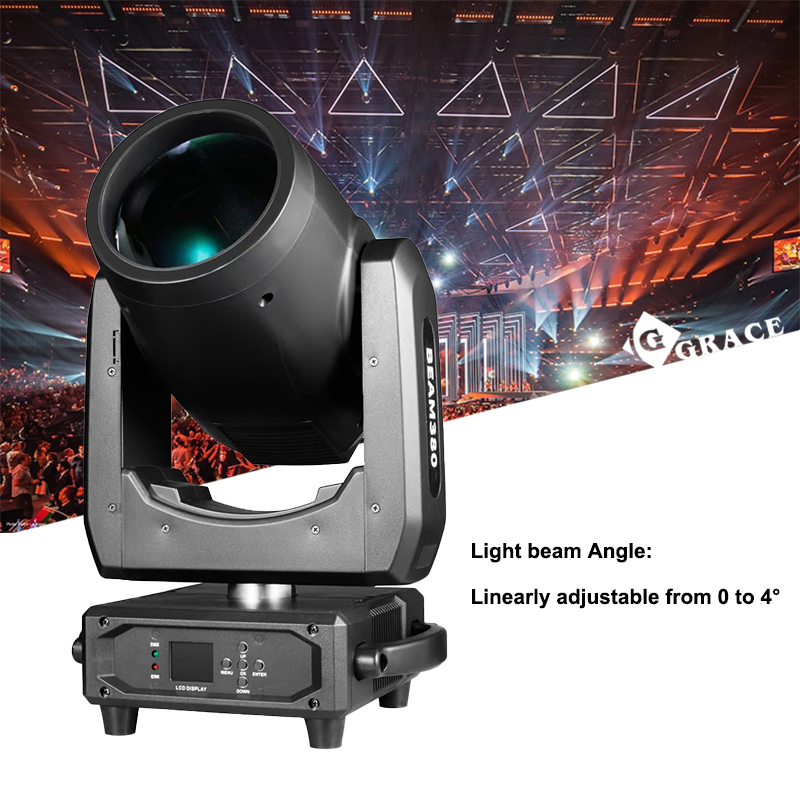

Beam Angle
|
0 - 4° linearly adjustable
|
|
Focusing
|
Linear electronic focusing
|
|
Dimming
|
0 - 100% linear adjustment
|
|

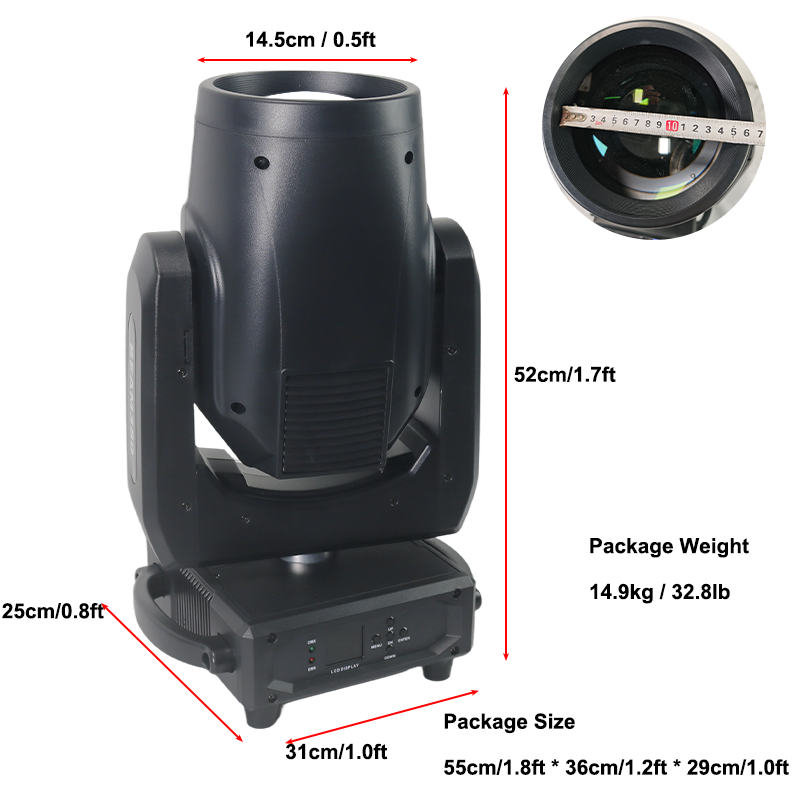

Lens Diameter
|
14.5cm / 0.5ft
|
|
Product Size
|
31cm/1.0ft * 25cm/0.8ft * 52cm/1.7ft
|
|
Package Size
|
55cm/1.8ft * 36cm/1.2ft * 29cm/1.0ft
|
|
Package Weight
|
14.9kg / 32.8lb
|
|
Additional Systems
|
Automatic horizontal and vertical positioning system. Can preset macro - command controller reset function, with automatic on -
off electronic monitoring and position error correction. Built - in cooling monitoring system, DMX channel level monitoring, and
automatic data transmission fault diagnosis system
|
|

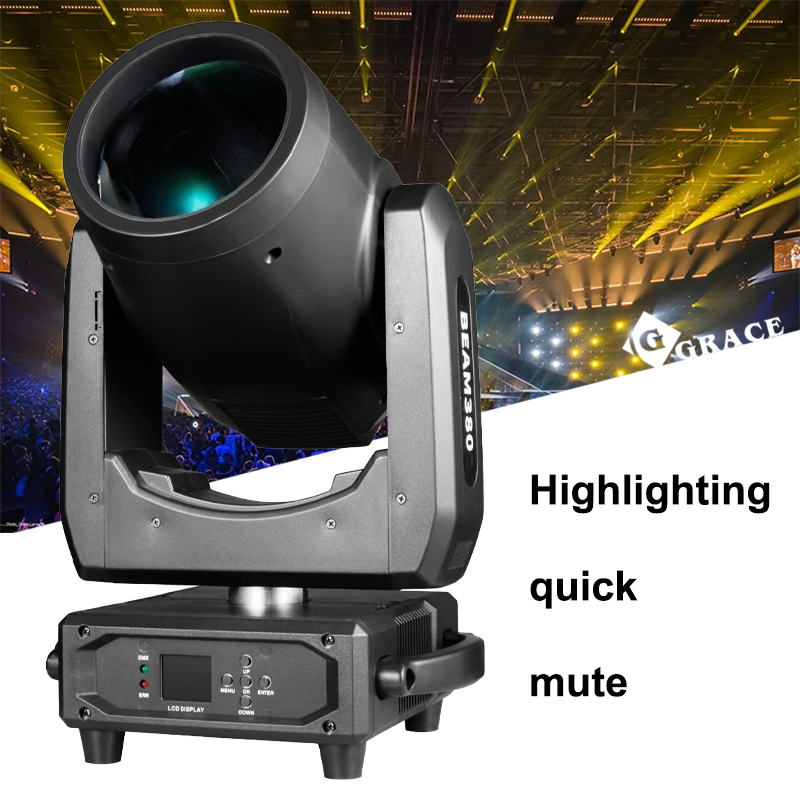

Characteristics
|
High - brightness, fast, quiet
|
