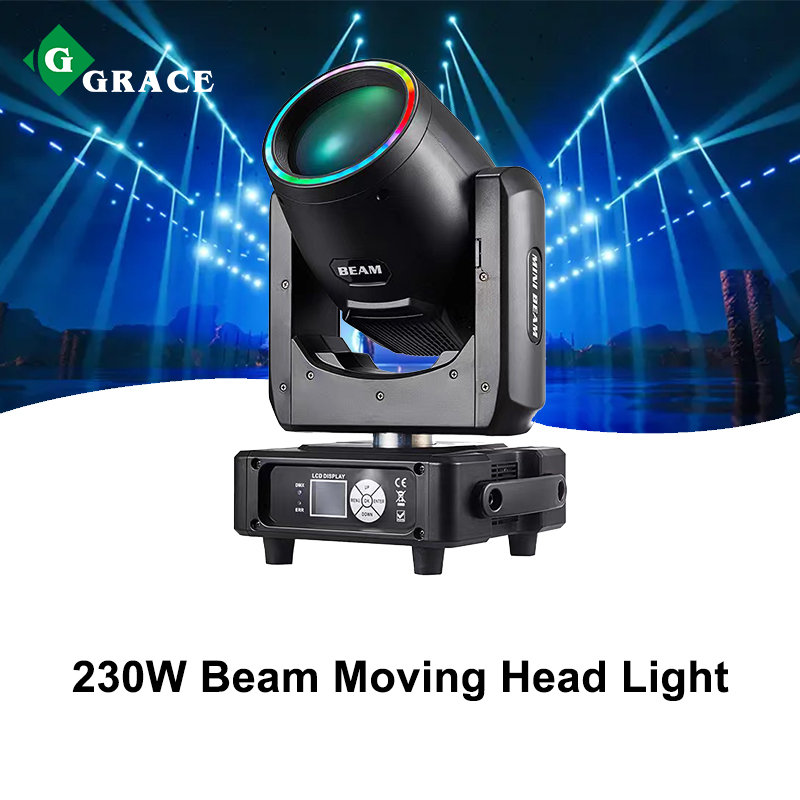

Power Input: 100-240V,50/60Hz
|
Power Dissipation:350W
|
IP level : IP20
|
Effect Wheel: Rotation eight prism, effect move , frost
|

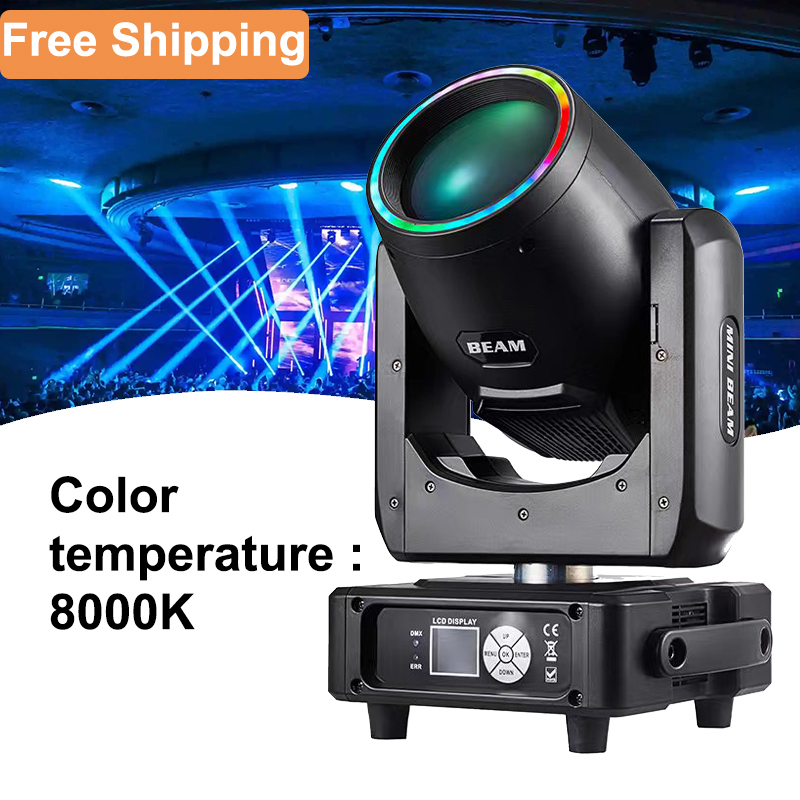

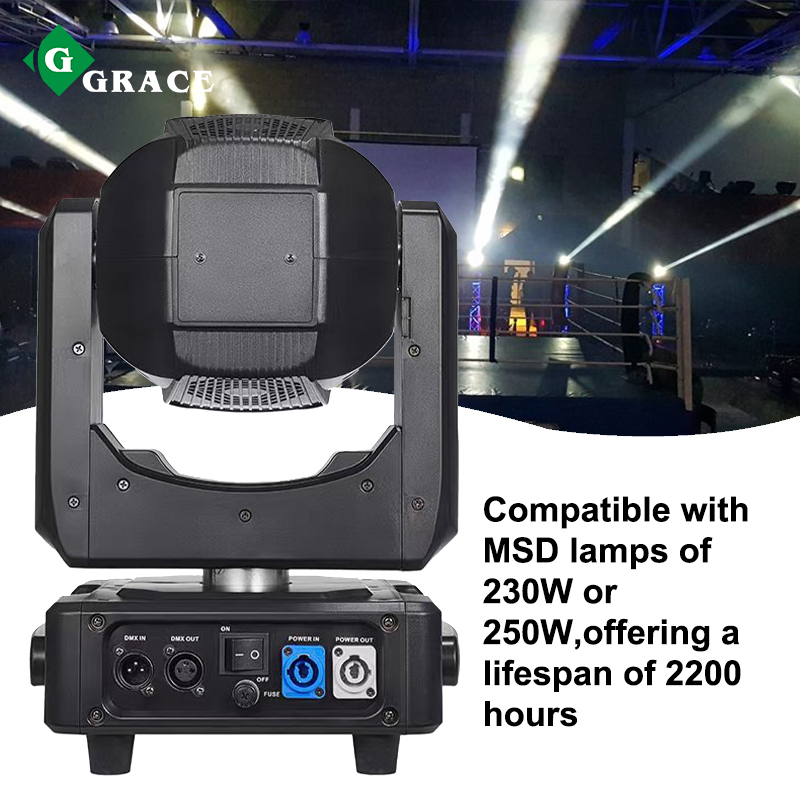

lamp: MSD 230w
|

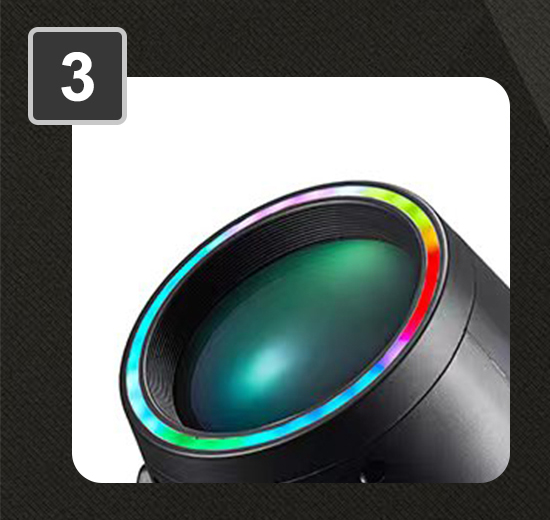

Lens peripheral auxiliary light Lens peripheral fill light: 27 0.5W RGB three-in-one LEDs
|

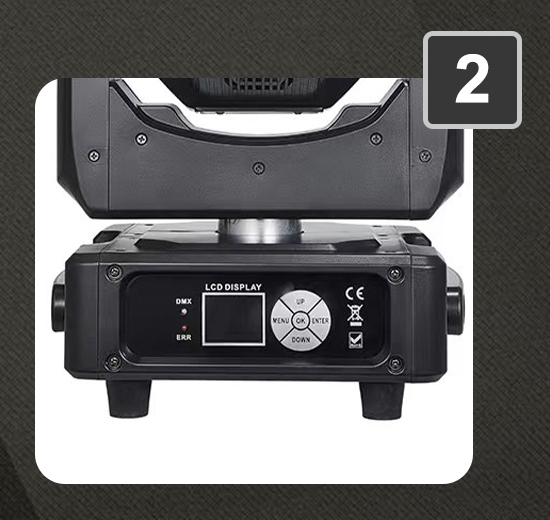

Control: Control switch bulb or manual
|
Ballast: Electronic ballast (380V input)
|
Strobe: Independent strobe channel, 1-10 times/second, built-in macro function
|
Dimming: independent dimming channel, 0-100 linear precise dimming
|
Atomization: independent linear atomization
|
Special effects:
8+16+24 (optional 8+16) prism effect, magnification effect Prism and any angle positioning, rotation, prism pattern combination built-in program, precise electric focus special effects: 8+16+24 (optional 8+16) prism effect, magnification effect Prism and arbitrary angle positioning, rotation, prism pattern combination built-in program, precise electric focus
|
X/Y axis movement:

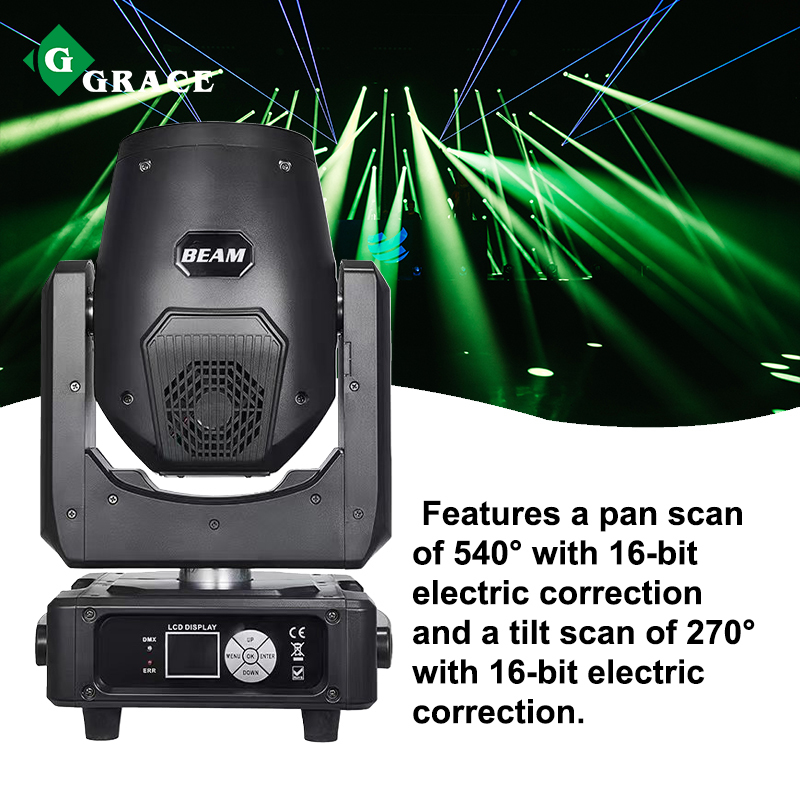

X-axis 540°, Y axis 280°, X/Y axis has automatic error correction function Independent X/Y axis speed adjustment, rotation fine-tuning function
|
X/Y axis resolution: 8/16 bit
|

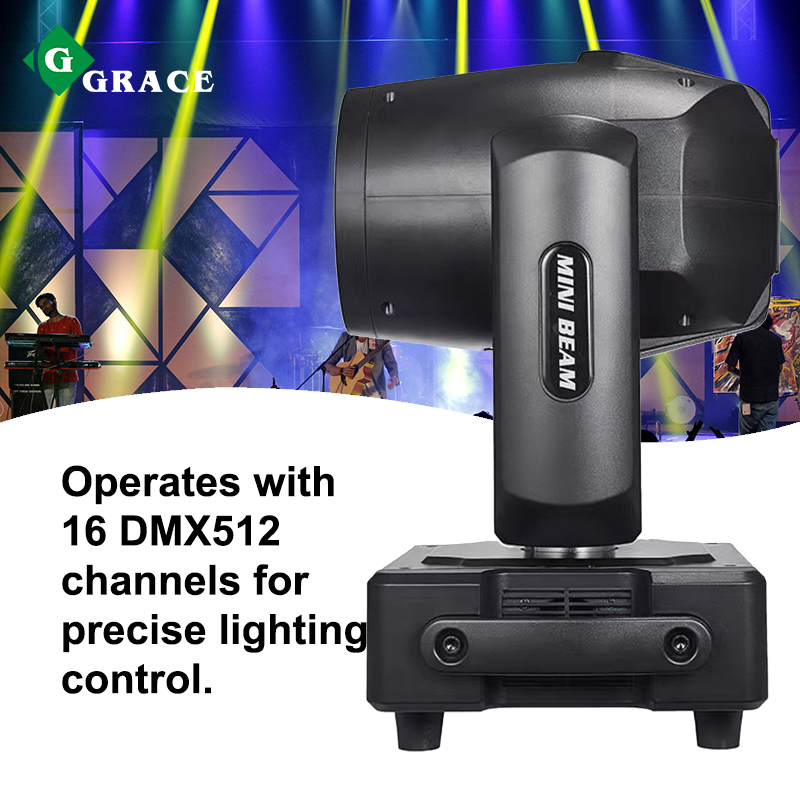

Control and programming: 18 standard DMX512 channels
|
|
l In order to guarantee the product’s life, please don’t put it in the damp places or even the environment over 60degress.
|
l Always mount this unit in a safe and stable matter.
|
l Install or dismantle should be operated by a professional engineer.
|
l Using a lamp, the change rate of power voltage should be within±10%, If the voltage is too high,it will shorten the light’s life; If it’s not enough, will influence the effect.
|
Please restart it 20 minutes later after turning off the light , until full cooling. Frequent switching l will reduce the life span of lamps and bulbs; intermittent using will improve the life of bulbs and lamps.
|
l In order to make sure the product is used well, please read the Manual carefully.
|
