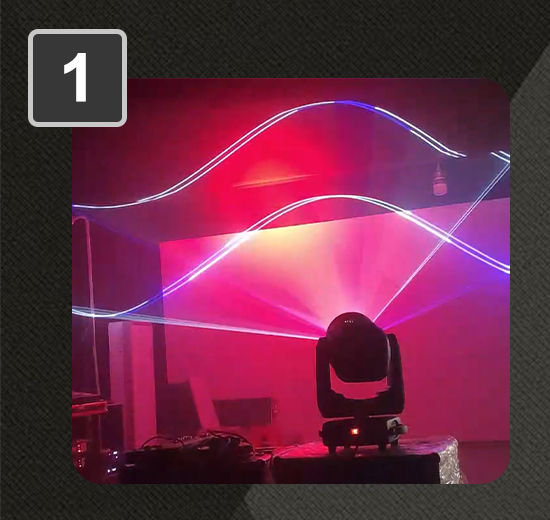

Product name
|

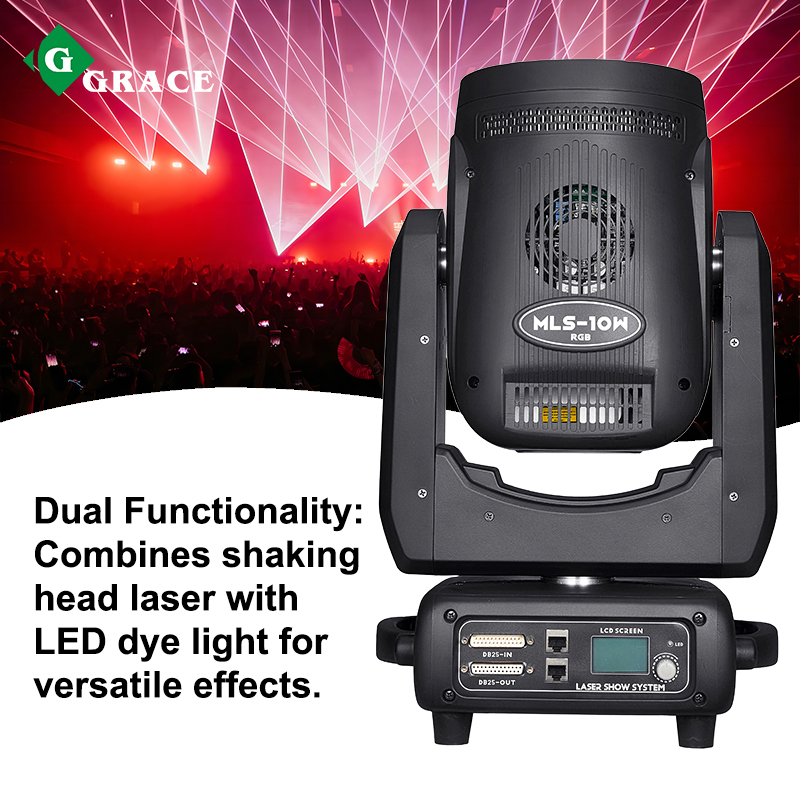

Shaking head laser +LED dye light
|
|||
|
Rated voltage:
|
AC110-220V
|
|||
|
Rated frequency:
|
50 ~ 60Hz
|
|||
|
Rated power:
|
300W
|
|||
|
Laser color:
|
RGB full color
|
|||
|
Laser power:
|
RGB 5W/8W/10W
|
|||
|
Laser light source:
|
R3w/638nm G3w/525nm B4w/447nm
|
|||
|
Laser pattern:
|
256 laser animation pattern
|
|||
|

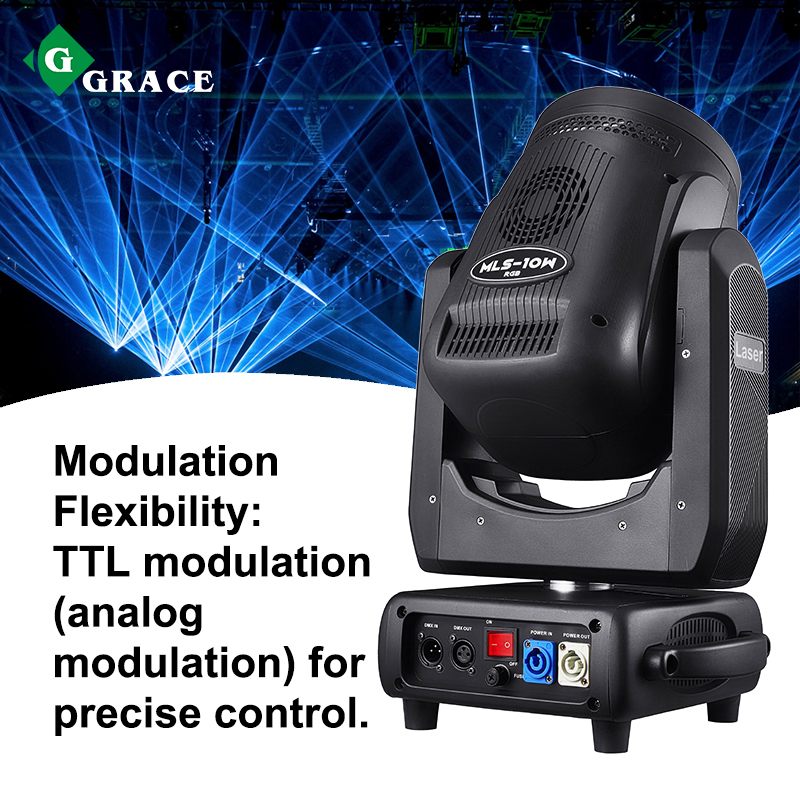

Modulation signal:
|
TTL modulation (analog modulation)
|
|||
|

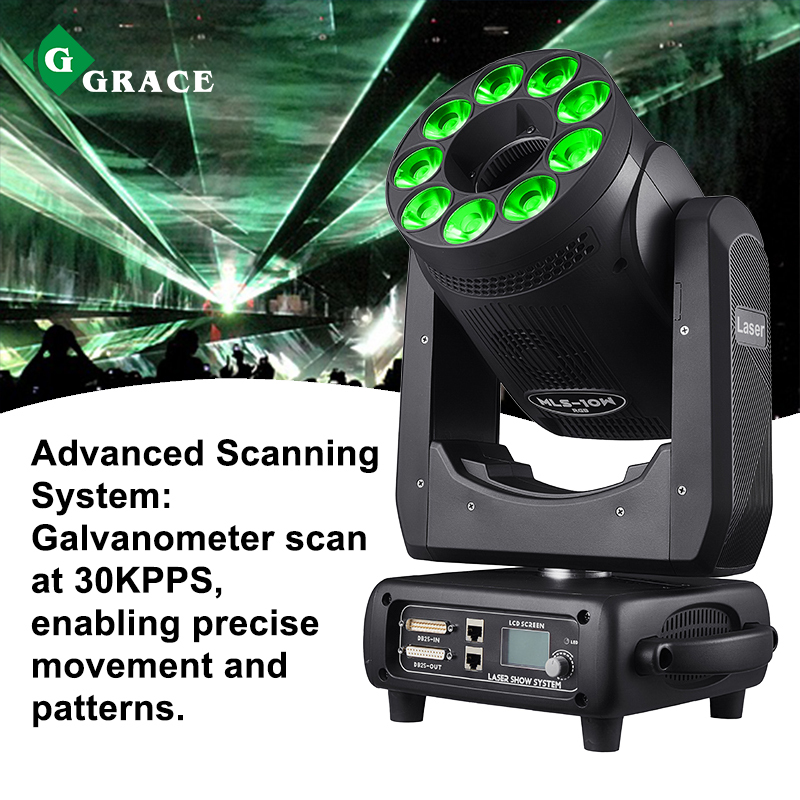

Scanning system:
|
galvanometer scan 30KPPS
|
|||
|
Scanning Angle:
|
plus or minus 20 degrees
|
|||
|
Stepper motor:
|
two phase 57 motor 2
|
|||
|
Horizontal:
|
540 degrees Vertical: 270 degrees
|
|||
|

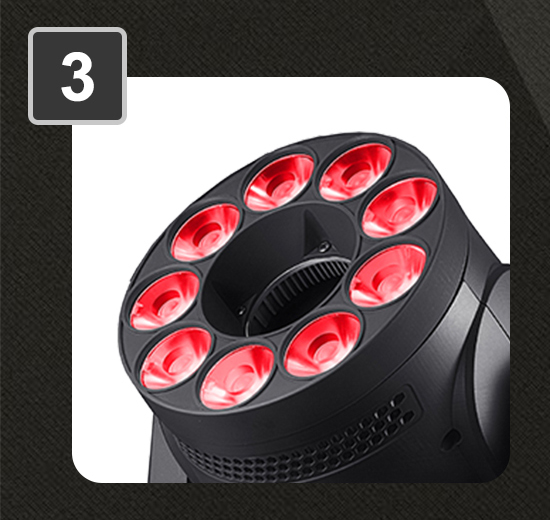

LED dyeing configuration:
|
9 pellets 20W four-in-one high brightness LED lamp beads
|
|||
|
Control mode:
|
DMX512, voice control, self-walking, computer ILDA interface, cable Art-Net
|
|||
|
Control channels:
|
30 DMX512 control channels
|
|||
|

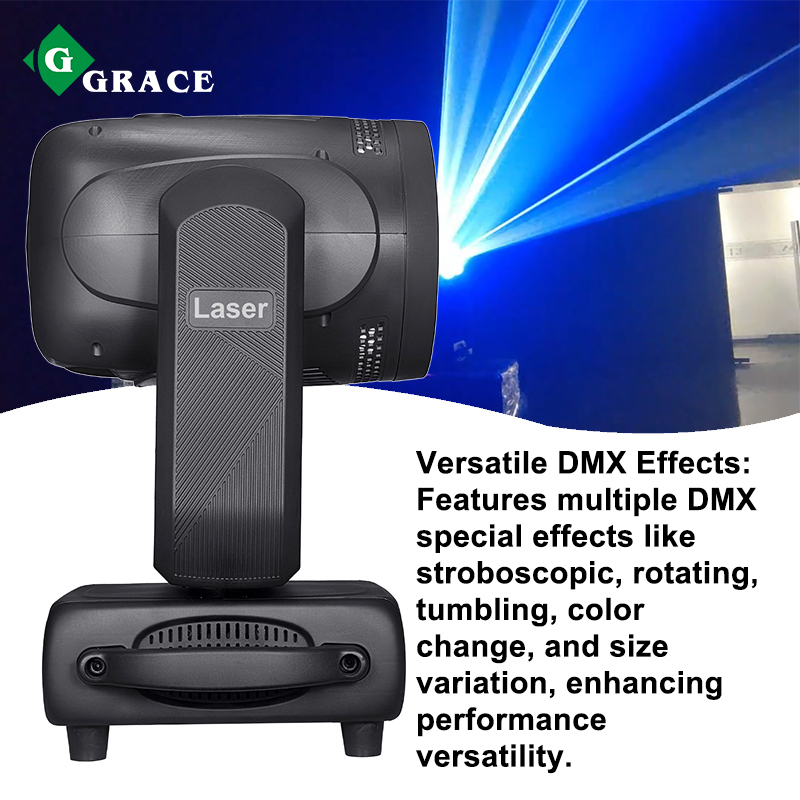

DMX special effects:
|
single pattern mode can be broken pen, stroboscopic, rotating, moving, tumbling, subgraph, gradually drawing, color change, change the size, and other functions.
|
|||
|
Function:
|
Pangolin QSFB3/FB4 or fire Phoenix laser software control.ilda control uses an automatic electronic transfer switch with scanning system error protection and laser light protection.
|
|||
|
Notice for use:
|
The ambient temperature is controlled at 0~35 ° C, and the dry and dust-less environment can reduce the laser power attenuation and extend the life of the lamp
|
|||
|
Suitable place:
|
disco bar, bar, nightclub, concert, advertising promotion, etc
|
|||
|
Cooling system:
|
fan forced cooling
|
|||
|
HOW TO CHOOSE: |
DISTANCE |
APPLICATIONS |
APPLICATIONS |
|---|---|---|---|
|
3W~6W FULL COLOR LASER LIGHT |
<100m² |
<15m |
Smal KTV,bar |
|
6W~10W FULL COLOR LASER LIGHT |
<500m² |
≈30m |
Large bars,banquet halls,concerts.... |
|
20W~30W FULL COLOR LASER LIGHT |
Any Area |
200~300m |
Large-scale concerts, outdoor activities |
|
30W WATERPROOF FULL COLOR/SINGLE GREEN LASER LIGHT |
Any Area |
Any Distance |
Outdoor landmarks, scenic spot lightng |
 |

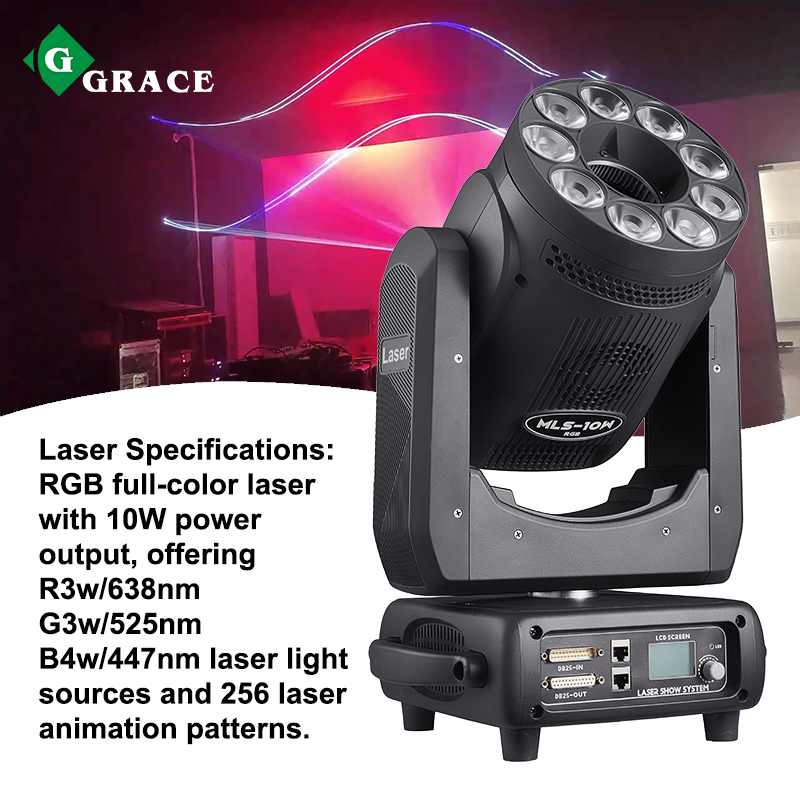

Impressive Laser Specifications: RGB full-color laser with 10W power output, offering R3w/638nm G3w/525nm B4w/447nm laser light sources and 256 laser animation patterns. |
| Wide Scanning Range: Horizontal 540 degrees and Vertical 270 degrees for expansive coverage. |  |
 |
High-Brightness LED Configuration: Equipped with 9 20W four-in-one high-brightness LED lamp beads for vibrant lighting effects. |
|
Frequently Asked Questions |
|
What is a laser lighting show? |
| A laser lighting show is a live visual performance that combines lasers, music, and lighting to create an immersive experience. Laser light shows are typically used at concerts, festivals, and other events to create a visually stimulating atmosphere. They involve the use of laser beams, projections, and special effects to create an array of colorful and intricate visuals. |
What laser diode are you using? |
|
We will use imported or made-in-China. Can be customized according to customer requirements. |
|
What is the price of your laser lighting? |
|
We can customize laser lighting with different prices according to the customers |
