Power Supply
|
AC100-240V, 50/60Hz
|
|
Total Power
|
600W
|
|

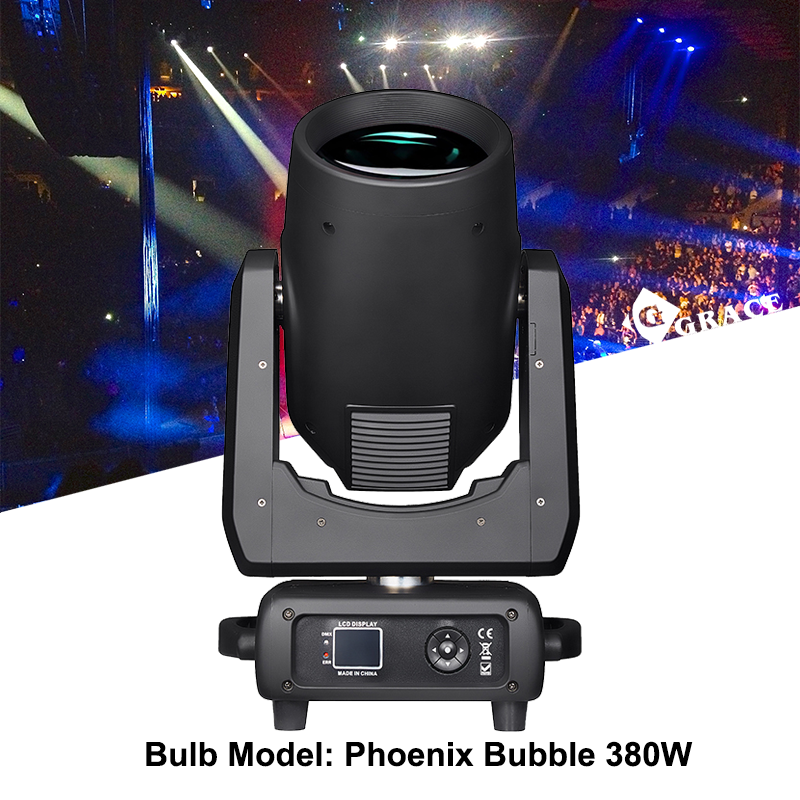

Bulb Model
|
Phoenix Bubble 380W
|
|
Luminous Flux
|
7950lm
|
|
Color Temperature
|
8500K
|
|
Ballast
|
Electronic Inductive Ballast
|
|
Control Mode
|
DMX512/WMDMX/self-propelled
|
|
Channels
|
16 channels
|
|
Display
|
Beautiful dot matrix display with four light touch switches, capable of reversing 180° display
|
|

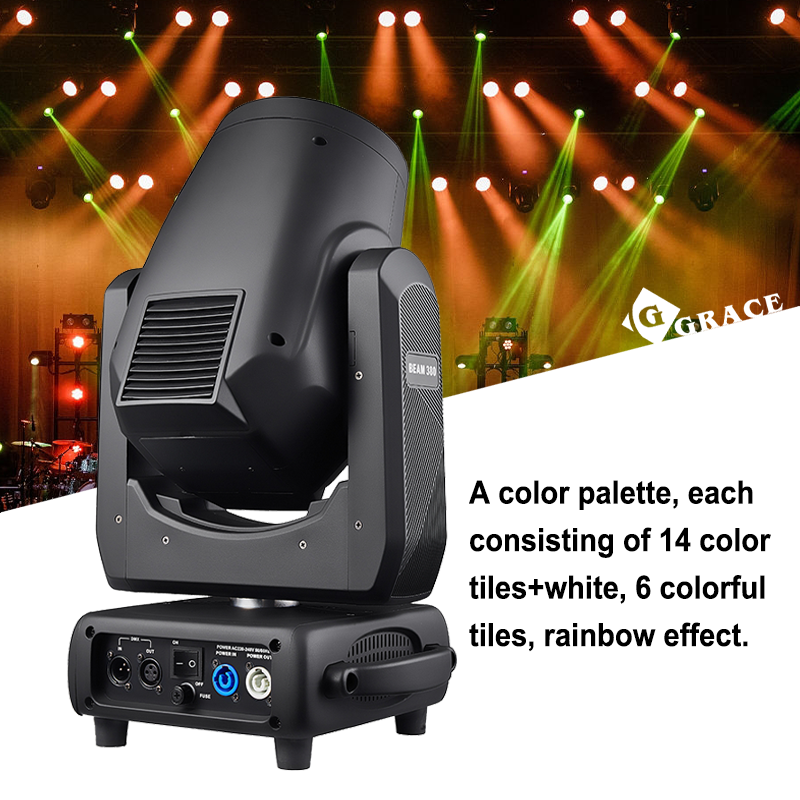

Color Palette
|
A color palette, each consisting of 14 color tiles+white, 6 colorful tiles, rainbow effect
|
|

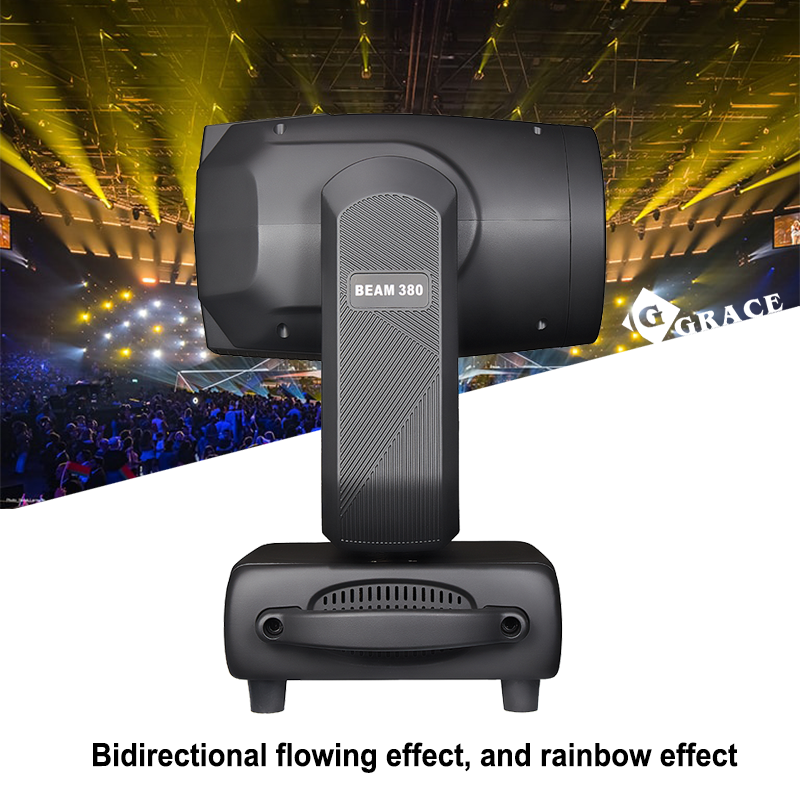

Rotation Speed
|
Adjustable, bidirectional flowing effect, and rainbow effect
|
|
Pattern Disk
|
Fixed pattern disk, 10 fixed patterns+4 glass images (14 pattern effects+white light)
|
|
Prism
|
48 honeycomb prisms, 12 prisms, double prisms can be stacked and rotate independently in both directions, with adjustable rotation
speed
|
|

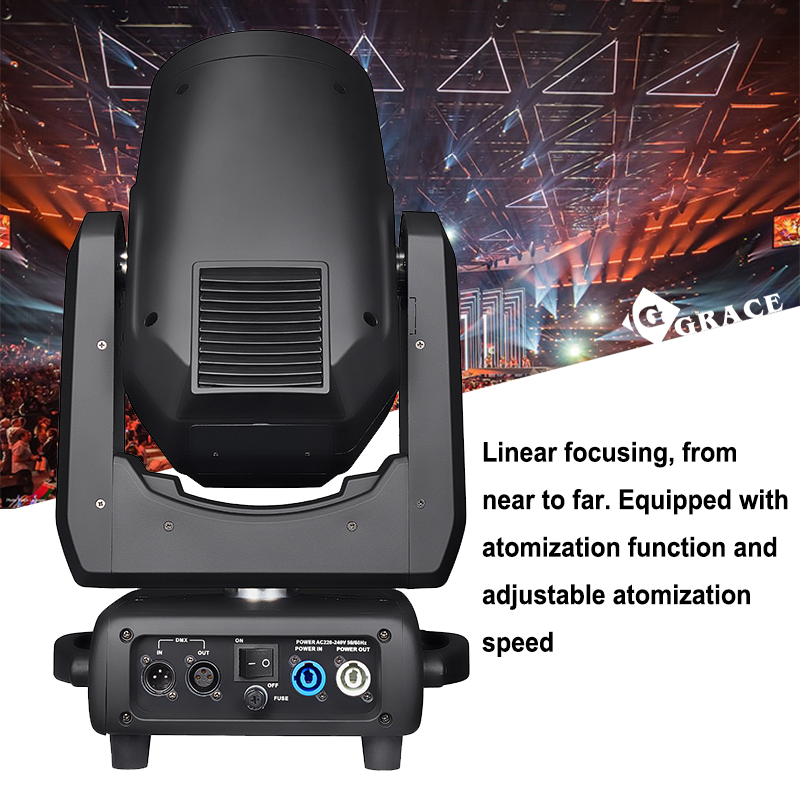

Focusing
|
Linear focusing, from near to far. Equipped with atomization function and adjustable atomization speed
|
|
Dimming
|
0-100% mechanical dimming, supporting mechanical strobe and adjustable strobe effects, supporting strobe macro function,
mechanical strobe is 1-12 F.P.S.
|
|
Photoelectric Reset System
|
Automatically retrieves the reset in case of accidental misoperation
|
|
Pan
|
Horizontal 540°, 8Bit/16Bit fine-tuned
|
|
Tilt
|
Vertical 270°, 8Bit/16Bit fine-tuned
|
|
Error Correction
|
Equipped with horizontal and vertical fine automatic error correction functions
|
|
Overheat Protection
|
Yes
|
|
IP Protection Level
|
IP20
|
|
Power Supply Type
|
AC/DC switch power supply
|
|
Display Screen
|
LCD display screen
|
|

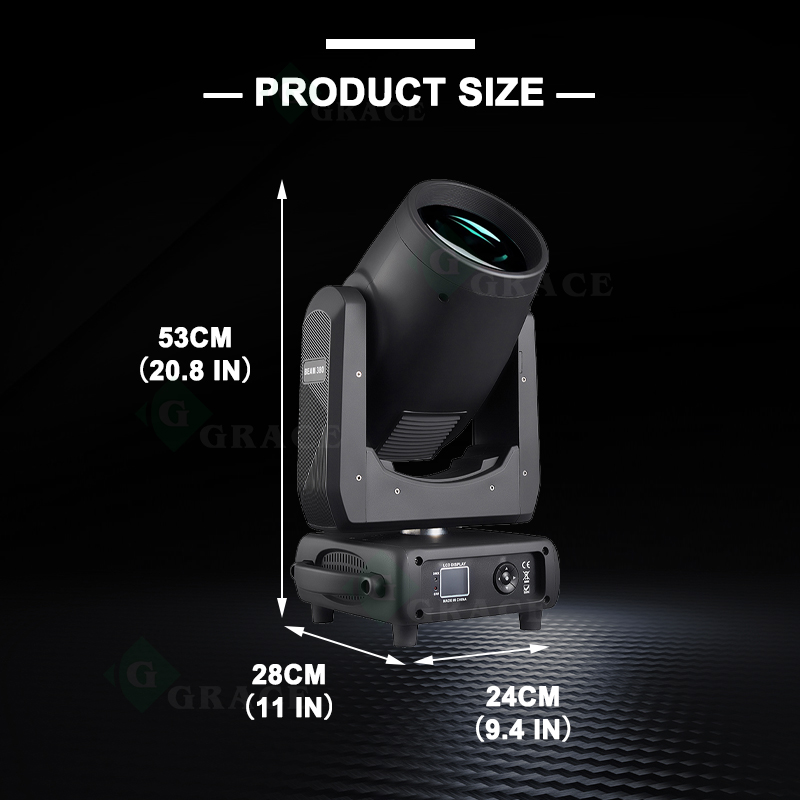

Size
|
300 x 240 x 530mm (11.81 x 9.45 x 20.87 inches)
|
|
Net Weight
|
12Kg (26.46 lbs)
|
|
Packaging Size
|
56×38 ×44cm (22.05 x 14.96 x 17.32 inches)
|
|
Gross Weight
|
15Kg (33.07 lbs)
|
