| Specification | Details |
|---|---|
| Input Voltage: | AC 100 - 240V, 50/60Hz |

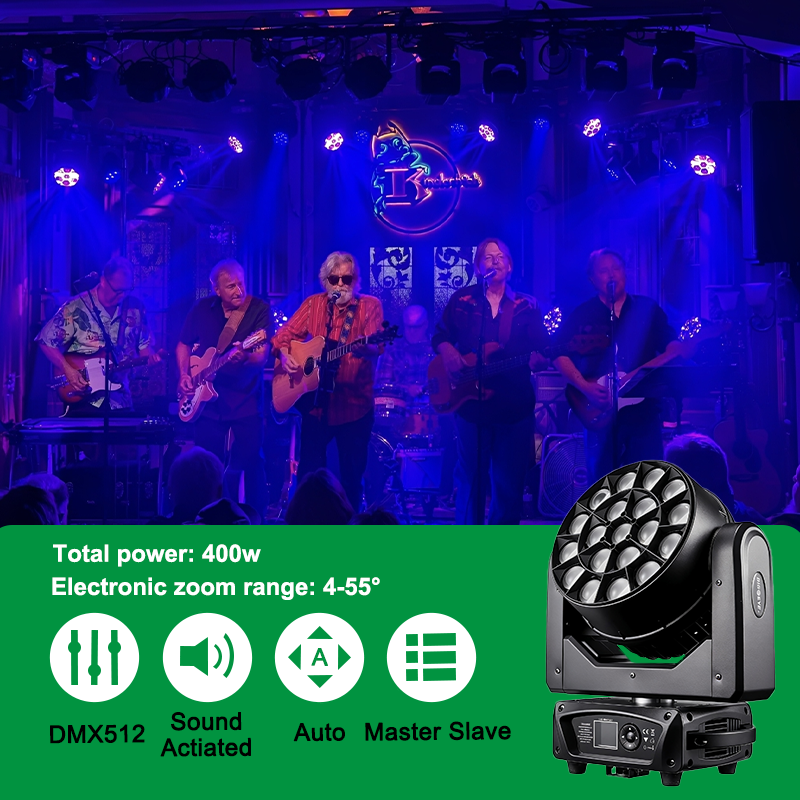

| Total Power: | 400W |

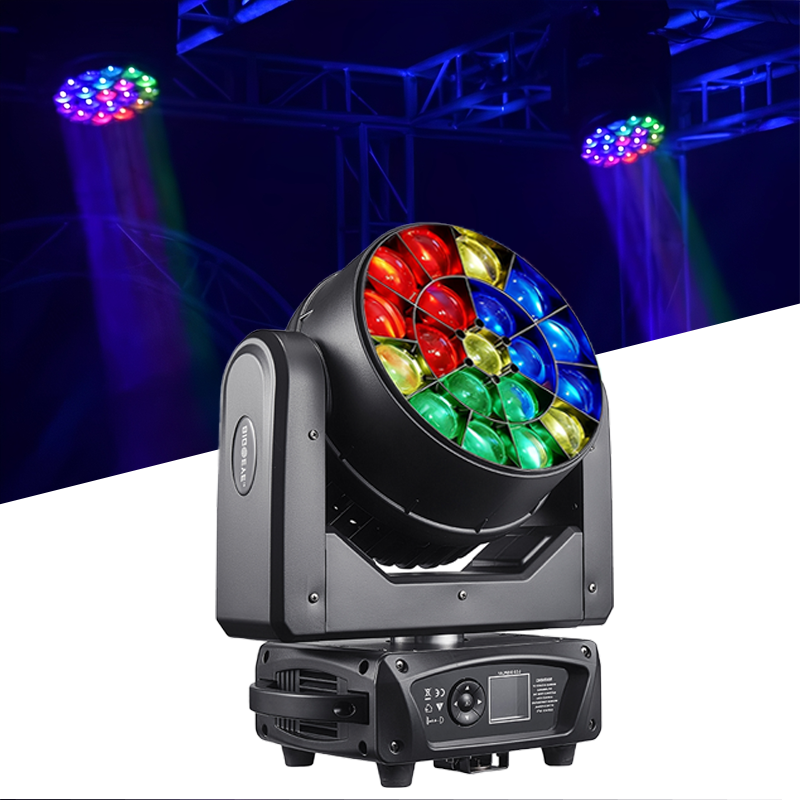

| Light Source: | 19x15W RGBW 4-in-1 LED |

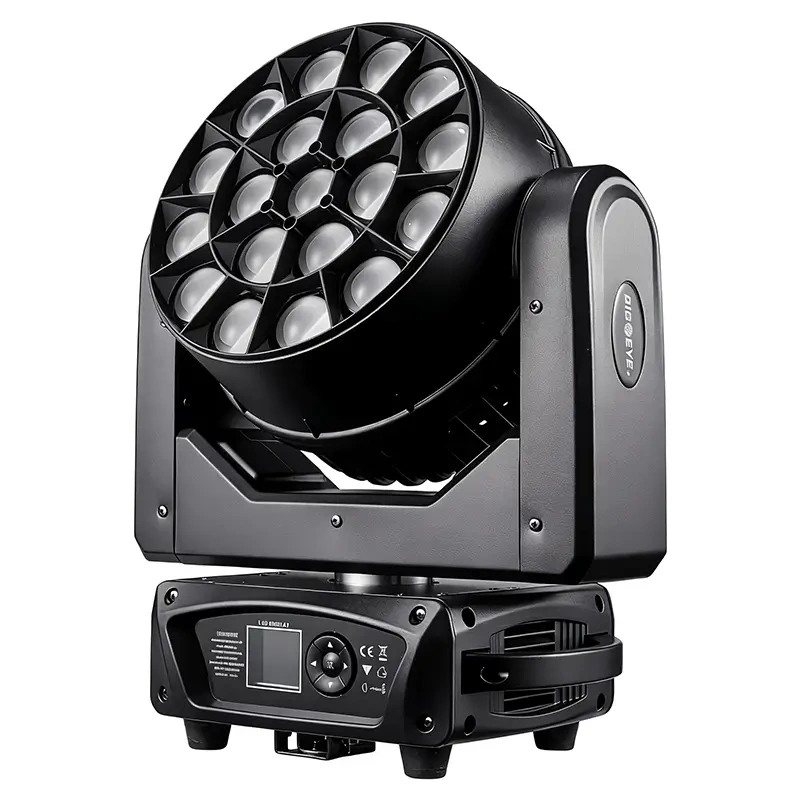

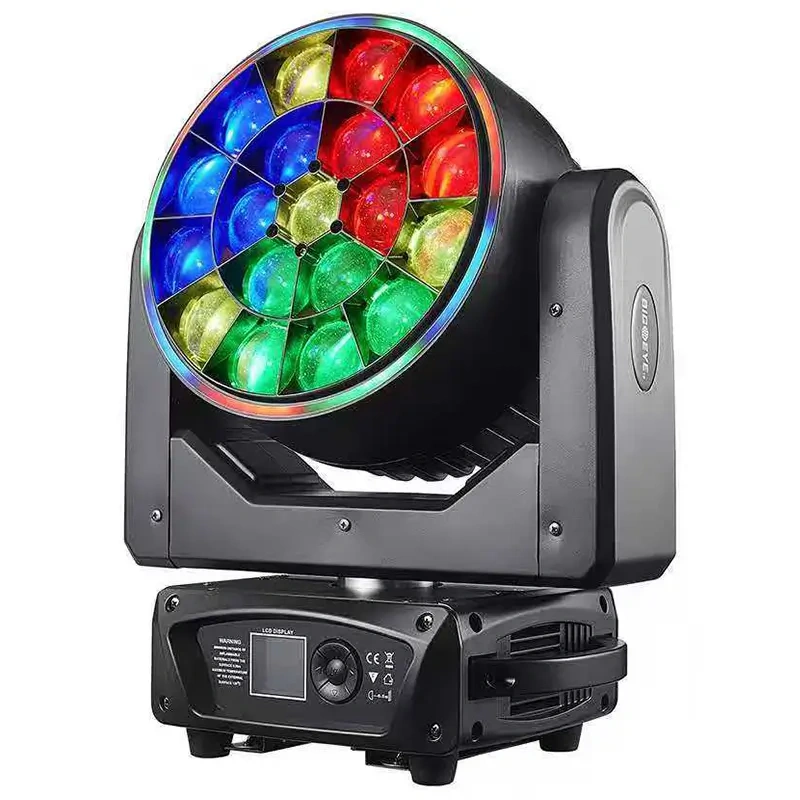

| Product Type: | 19x15W RGBW 4in1 Bee Eye Moving Head Light |
| Zoom Range: | 4° - 55° (Linear Electronic Zoom) |
| DMX Channels: | 21/23/35/78/92/97/99 CH |

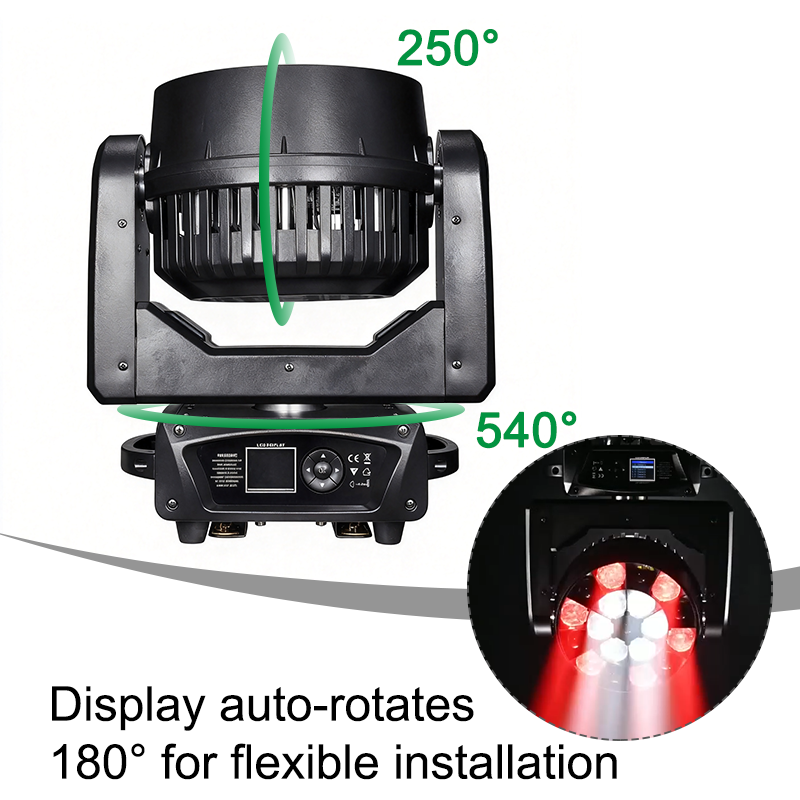

| Movement: | Pan: 540°, Tilt: 270° (16-bit) |
| Control Mode: | DMX512, Auto, Sound, Master/Slave, RDM |
| Dimming / Strobe: | 0-100% Linear Dimming; 1-25 fps Mechanical & Speed Adjustable Strobe |
| Special Effects: | Individual Pixel Control, Bidirectional Lens Rotation, Vortex, Kaleidoscope, CTO |

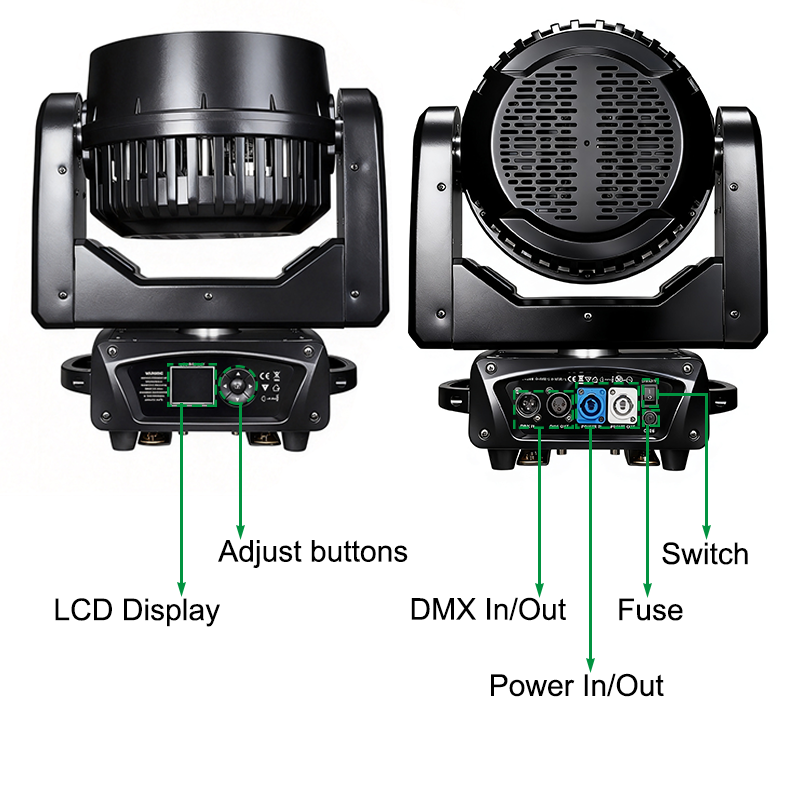

| Display: | High-definition LCD Color Screen (Bilingual) |
| Cooling / Noise: | Ultra-quiet Cooling Fan System |
| IP Rating: | IP20 (Indoor Stage Environment) |

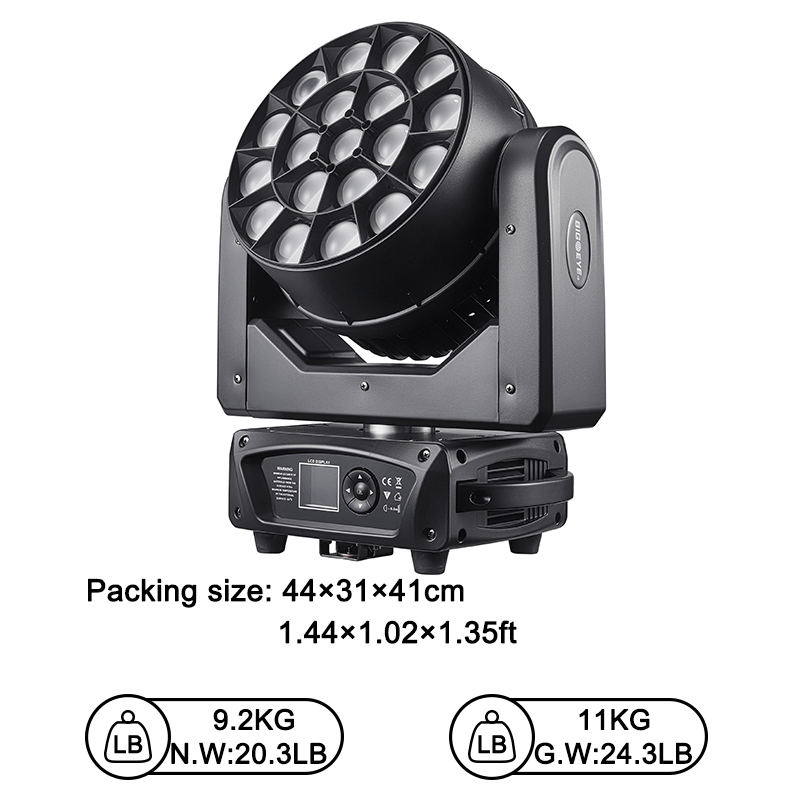

| Net / Gross Weight: | 9.2kg / 20.3lb; 11kg / 24.3lb |
| Packing (Carton): | 44cm/1.4ft x 31cm/1.0ft x 41cm/1.3ft (1in1); 65cm/2.1ft x 47cm/1.5ft x 43cm/1.4ft (2in1) |
| Packing (Case): | 66cm/2.2ft x 39cm/1.3ft x 61.5cm/2.0ft (2in1); 85.5cm/2.8ft x 58.5cm/1.9ft x 61cm/2.0ft (4in1) |
| Parameter | Specification |
|---|---|
| Voltage: | AC 90-240V, 50/60Hz |
| Power Consumption: | 260W |
| LED Source: | 19x15W RGBW + 63x0.12W SMD Ring |
| Beam Angle: | 4°-60° (Linear Electronic Zoom) |
| Channel Modes: | 28/30/42/85/99/104/106 CH |
| Pan: | 540° (16-bit) |
| Tilt: | 250° (16-bit) |
| Control Protocol: | DMX512, Auto, Sound, ArtNet (Optional) |
| Dimming: | 0-100% Linear Dimming |
| Strobe: | 1-25 fps Mechanical & Speed Adjustable Strobe |
| Pixel Control: | Individual Pixel Control |
| Lens Function: | Bidirectional Lens Rotation |
| Special Effects: | Vortex, Kaleidoscope, CTO |
| Display: | High-definition LCD Color Screen (Bilingual) |
| Cooling System: | Ultra-quiet Cooling Fan System |
| Protection Rating: | IP20 (Indoor Stage Environment) |
| Net Weight: | 9.2kg / 20.3lb |
| Gross Weight: | 11kg / 24.3lb |
| Package Size (1in1): | 44cm x 31cm x 41cm / 1.44ft x 1.02ft x 1.35ft |
| Package Size (2in1): | 65cm x 47cm x 43cm / 2.13ft x 1.54ft x 1.41ft |
| Package Size (2in1): | 66cm x 39cm x 61.5cm / 2.17ft x 1.28ft x 2.02ft |
| Package Size (4in1): | 85.5cm x 58.5cm x 61cm / 2.81ft x 1.92ft x 2.00ft |
