This is a professional LED Fixed Lens Electric zoom Profile Spot Light. It uses high CRI and high power LED integrated lamp (COB lamp) as the light emitting ,adopting the United State ETC optical lenses. This light is saving energy and protecting environment, pure color temperature, it is a very suitable substitute of the traditional 750 profile light.
feature1.High light efficiency, good color rendering, low glare value;
2.Long lifespan, energy conservation, environmental protection;
3.Linear dimmer by DMX signal, smoothly 0-100%;
4.Silent, owns good cooling system by copper radiation and fan(within 45db);
5.High CRI more than 95Ra.
Light Output1.Luminous flux: 25200 Lm
2. Illuminance: 25200 Lux (2m 3200K)
3. Optimal projection distance: 4-16m
Control1.Control mode: DMX-512; RDM; Demo; Master/slave
2.DMX channel: 8CH
3.Display of control panel: digital LCD display
4.DMX In/Out: 3P-XLR DMX In/Out, DMX 512
5.beam : electric zoom (19-50 degree)
power:420W lower power and bright light
GL-EZP400-RGBAL Electric zoom 200W white color led ellipsoidal
1.Power input: POWER CON power input/output, AC100-240V50-60HZ
2.signal input/output: 3P-XLP input/output, DMX512 signal
3.Flicker Free (refresh rate > 1000 Hz)
4. Driving mode: constant current
5. Power consumption: maximum 220W
6.The original imported 400W, COB integrated light source LED,
7.Chromaticity index: CRI > 95
8.Control: RDM, DMX512 control or master-slave synchronization
9.Channel: 8 DMX channel, 16 Bit dimming, 4 dimming curves

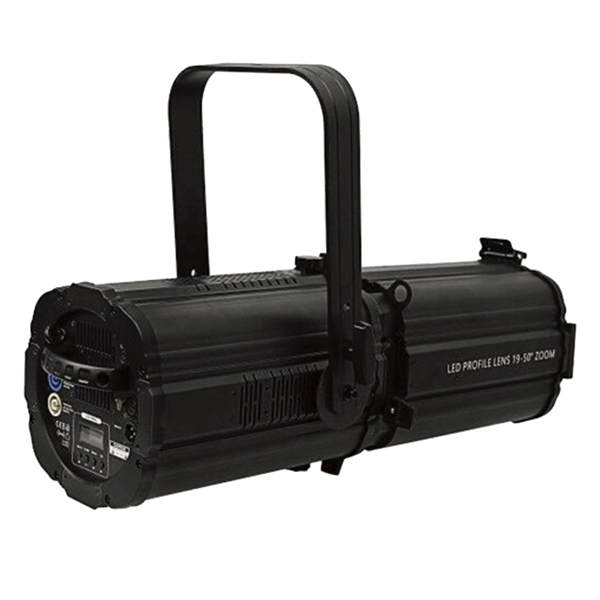

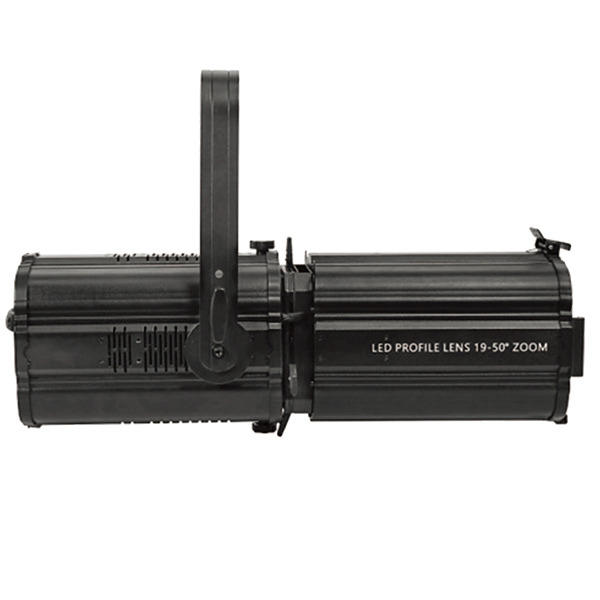

front of zoomlight
* Beam angle:electric zoom 19-50 degrees
* Electronic dimmer: 0-100% linear dimmer.
* Electronic stroboscopic: 1-20 seconds flicker once.
* The thermal management system ensures the long life of the LED.
* Control panel: LCD alphanumeric
* Cooling system: copper tube radiator + silent fan.
* DMX data input/output: two XLR 3 needles (5 needles customizable)
* Shell Material: Aluminum Alloy, Waterproof Grade: IP20
* Working temperature: LED central temperature > 40
* Weight: 12.8 kg
* Size: 66*34*21.3CM

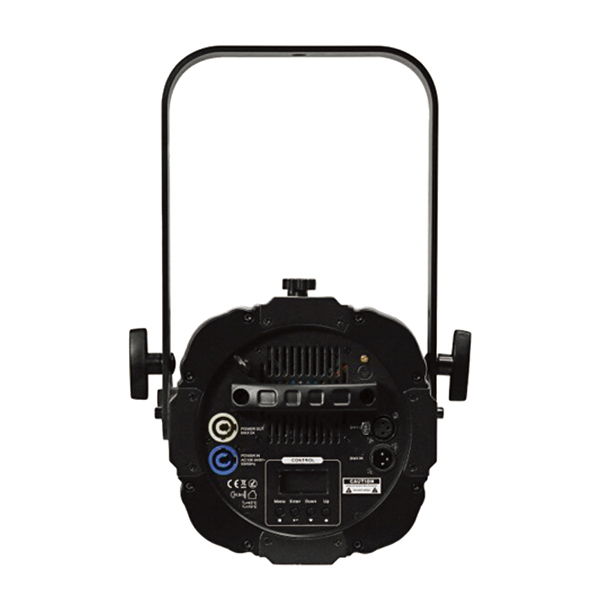

back of zoom
