| Model: |

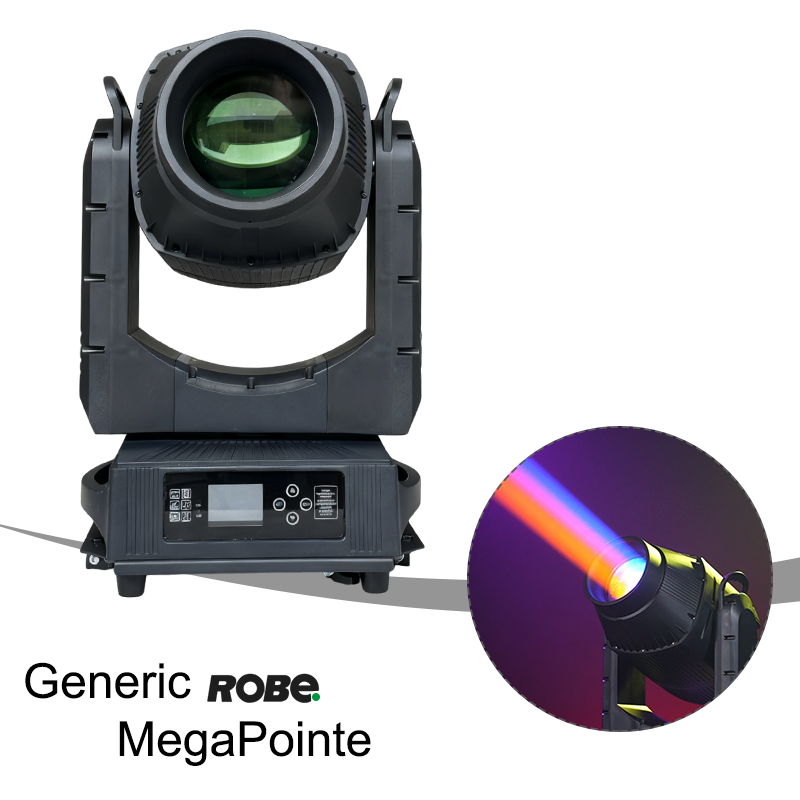

IP66 MegaPointe LED 580W BSW CMY Moving Head |
| Light Source: |
400W High-Brightness White LED Module |
| Rated Power: |
650W |
| Input Voltage: |
AC 100V–240V, 50/60Hz |

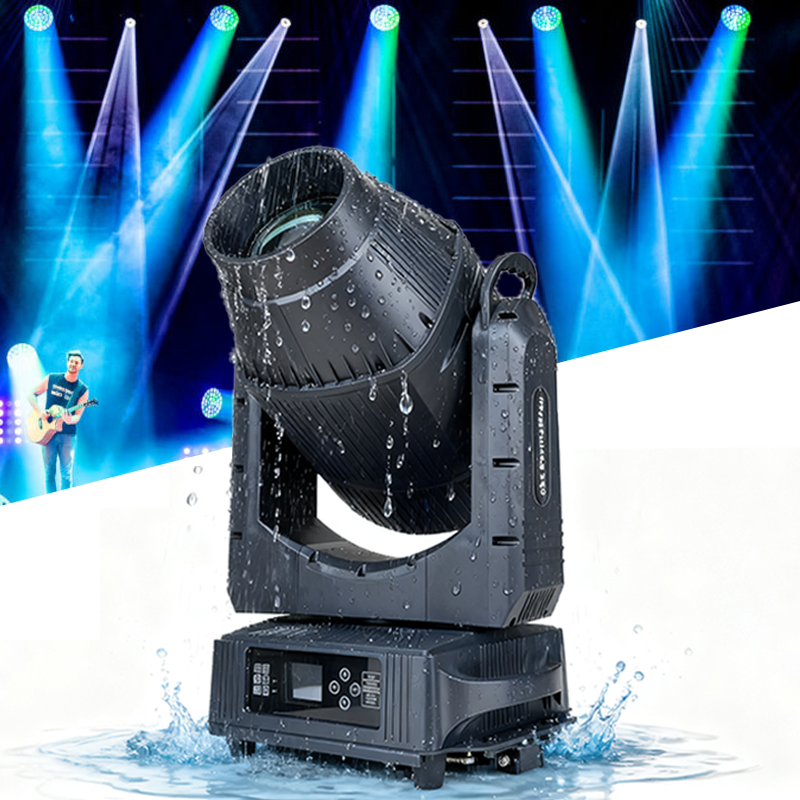

| IP Protection Rating: |
IP66 (Waterproof & Dustproof, IEC 60529) |
| DMX Channels: |
39CH/34CH (Selectable) |
| Color System: |
CMY Linear Color Mixing |

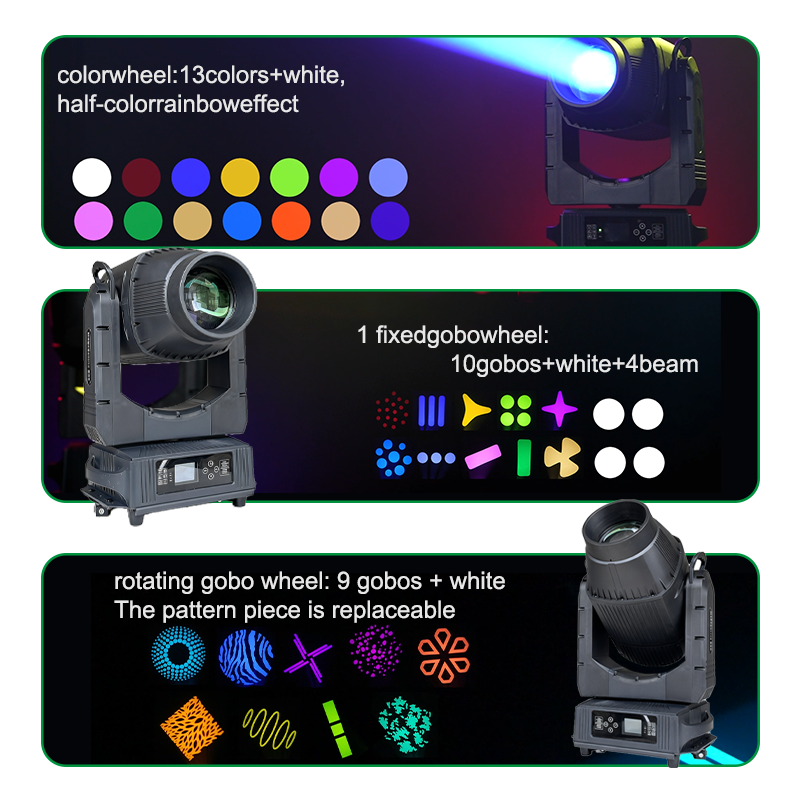

| Color Wheel: |
13 Colors + Open White |
| Static Gobo Wheel: |
10 Gobos + Open + 4 Beam Effects |
| Rotating Gobo Wheel: |
9 Gobos + Open (Disc Dia. 15mm / Inner Dia. 10mm) |
| Animation Wheel: |
1 Rotating Animation Effect Wheel |
| Prism System: |
6-Facet Prism (Bi-Directional Rotation) |
| Frost Lens: |
Independent Soft-Focus Frost Lens |
| Zoom / Focus: |
2°–35° Motorized Zoom & DMX Linear Focus |
| Dimming / Strobe: |
0–100% Linear Dimming; electronic Strobe & Macro |

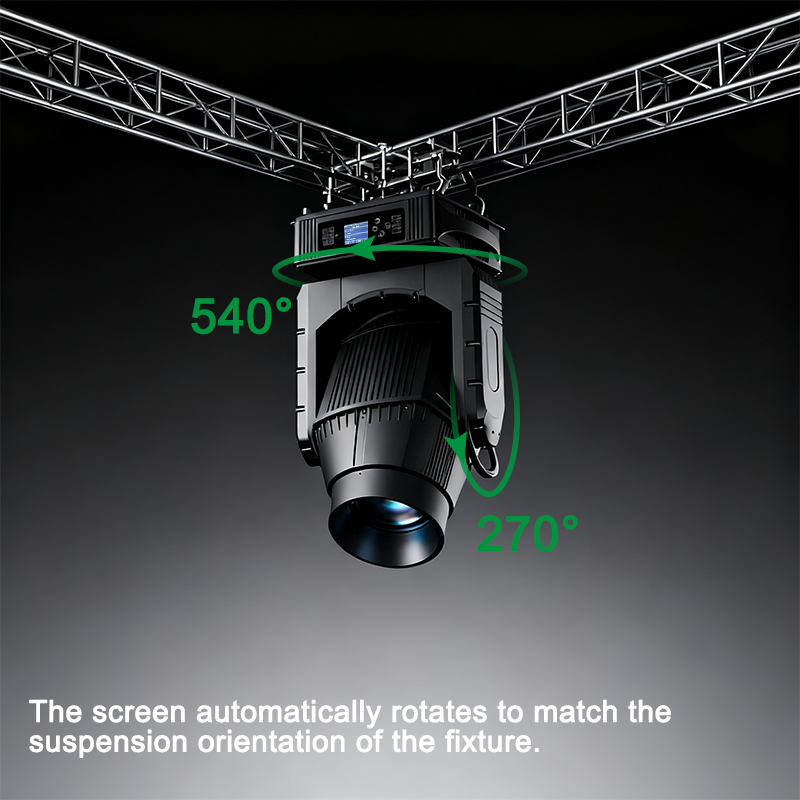

| Pan Movement: |
540° (8-Bit / 16-Bit Resolution) |
| Tilt Movement: |
270° (8-Bit / 16-Bit Resolution) |
| Reset System: |
Photoelectric Auto-Reset Protection |
| Safety Feature: |
Overheat Thermal Protection |

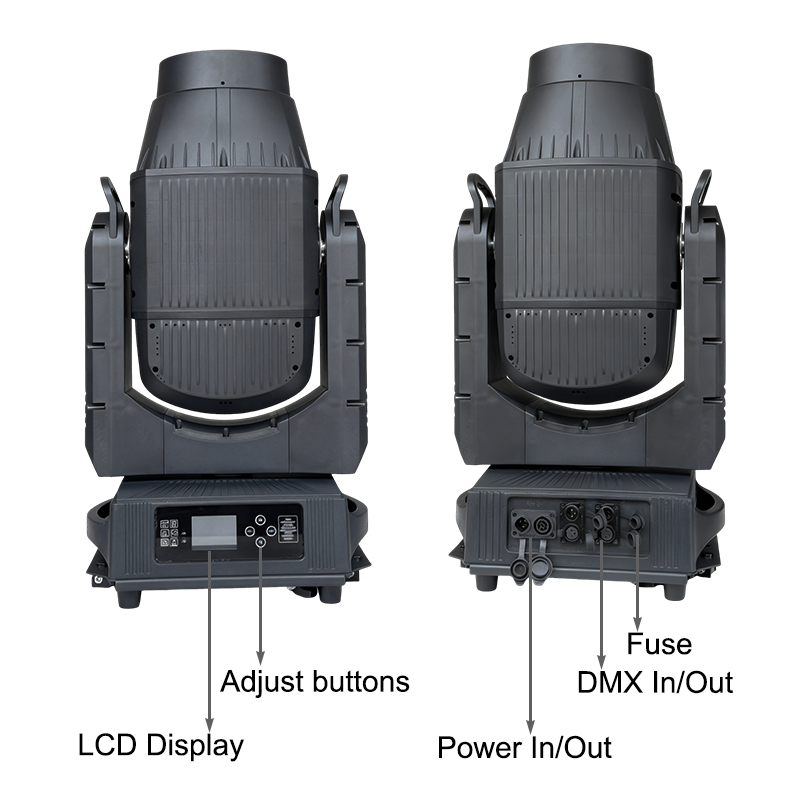

| Display: |
1.8-inch Color LCD (180° Reversible) |
| Dimensions: |
520 × 350 × 860mm / 1.71 × 1.15 × 2.82ft (L × W × H) |
| Net Weight: |
25.5kg / 56.2lb |
