| Power Supply: |
AC 100–240V, 50/60Hz |

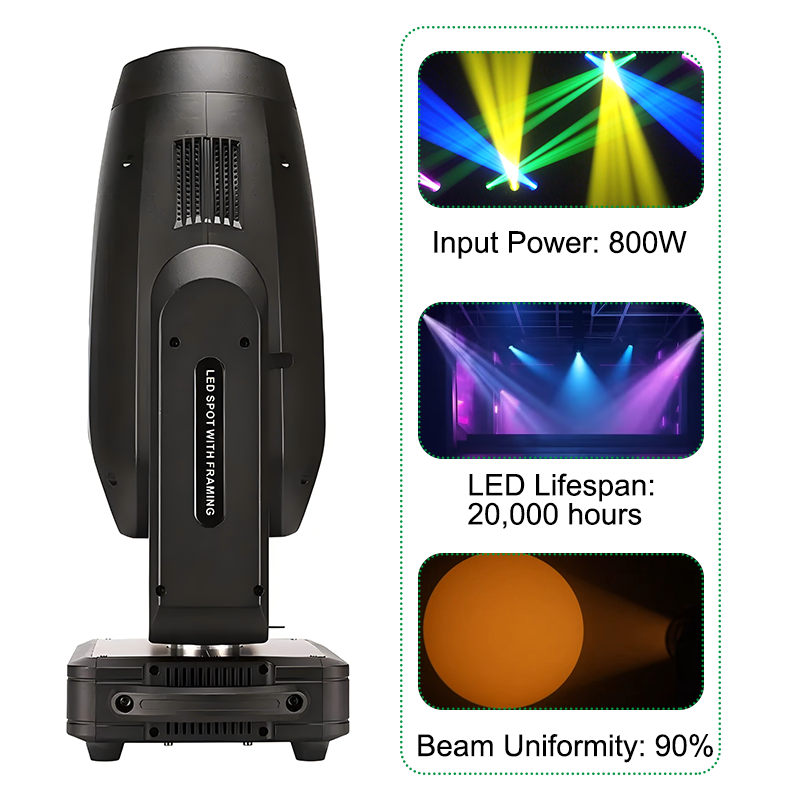

| Input Power: |
800W |
| LED Type: |
High-power 700W White LED Module |
| Color Temperature: |
6500K |
| LED Lifespan: |
20,000 hours |
| Beam Uniformity: |
90% |

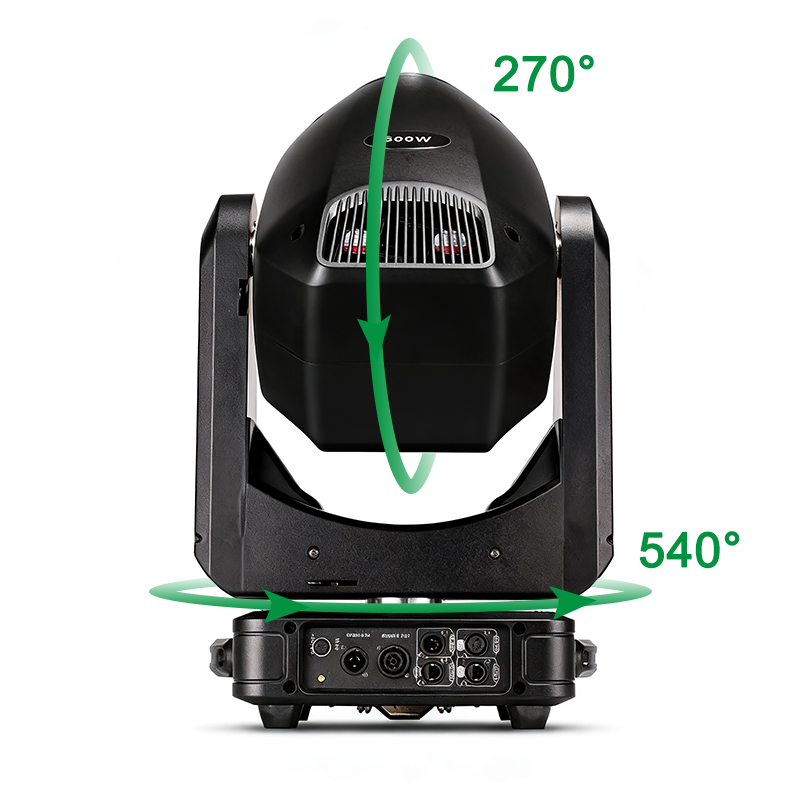

| Pan Movement: |
540° (16-bit precision scanning); fine-tuning accuracy: 0.008° |
| Tilt Movement: |
270° (16-bit precision scanning); fine-tuning accuracy: 0.008° |
| Scanning System: |
Advanced system; faster, more stable, and quieter with automatic error-correction and reset function |

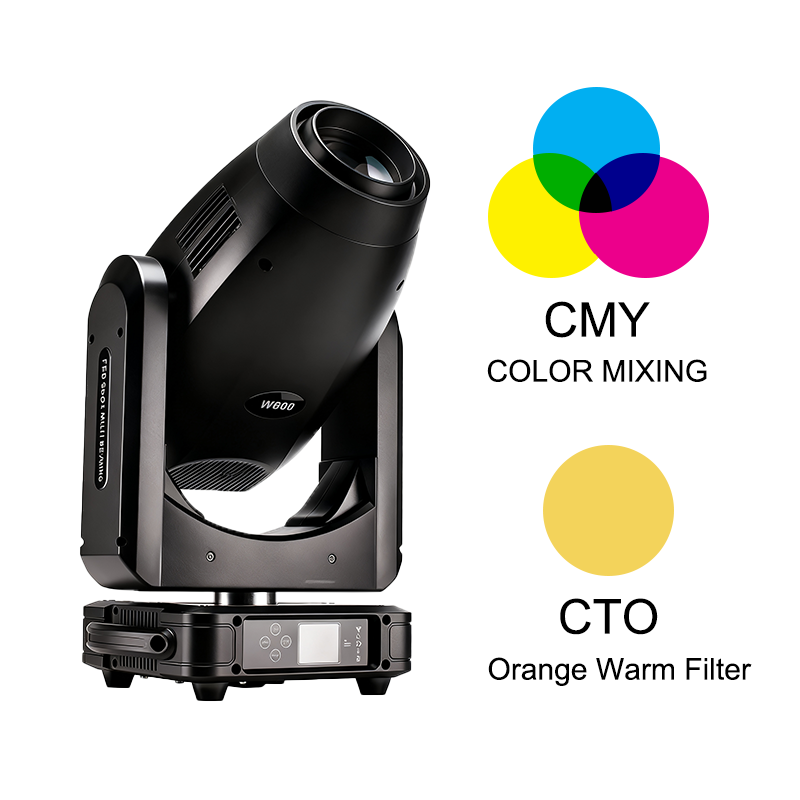

| Color Mixing System: |
Uniform and smooth CMY stepless color mixing + CTO linear color temperature adjustment |
| Color Wheel: |
1 Color Wheel: 7 fixed colors + open white; supports bi-directional rainbow effects, bi-color split effects, bi-directional wheel rotation, and arbitrary color positioning |

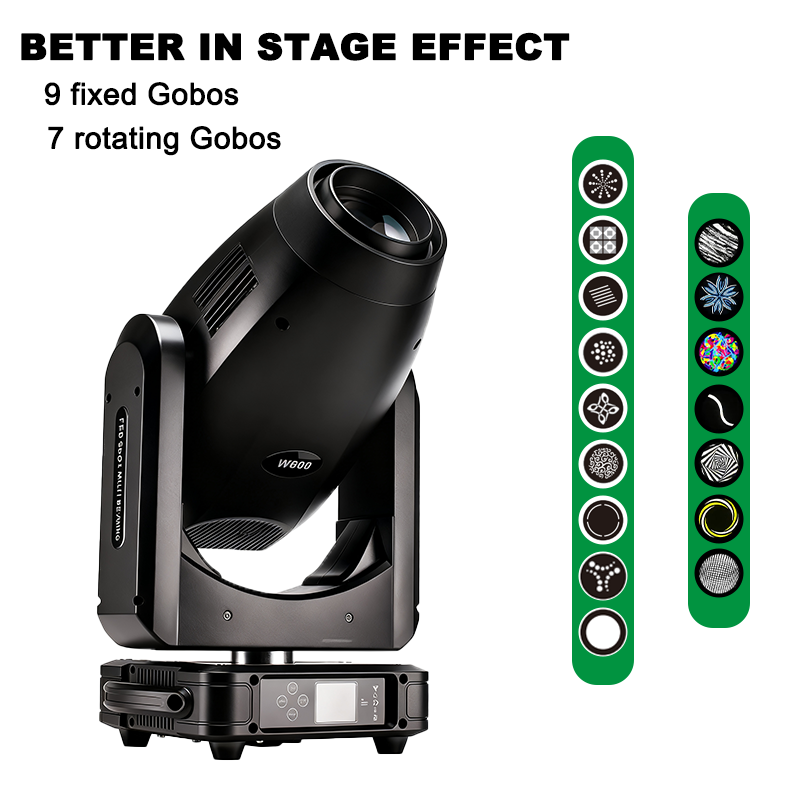

| Rotating Gobo Wheel: |
1 Rotating Gobo Wheel: 7 interchangeable rotating gobos + open circle; supports self-rotation, flowing effects, shaking effects, and indexable positioning |
| Fixed Gobo Wheel: |
1 Fixed Gobo Wheel: 8 fixed gobos + open spot; features Gobo Shake function |
| Dynamic Effects Wheel: |
Features simulated dynamic effects, such as flickering flames, flowing water, and other animated visuals |
| DMX Channel Modes: |
2 Channel Modes: 34 / 54 international standard DMX512 channel control modes |
| Control Protocols: |
Standard DMX512 protocol, RDM bi-directional data transmission, Art-Net Ethernet control protocol, and Wireless DMX512 control (optional add-on) |

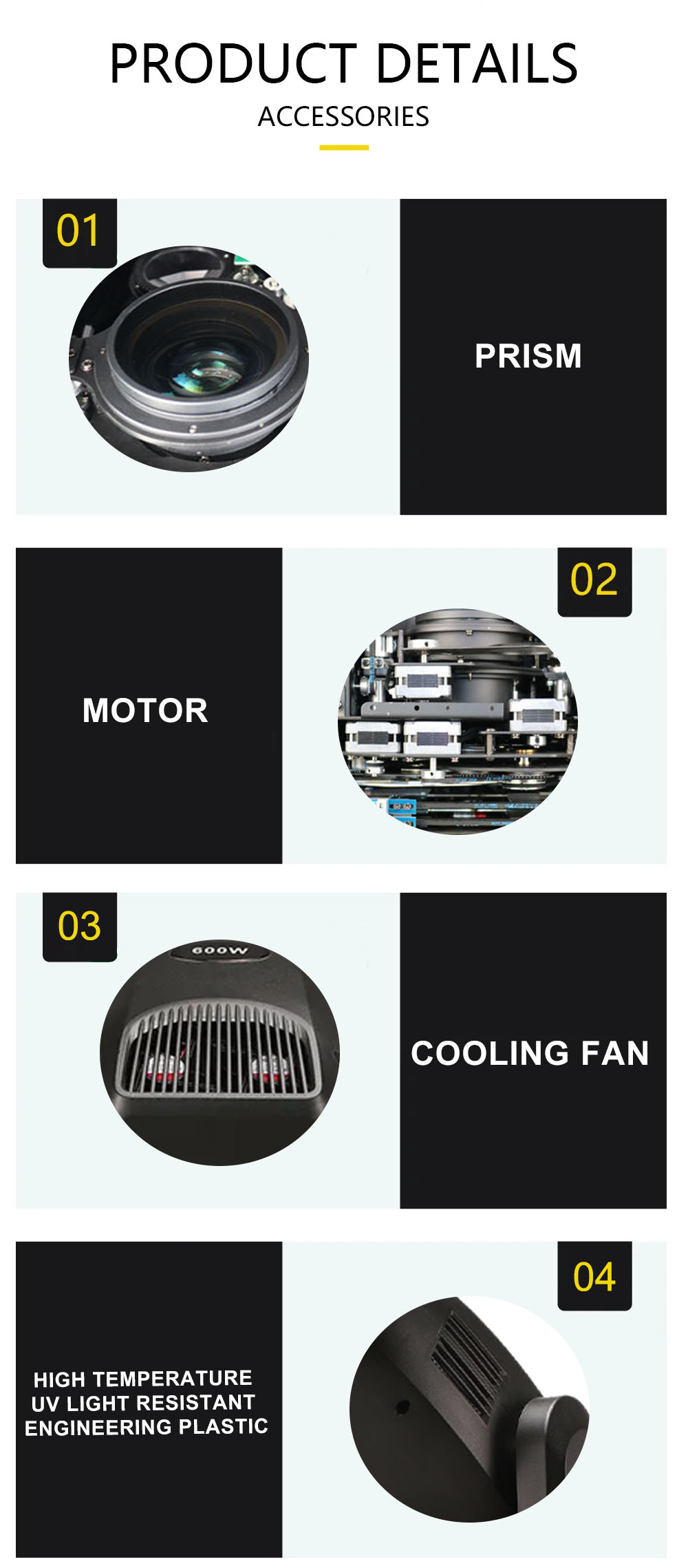

| Prism Wheel: |
Rotating 5-facet prism; rotatable in both forward and reverse directions with prism indexing/positioning function |
| Focus: |
Electronic focus; ultra-fine and smooth adjustment of focal distance |
| Iris: |
5% – 100% smooth adjustment |
| Strobe: |
Maximum frequency of 25Hz; electronic strobe speed adjustable from 1 to 13 flashes per second; modes include pulse, asynchronous, synchronous, and random (slow, medium, fast) |
| Dimming: |
0% – 100% linear dimming |
| Frost: |
0% – 100% linear frost/wash effect |
| Zoom Range: |
4.5° – 55° linear zoom |
| Framing Shutter System: |
Controllable beam-shaping system comprising 8 framing blades; the entire framing module is rotatable by 90°; creates light shapes such as triangles, rhombuses, rectangles, and other polygons in any orientation |

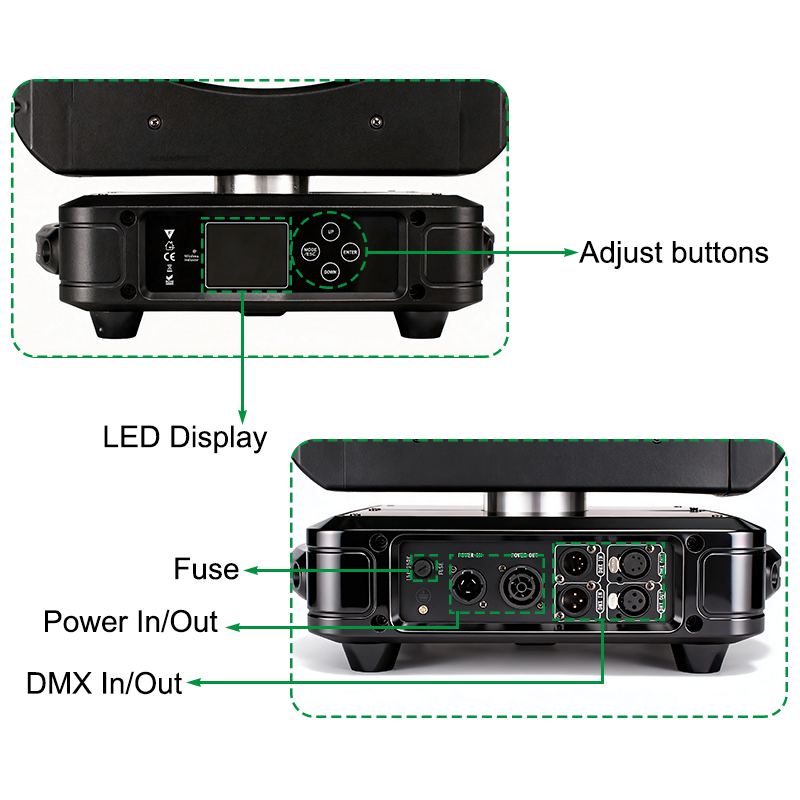

| Display Screen: |
2.8-inch LCD screen; supports switchable Chinese/English languages; text can be inverted 180°; features touch-button operation |
| Signal Protection: |
Input signal isolation protection; ensures stable signal transmission free from interference |
| Cooling & Monitoring: |
Intelligent fan control, electronic real-time temperature sensing, and DMX channel level monitoring |

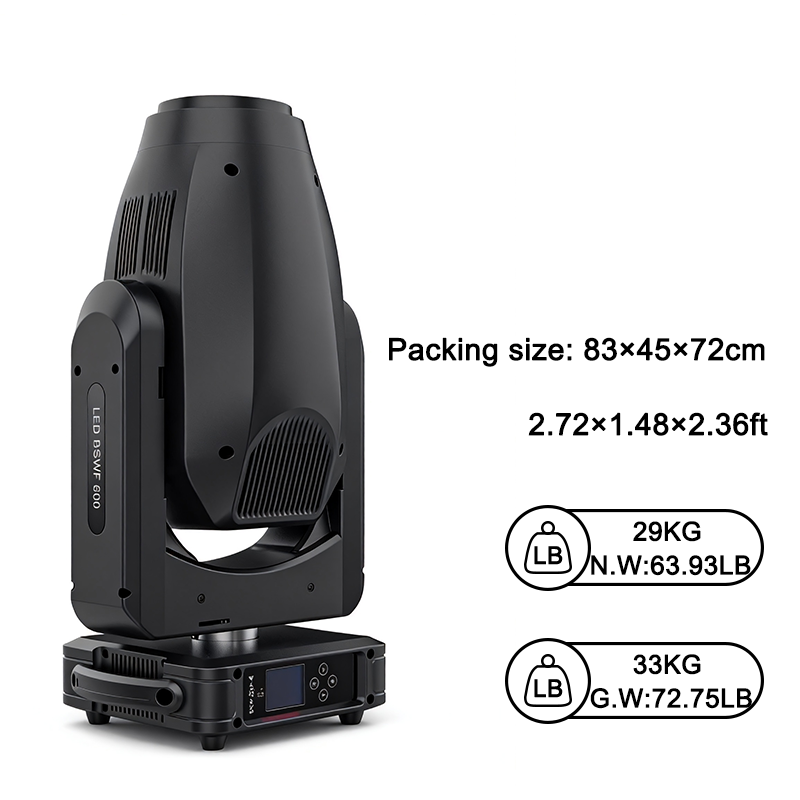

| Net Weight: |
29 kg (63.9 lb) |
| Gross Weight: |
33 kg (72.8 lb) |
| Carton Dimensions: |
830 × 450 × 720 mm (2.72 × 1.48 × 2.36 ft) |
