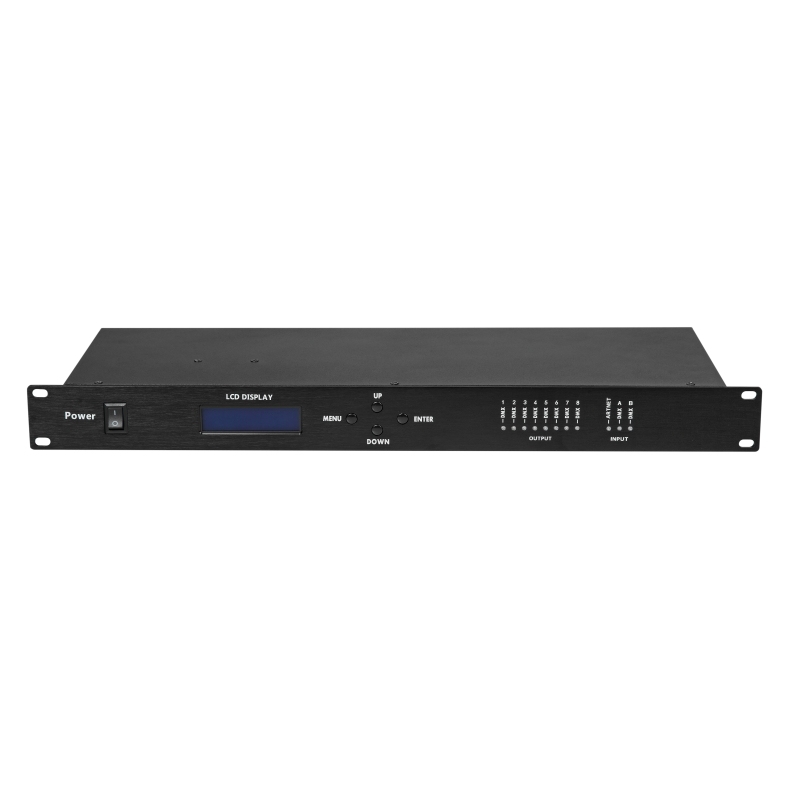

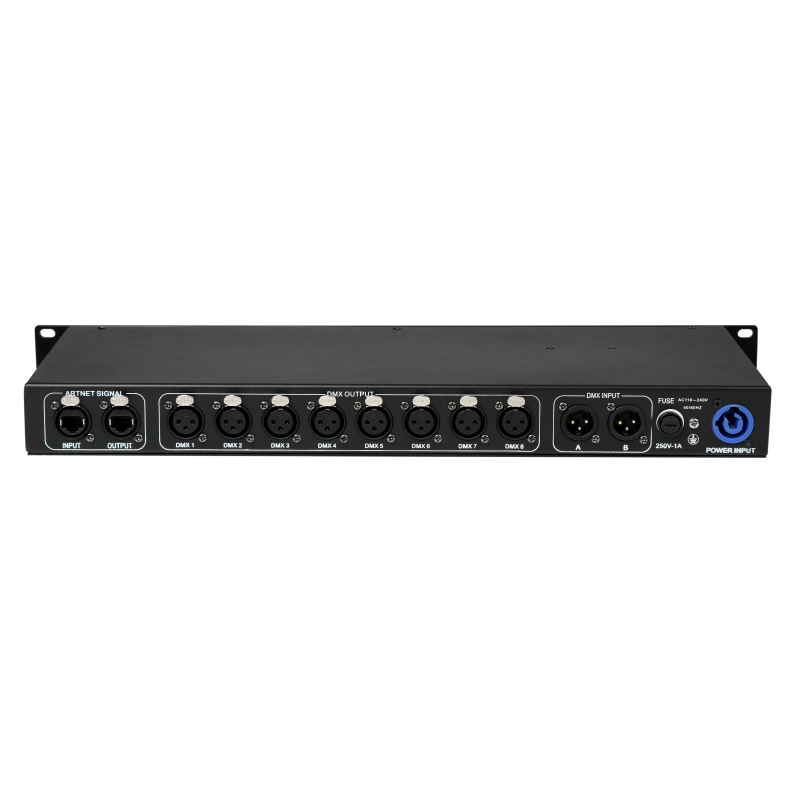

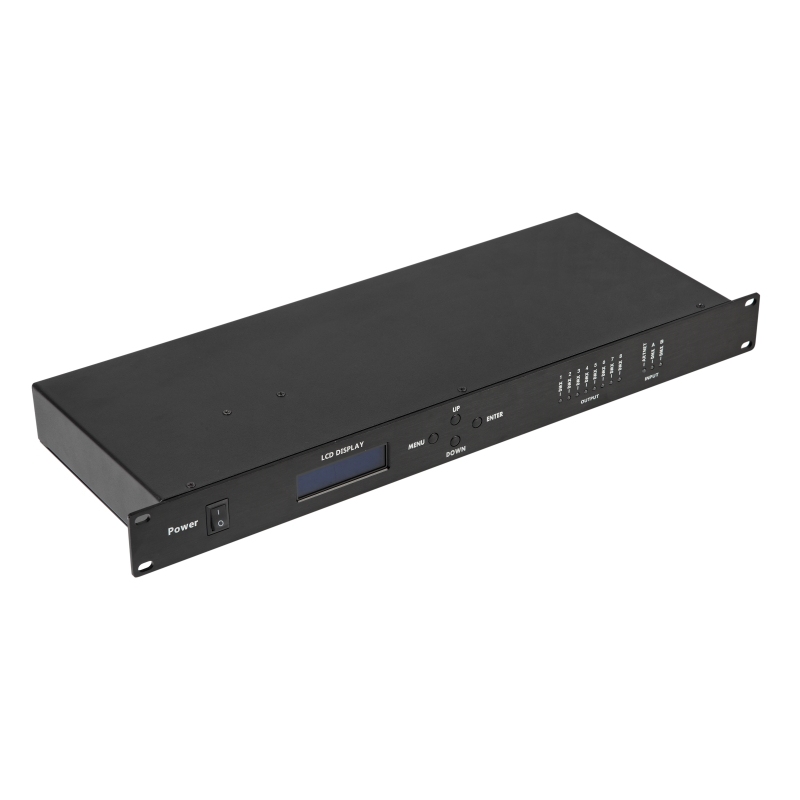

8 Nodes DMX ArtNet Controller

No.DMX-E8
SKU:
Limited Offer!
0.0 (0 Reviews)
0 Sold
$0.00 $220.08
-15%
GET $40.00 OFF ON ORDERS OVER $2,500.00
Get it
4F5QRK17
GET $80.00 OFF ON ORDERS OVER $4,500.00
Get it
2QXTJIGO
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
0 in stock
  • 8 Nodes DMX ArtNet Controller
  • 8 Nodes DMX ArtNet Controller
  • 8 Nodes DMX ArtNet Controller
  • Description

Technical Parameters:
Network signal: ART NET RDM
Number of signal channels: 8 DMX512 output and input
Working voltage: AC 100V~240V 47/60HZ
Weight: gross weight 3KG net weight 3.5KG
Features:
1. Independent software research and development is by no means a copy
2. Each channel of output signal is independently optically isolated, isolated power supply 2000V DC 4096 channels (8 DMX lines
3. It can convert conventional DMX512 signal into ART NET network signal.
4. The signal output XLR seat adopts three cores
5. System parameters can be set via LCD screen or network.
6. Standard 1U 19-inch rack installation
7. Built-in 2 32-bit ARM processors, built-in high-speed network processor chip,
8. 10/100M adaptive network port, IP and subnet mask can be modified by yourself;
9. Built-in switch chip, network cable can be cascaded;
10. One network cable can transmit the largest 256 DMX lines (domains);
11. After a large number of performances and practical applications, the quality is stable, and there is no delay in transmission. The DMX output refresh rate of this product is 40Hz/S;
12. Possess powerful RDM function, realize the stop code change in the software use.
Output DMX signal, such as using MADRIX, MagicQ software;

·Cooperate with the receiver for network DMX signal transmission, one network cable can transmit 256 DMX512 signals (DMX domain);

·With the network bridge of the receiver, it can carry out long-distance wireless DMX-512 signal transmission, and the transmission distance can reach several kilometers;

·With the network fiber converter used in the receiver, it can transmit DMX-512 signal through long-distance fiber;

·The network lighting console can be used as a console DMX output expander with the receiver.
