MA2 Command Wing Control DMX512 Controller for DJ Lights Console

Name: MA2 Command Wing Control DMX512 Controller for DJ Lights Console
Brand: Stage Light Mall
SKU: Command Wing
Price: 360.4 USD
Availability: InStock

No.Command Wing

Command Wing is a device for controlling stage lighting, which can work with the grandMA2 onPC software to achieve a highly flexible and powerful lighting control system. It has two built-in DMX ports, as well as the ability to send two additional DMX universes via Ethernet protocols with grandMA2 onPC1. The command area of Command Wing is similar to the layout of grandMA2 consoles, making it easy for users to program or playback in the grandMA2 environment.

Limited Offer!

0.0 (0 Reviews)

1 Sold

$360.40

-15%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Specification:

Up to 3584 channels with wing expansion.

Similar to MA2 layout command section

•2 A/B field fader (100mm)

1-stage wheel

Independent backlight dimmable silent (no noise) key

Integrated universal power supply

Light, convenient and rock solid.

Ergonomic design

Just connect to any PC running MA series console onPC through USB.

Integrated universal power supply ,lightweight,portable and solid.

Netweight only 7KG,can be moved easily

Commands buttons layout is similar to the grandMA 2,just connect to the PC,it can be easily to control

MA portable lighting console(MA onPC command wing)

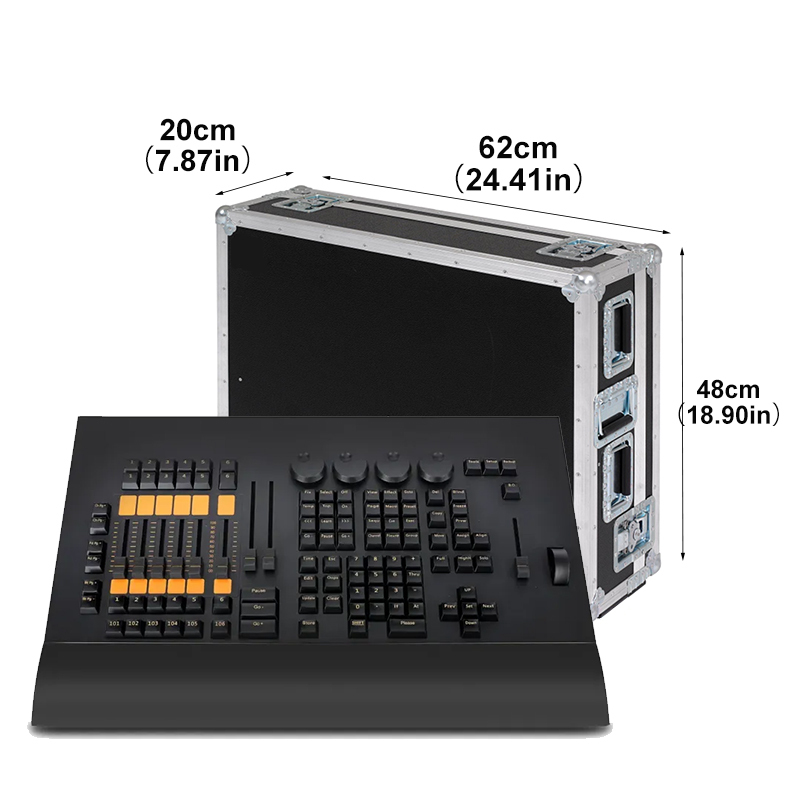

Packing Size:58.3X44.7X13.8CM

Technical parameter:

* Real time control 2048 parameters(can backup up to 65536 parameters of Ma system)

* 6 executive faders(length 60mm),18 executive fader buttons,2 A/B switch faders (length 100mm),6 executive buttons,6page buttons(channel/fader/button),4 encoder

*2048 parameters,up to 4096 parameters

* 2DMX output,1 DMX input

*1Brightness rollers-dimmer midi in/out (midi-timecode/midi-note)connector.

* with separate backlight and dimmable silent button

* remote analog signal input connector.

* XLR 3-PIN ltc(Linear Time Code)connector

* Kensington security lock slot

* USB 2.0 connector
