| Input voltage | AC 90~240V，50-60Hz |
| Titan 11.0 version 11.1 operating system | |
| i5 (i7) CPU processor, 64GB solid-state drive, 4GB memory; | |

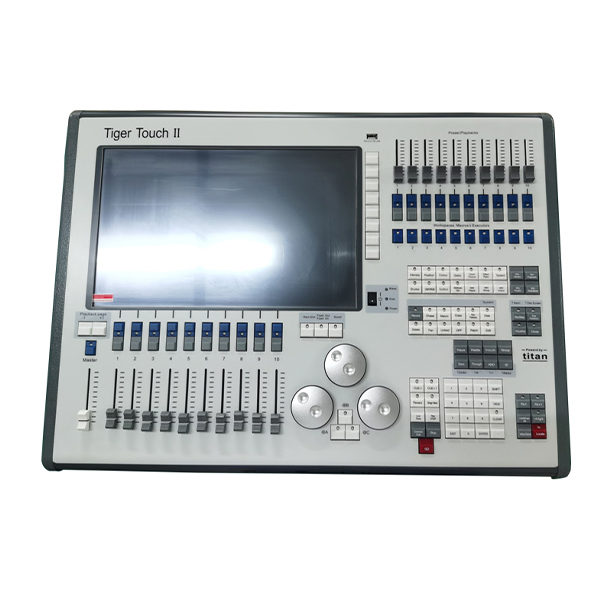

| Support Chinese menu display, built-in multi-language, and built-in UPS power failure protection; Built-in 15.6-inch high-resolution widescreen touchscreen; |
|
| Ten macro function buttons, allowing you to operate the console faster; | |
| 20 playback faders support more than 1000 program playback; | |
| Powerful property control window, CMY\RGB color picker system; | |
| The console itself has 12 ports, 6144 channels of output, Support graffiti screen identification function; | |
| A fast and easy-to-use graph generator and the categorized built-in graphs are easier to use; | |
| Support CIPT protocol; you can directly see the image thumbnails of the media clips in the media server on the console; | |
| Support Wi-Fi access, wireless control lights, mobile devices (iPhone, iPad Touch), remote control lights; | |
| With thousands of built-in light libraries and built-in light library editing software, you can edit lightweight libraries on the console at any time; | |
| Built-in Visualiser line lighting visualization software, want to pre-program? No problem! | |

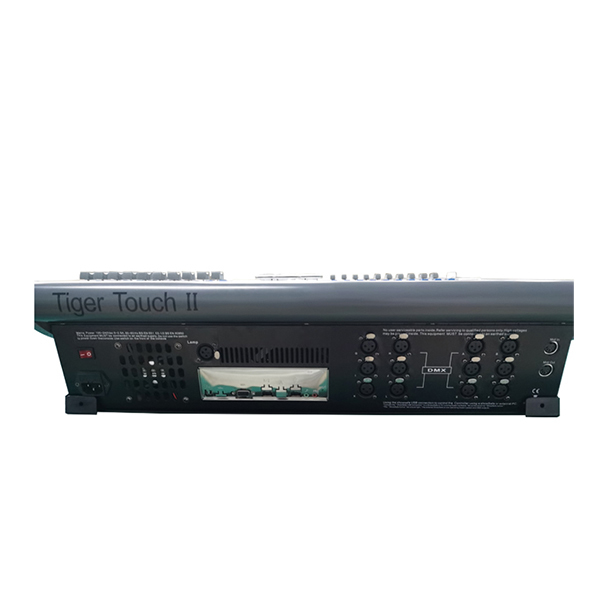

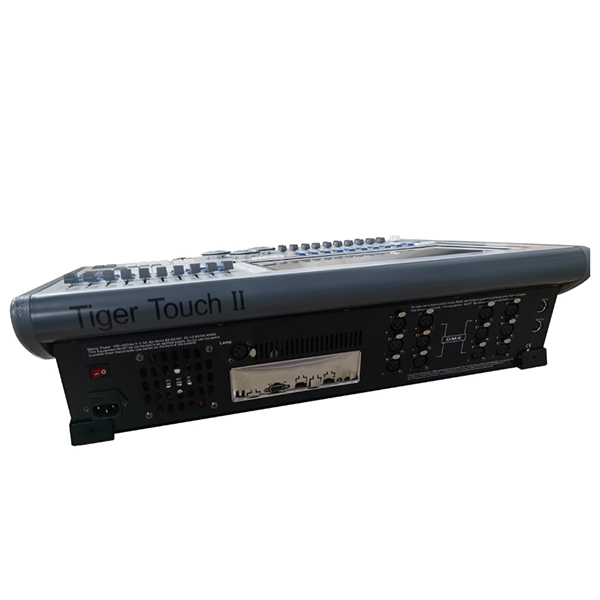

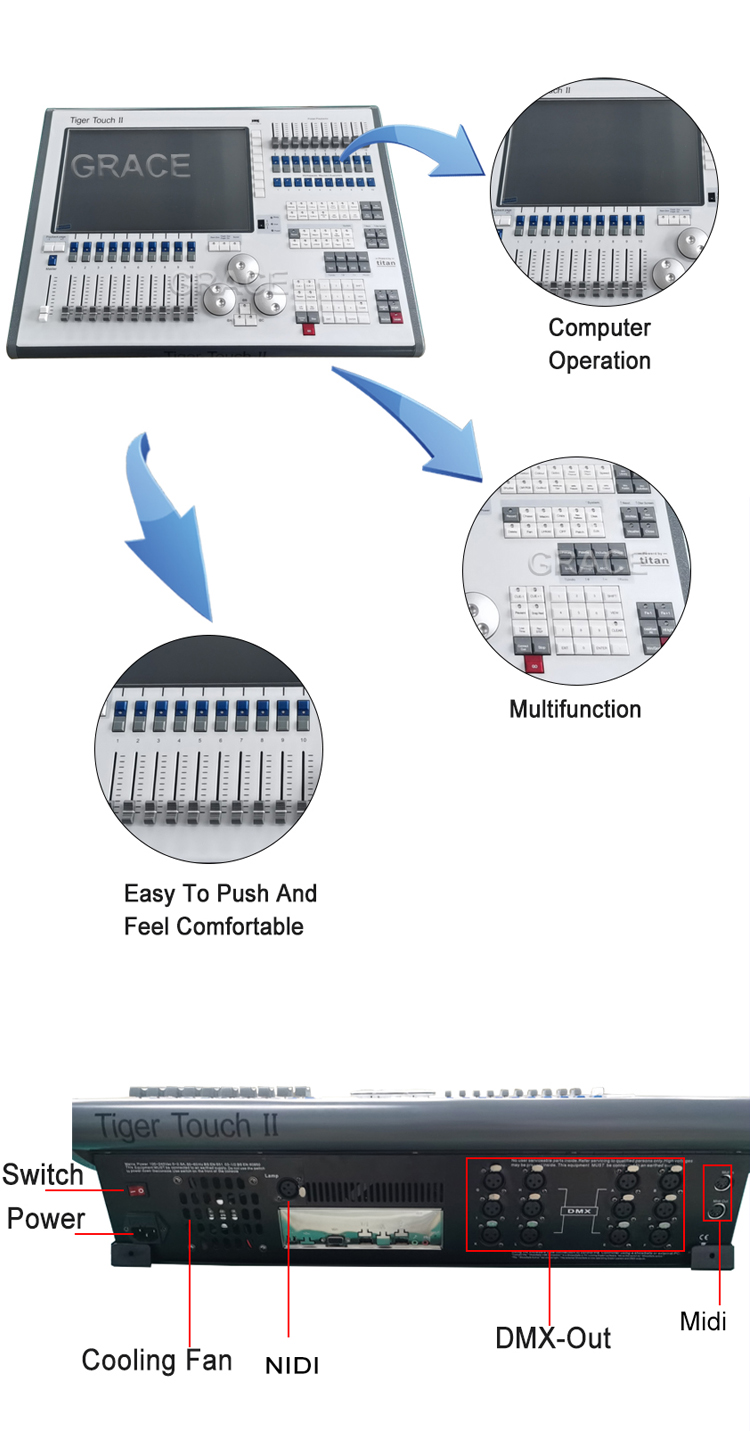

| Support MIDI time code sound and light synchronization function; you can also play music in the console to send time code to control the playback of lighting programs. Console interface: | |
| AC90-270 power input interface, with power switch; | |
| Standard DMX-512 interface four total 2048 channels; | |
| 2 USB2.0 interfaces; | |
| MIDI input and output interface; | |
| One 25-pin serial port, which can be connected to a printer, etc.; | |
| 1 Ethernet network interface; | |
| One gooseneck light interface; | |
| One PS2 keyboard and one mouse interface; | |
| One standard color VGA interface; | |
| One reset button; | |
| One each for audio input, output, and microphone interface; | |
| 1 FireWire interface; | |
| One optical fiber interface; | |
| One spare USB port. | |
| More than 3000 lighthouse files over a hundred built-in graphics removable expansion memory stick. | |
| More than 3000 built-in lighthouse improvedlighting selection and configuration methods. | |
| 4096 DMX512 channels,120 built-in graphics.300 performances or scenes. | |
| Configured 120 computer lights different address code, 120 sets of conventional lamps with different address code. | |
| Core Duo processor, 60GB solid state hard drive, 4GB memory. | |
