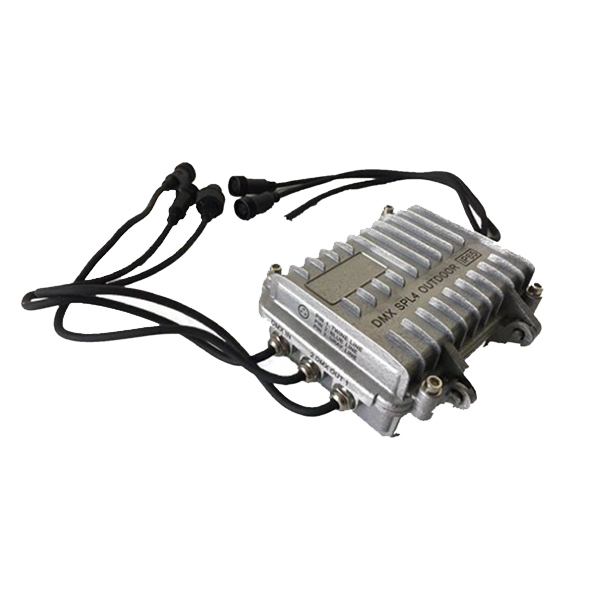

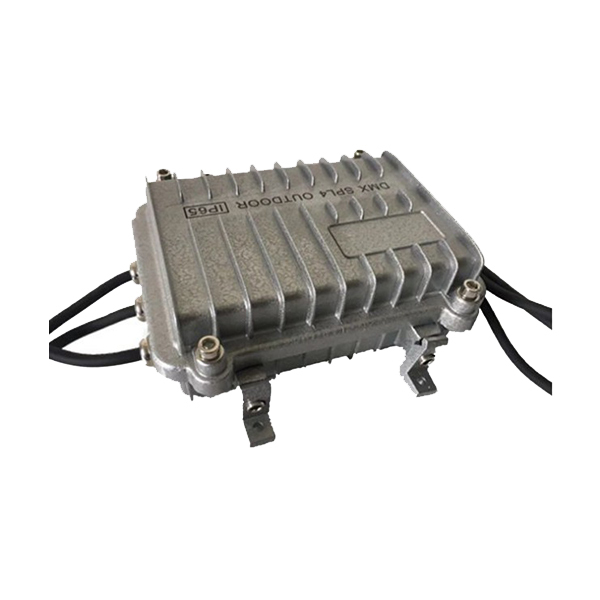

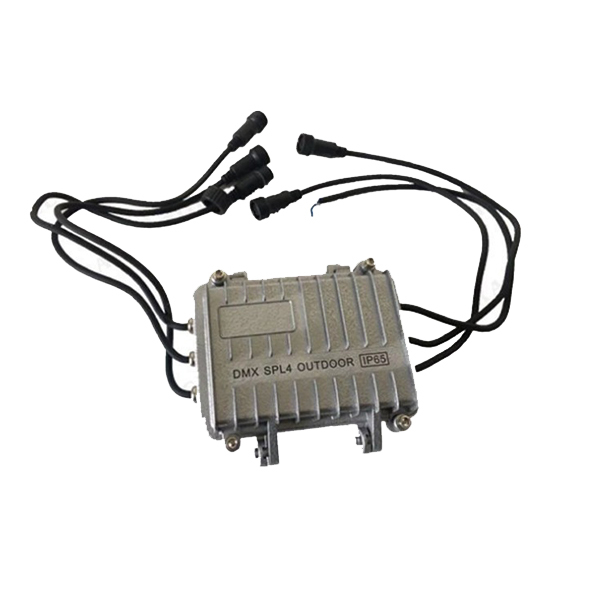

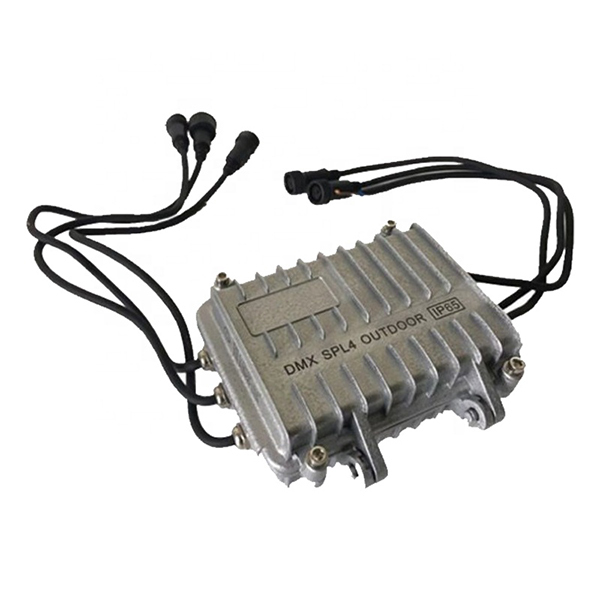

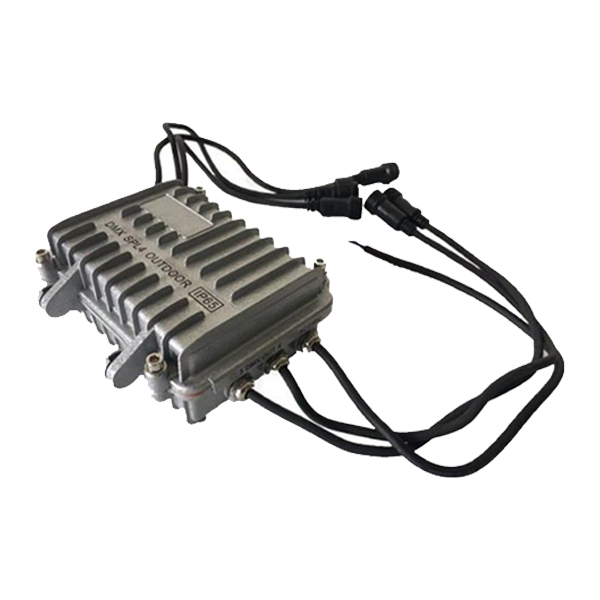

2ways dmx distibutor
1 4-channel DMX signal waterproof amplifier, waterproof grade IP65;
2 All aluminum chassis, unique, novel and beautiful;
2 Output standard DMX512 digital signal;
3 DMX512 signal amplification function, extend the transmission distance of DMX signal;
4 DMX512 signal distribution function, multiple DMX post-levels share a set of control system;
5 Independent inductive power supply, independent DMX signal ground wire, independent distribution and amplification of standard DMX;
6 Independent photoelectric isolation function to avoid interference and damage to the system DMX signal control by the subsequent stage;
7 One input, four independent DMX signal amplification output;
8 Independent power indicator, independent signal input indicator;
9 Strengthen the DMX signal function of the input line.
【technical parameter】
Power source: AC110~120V 50Hz/60Hz AC220~240V 50Hz
Work rate: 6W
Digital signal: DMX512/1990
Net weight: 1.5KG
Gross weight: 2.7KG
Product size: 200×180×70MM
DMX signal input connector: XLR-D3/5M
DMX signal distribution output connector: XLR-D3/5F
Electrical isolation voltage between each input and output interface: >1000V
