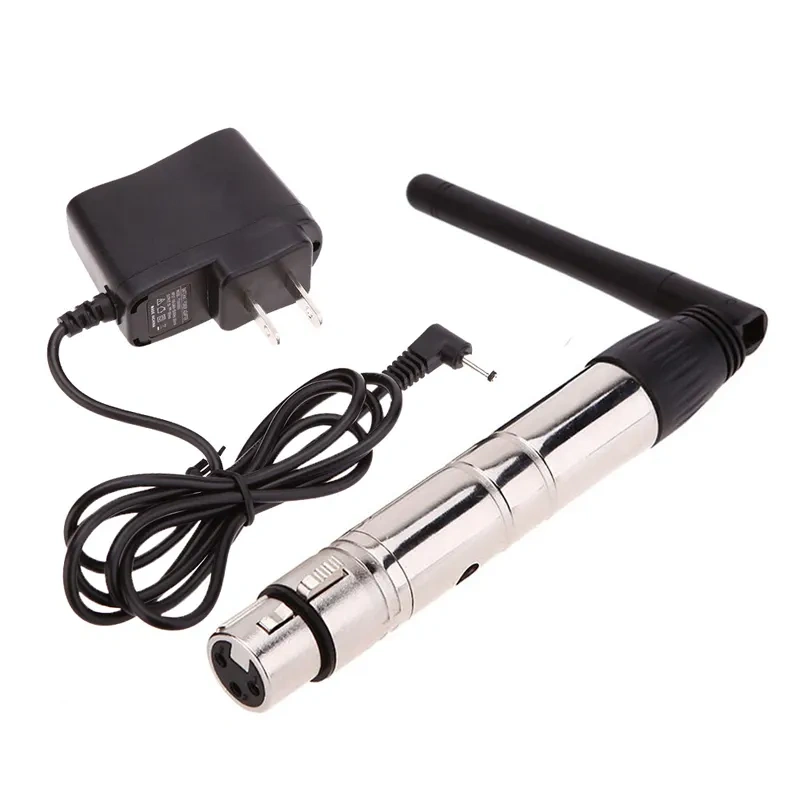

1. Tricolor LED displaying
|
|
2. 126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.
|
|

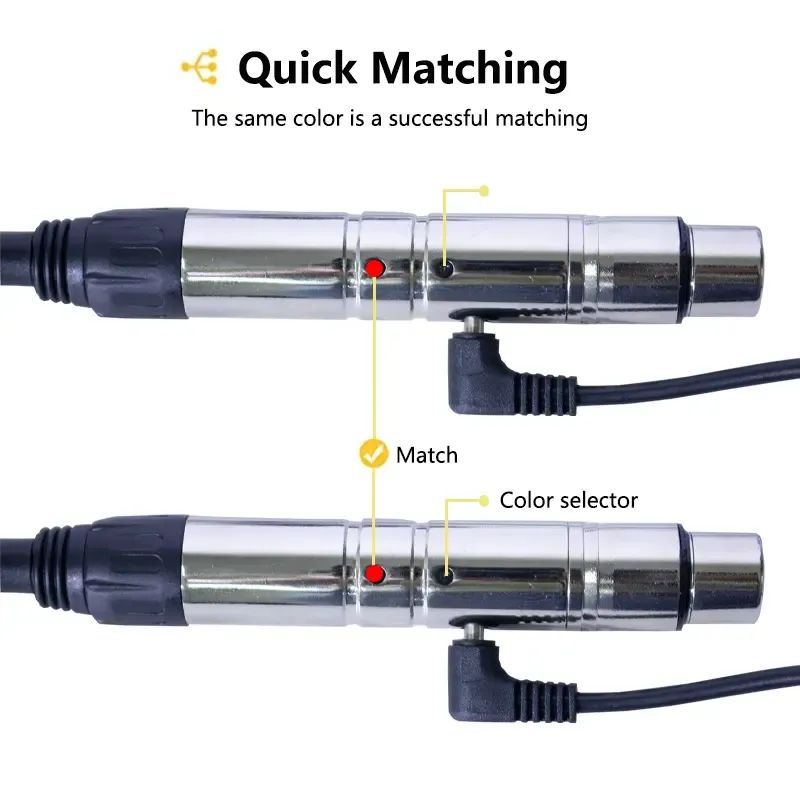

3. 7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.
|
|
4. Input voltage: 5VDC 500mA MIN
|
|
5. Communication distance: 700M
|
|
6. Work frequency section: 2.4GHz ISM band, 126 channels frequency section.
|
|
7. Max transmitting power rate: 20dBm
|
|
8. Receiver sensitive: -94dBm
|
|

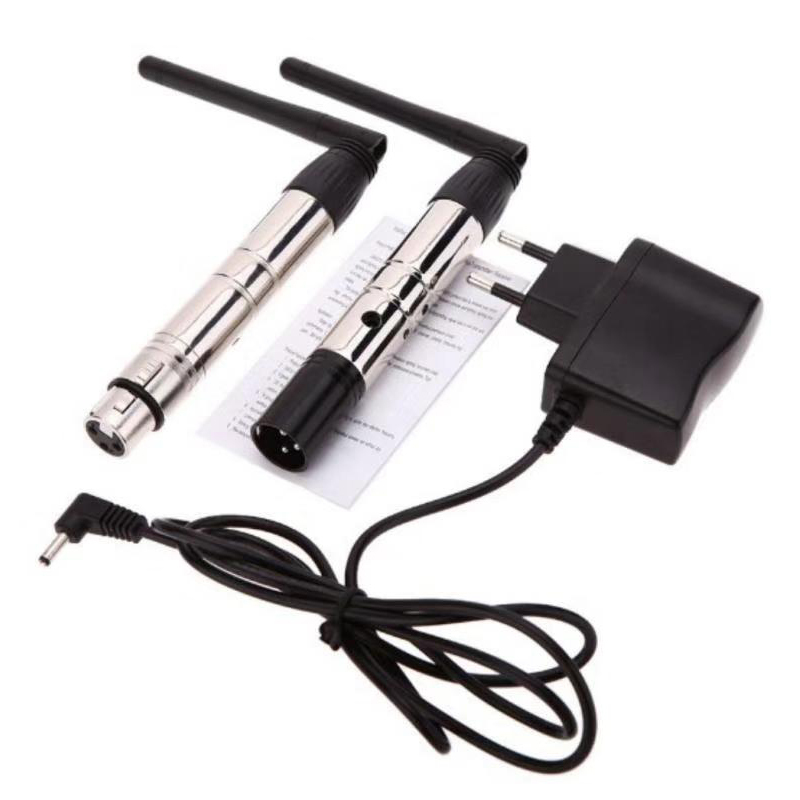

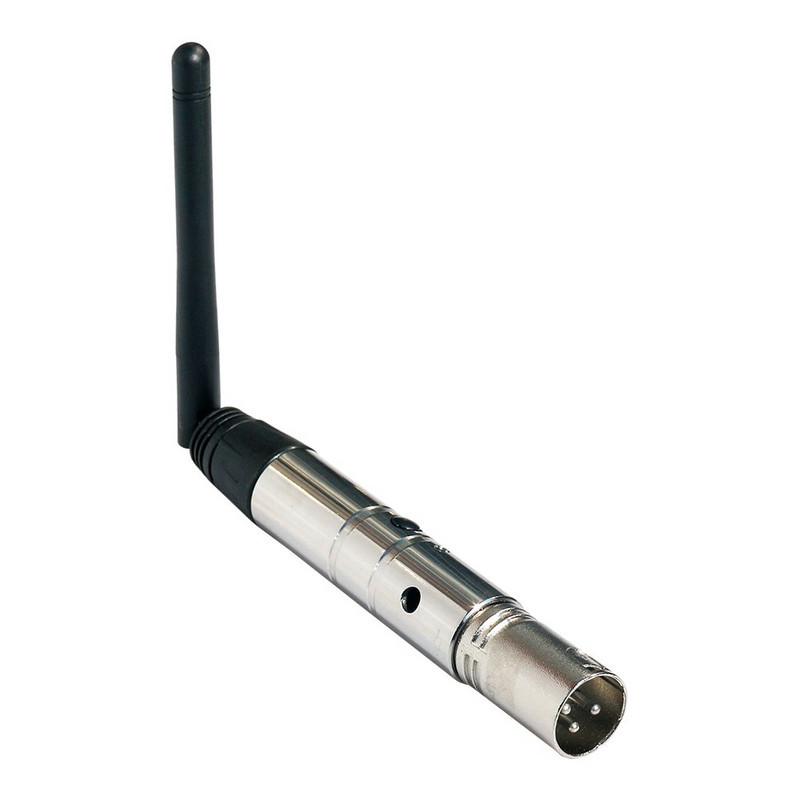

9. Signal port: 3 pin male plug (for transmitter) & female plug (for receiver)
|
|
FAdvantages
|
|
|
7 groups ID code settable
|
|
|
Portable and easy to handle
|
|
|
Economical
|
|
|
small size: 13.5cm x 2cm x 2cm only
|
|
|

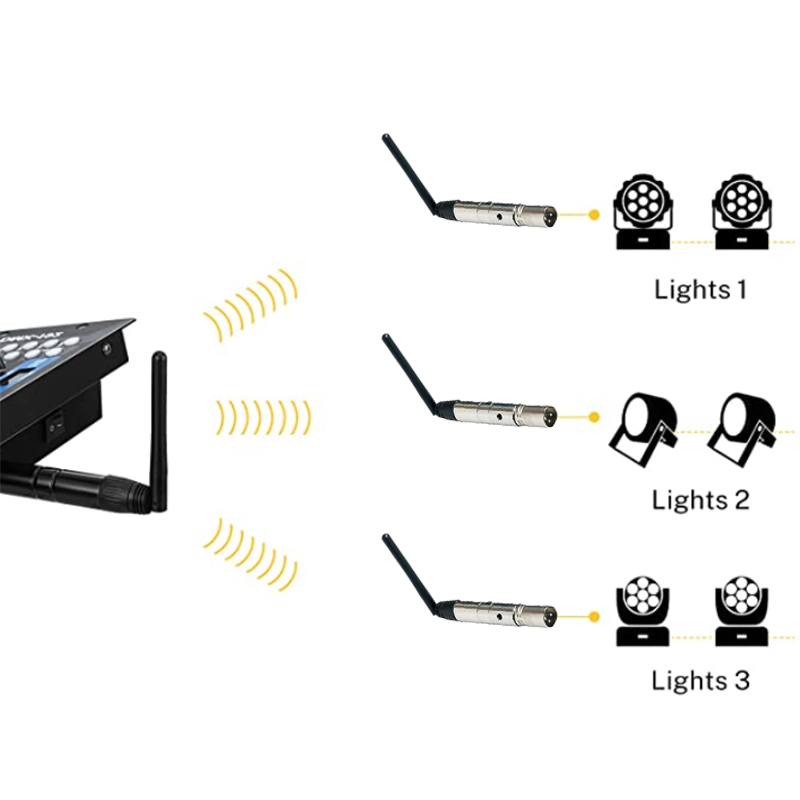

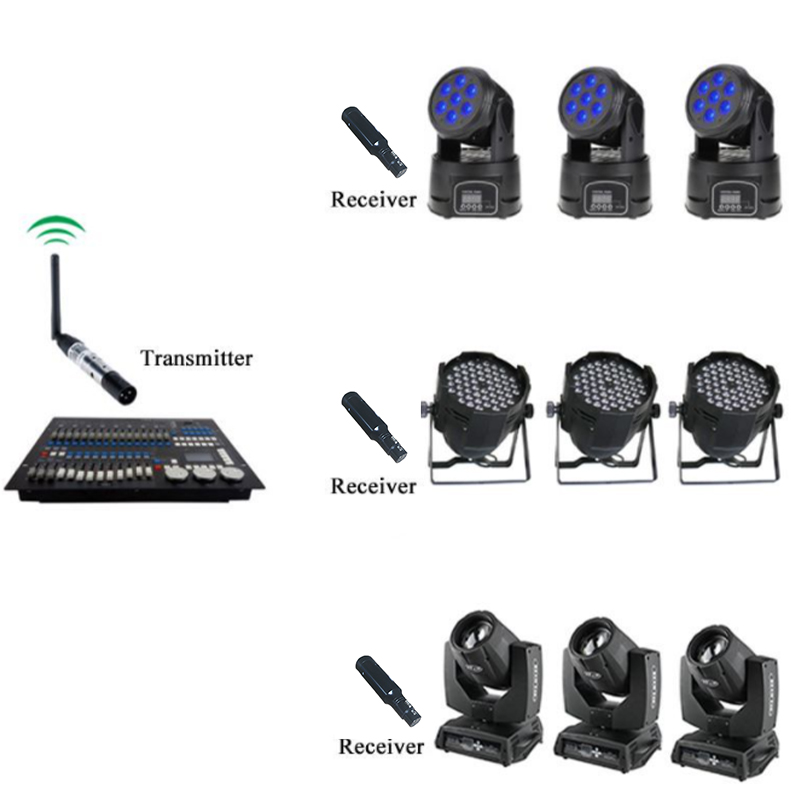

one transmitter can control many receivers
|

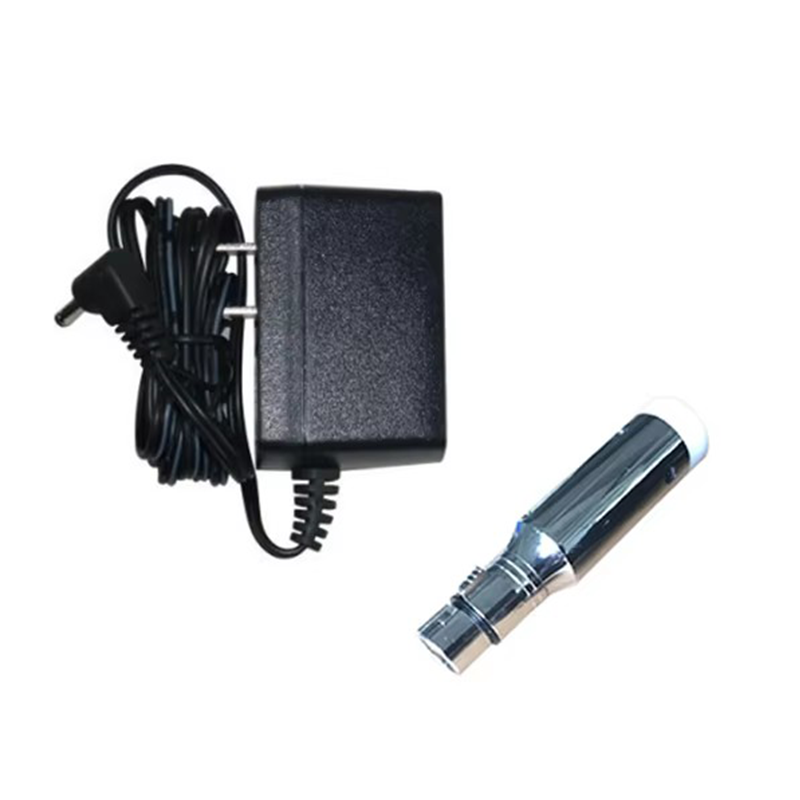

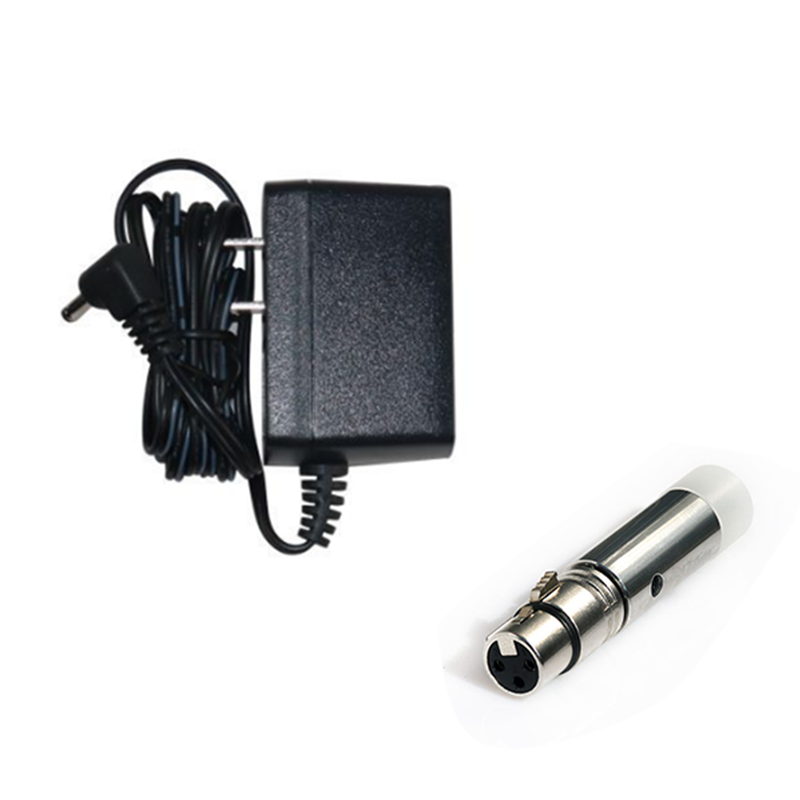

| G-XLRS is wireless receiver short case type dont have antenna |
| 1.Transmission Distance:300m-500m |
| 2.Signal port:3pin |
| 3.Frequency:2.4G |
| 4.Interface:Standard DMX 3 female Interface(only female as receiver) |
| 5.Group:7 Group ,user can use 7 groups individual wireless system without any interference with each other in the same place. |
| 6.Tricolor LED displaying |
| 7.Input voltage: 5VDC 500mA MIN |
| 8.Carton packing |
| 9.Weight: each package ship weight 0.5KGS |
| 10. Adapter plug, EU plug, US plug, AU plug, UK plug |

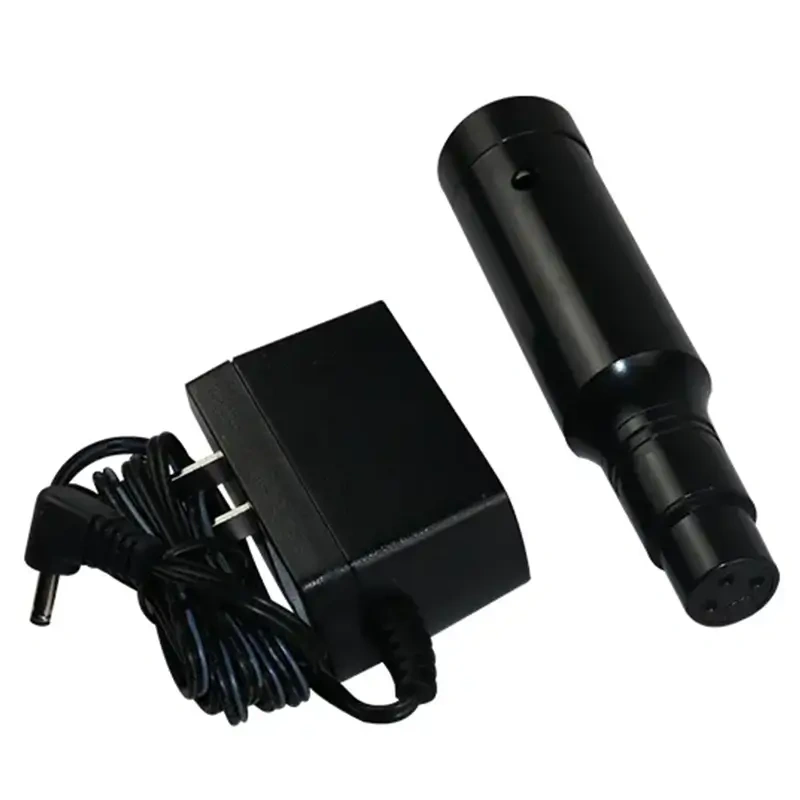

| B-XLR wireless battery short case no antenna dmx 512 receiver |
|
Battery: 16340 battery 3.7V 650mA full charge can use about 8 hours
charge time about 1.5 hours
|
| 1.Transmission Distance:300m-500m |
| 2.Signal port:3pin |
| 3.Frequency:2.4G |
| 4.Interface:Standard DMX 3 female Interface(only female as receiver) |
| 5.Group:7 Group ,user can use 7 groups individual wireless system without any interference with each other in the same place. |
| 6.Tricolor LED displaying |
| 7.Input voltage: 5VDC 500mA MIN |
| 8.carton packing |
| 9.weight: each package ship weight 0.5KGS |
| 10.adapter plug ,EU plug ,US plug ,AU plug ,UK plug |
