Voltage
|
AC100 - 240V, 50 - 60Hz
|
|
Power
|
500W
|
|
Light source
|
High brightness 400W module light source
|
|

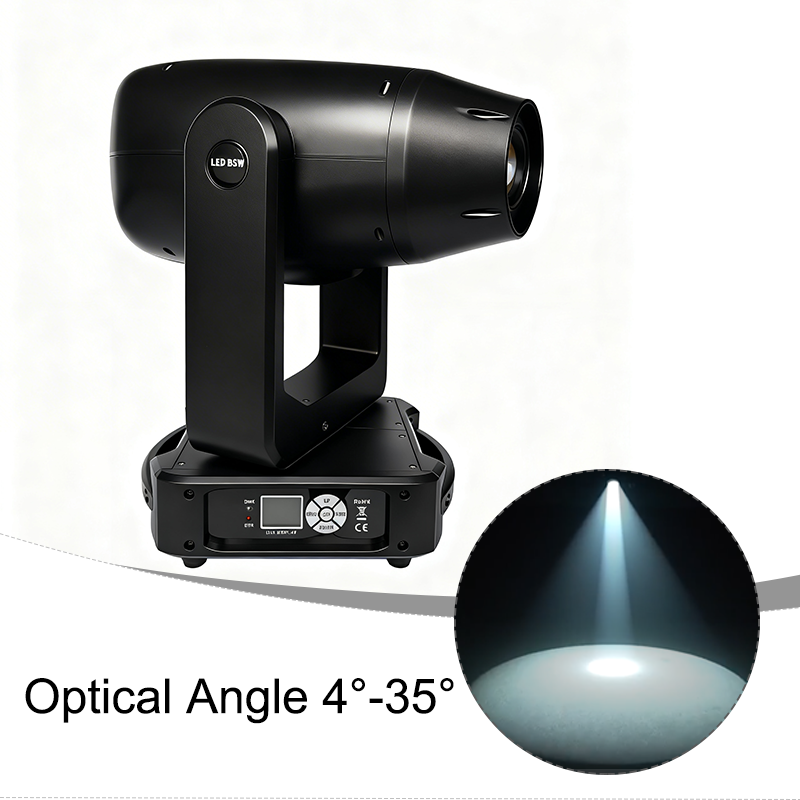

Optical Angle
|
4° - 35°
|
|
Color temperature
|
9000K
|
|
LED life
|
more than 20,000 hours
|
|

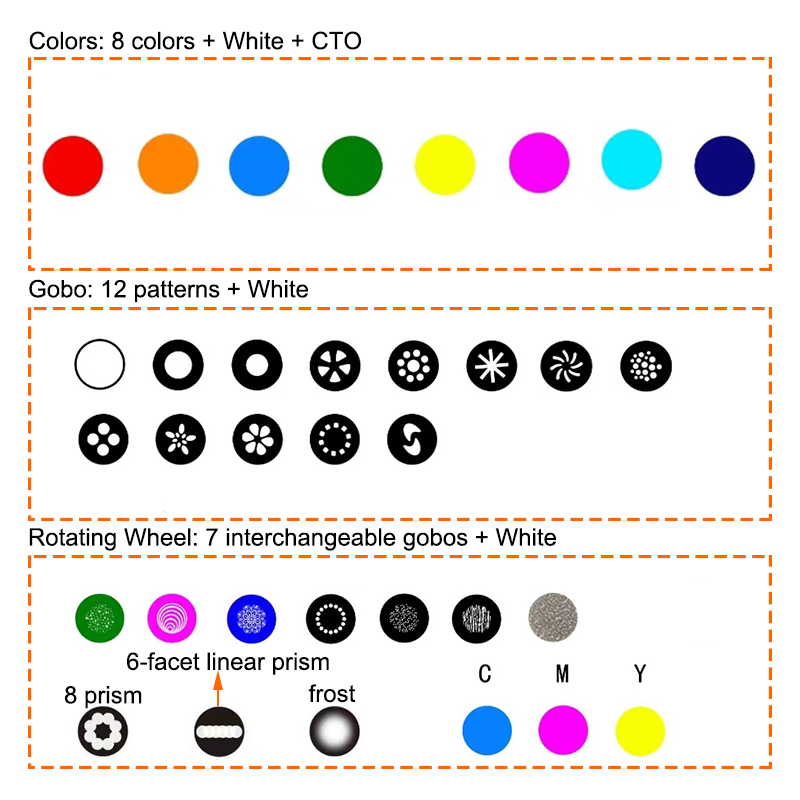

Color disk
|
8 colors + white + CTO, color flow, color rainbow can be realized. CMY endless color mixing.
|
|
Rotating pattern plate
|
7 pattern pieces + white light. Can achieve rotation, two-way water, shaking effect. Pattern wheel can be positioned.
|
|
Fixed pattern plate
|
12 fixed patterns + white light
|
|
Aperture
|
5% - 100% smooth adjustment
|
|
Dimming
|
Electronic 0 - 100% linear dimming
|
|
Atomization
|
Electronic 0 - 100% linear atomization soft light effect
|
|
Amplification
|
4° - 35° focusing linear amplification
|
|
Stroboscopic
|
Fast stroboscopic, multi-stroboscopic mode selection, synchronous, bisector, pulse, random
|
|
Double prism
|
1 4 prism, 1 8 prism can be independently bidirectional rotation
|
|
Level
|
540°, precision 2.11° step, fine tuning accuracy 0.008°
|
|
Vertical
|
240°, accuracy 1.05° step, fine tuning accuracy 0.004°
|
|
Control channel modes
|
24 DMX channels and 26 DMX channels
|
|
Menu display
|
Touch screen + button, Chinese and English languages can be switched at will, font can be automatically 180 degrees reverse
display |
|

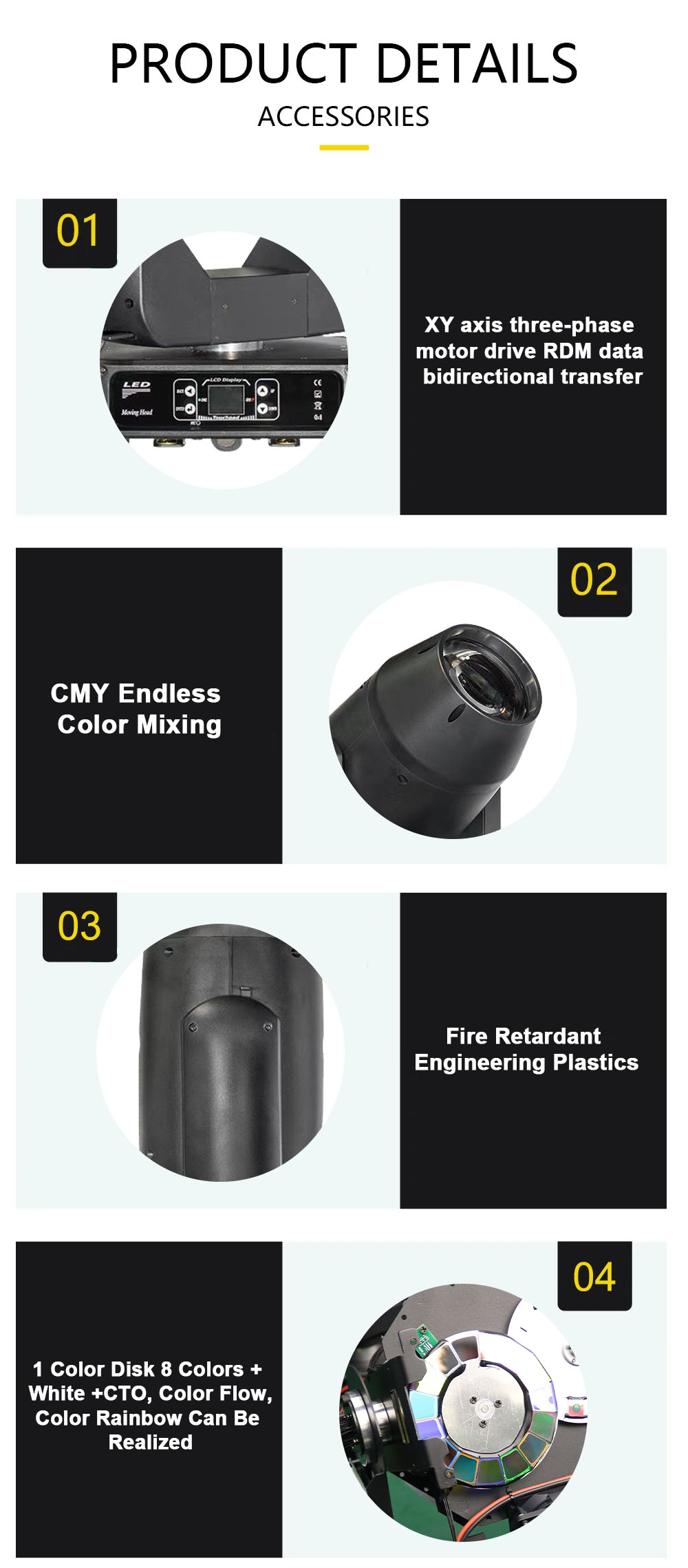

XY axis drive
|
Three-phase motor drive
|
|
RDM data
|
Bidirectional transfer
|
|

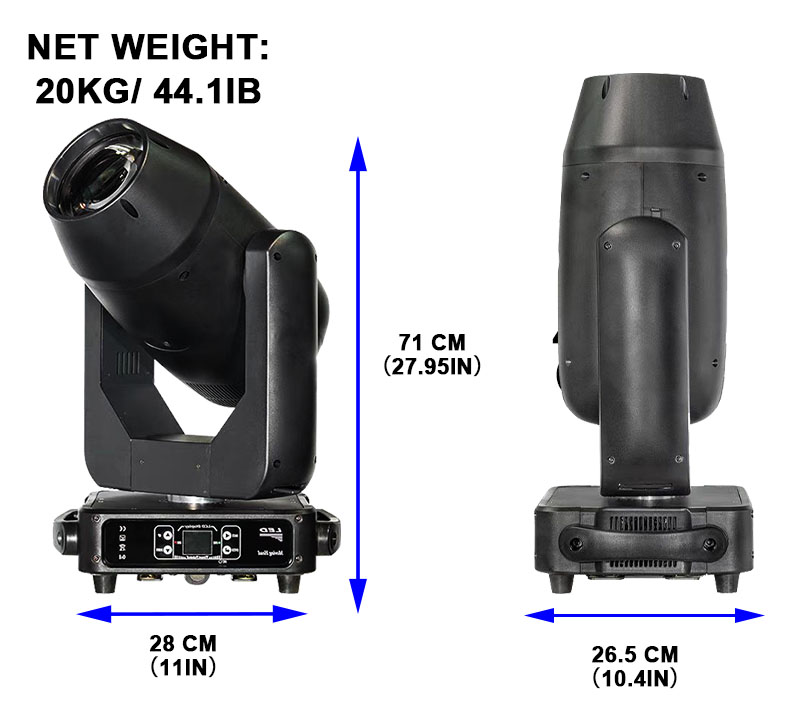

Net weight
|
20kg/44.09lb
|
|
Gross weight
|
23kg/50.71lb
|
|
Product size
|
415mm×281mm×715mm/16.34in×11.06in×28.15in
|
|
Carton size (one pack)
|
75cm×36cm×46.5cm/29.53in×14.17in×18.31in
|
