| Product Name: |
5-Head Flame Machine |
| Application: |
Large-scale cultural tourism projects, music festivals, etc. |
| Operating Voltage: |
AC100-240V |
| Power Consumption: |
1600W |
| Control Mode: |
DMX512 |
| IP Rating: |
IPX3 (Rain-proof design) |
| Consumables: |
Isopropyl alcohol; Isoparaffins G, H, L, M |

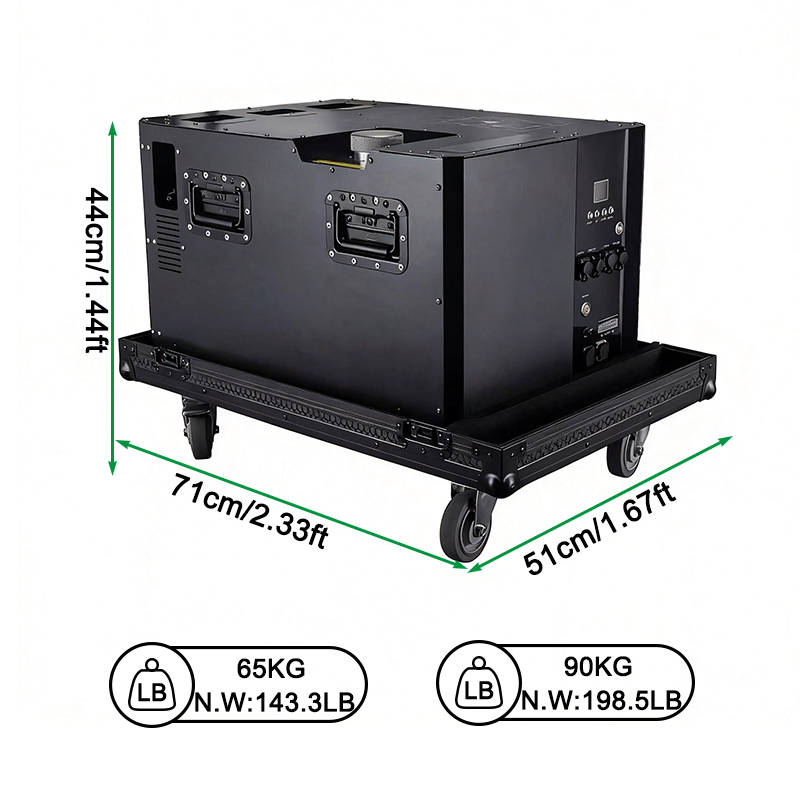

| Dimensions: |
Length 71 cm × Width 51 cm × Height 44 cm (Length 2.33 ft × Width 1.67 ft × Height 1.44 ft) |
| Net Weight (without fuel): |
65 kg (143.3 lb) |
| Fuel Capacity: |
40 L |
| Fuel Consumption (per nozzle): |
60 ml/s |
| Spray Angle: |
5 directions |

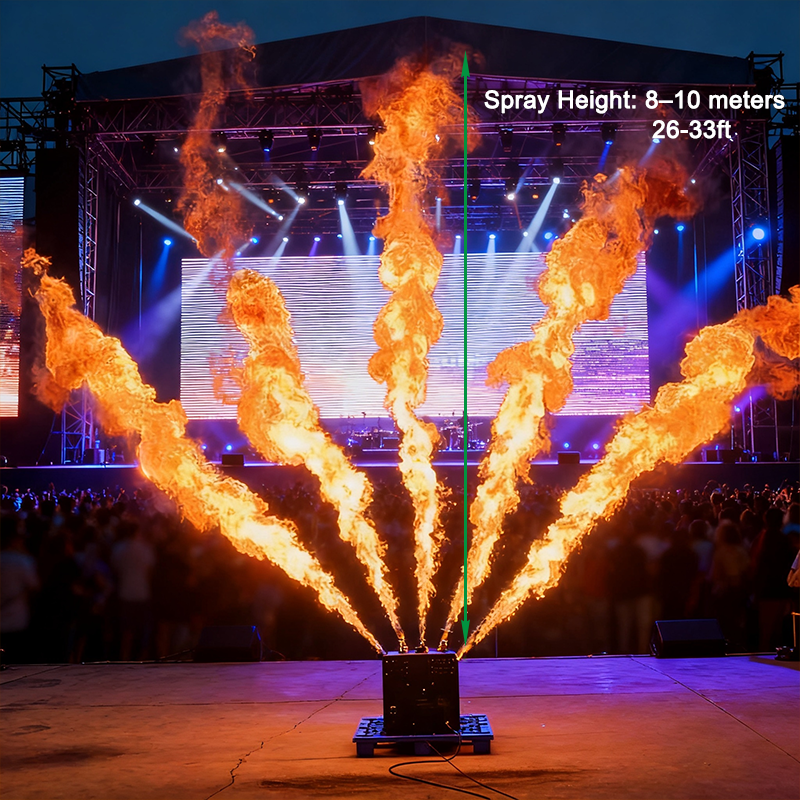

| Spray Height: |
8–10 meters (26.2–32.8 ft) in windless conditions |
| Flight Case Dimensions: |
86 × 59 × 67 cm (2.82 × 1.94 × 2.20 ft) |
| Gross Weight: |
90 kg (198.4 lb) |
| Fuel Injection System: |
Direct liquid fuel injection; flame height reaches 8–10 meters (26.2–32.8 ft) in windless environments |
| Weather Protection: |
IPX3 rain-proof rating combined with a full suite of waterproof connectors ensures reliable operation in rainy weather |
| Fuel System: |
Built-in 40L fuel tank and pumping system; no external gas source required |

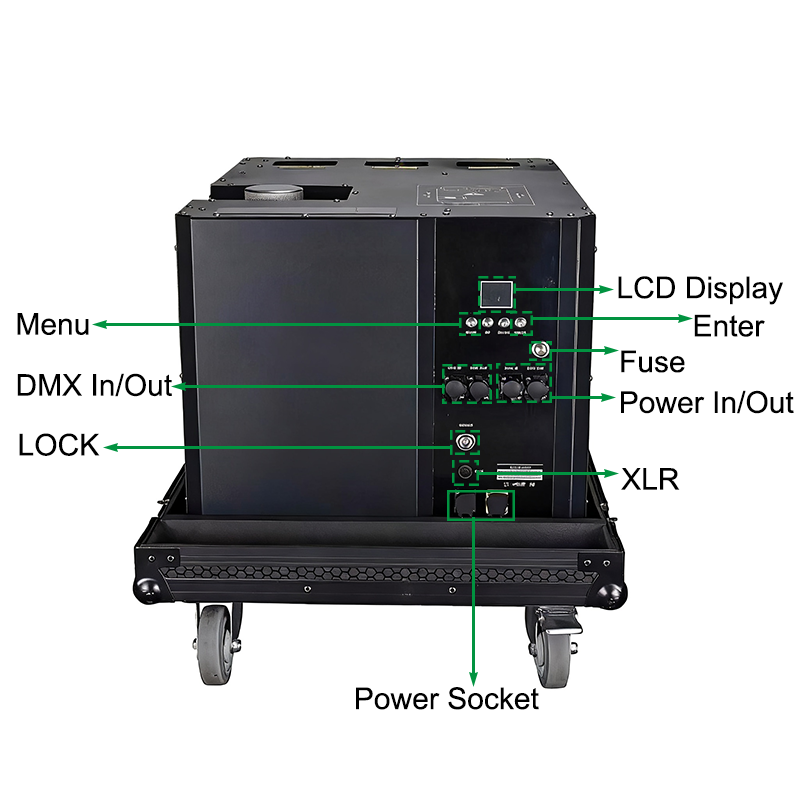

| DMX Interface: |
Dual DMX interfaces (3-pin and 5-pin) with waterproof connectors, compatible with any DMX console |
| Fuel Monitoring: |
Built-in fuel tank level sensor for accurate monitoring of fuel quantity |
| Safety Protection: |
Equipped with a tilt sensor; nozzles automatically shut off if the unit tilts 45 degrees in any direction |
| Chassis Design: |
Full stainless steel chassis with a rain-proof structural design |
| Safety Features: |
Electronic safety lock and "no-fuel" alarm function ensure safe and reliable operation |
| Optional Function: |
Optional fuel supply unit available for remote, automatic refueling |
| Ideal Application: |
Ideal for outdoor venues such as large-scale cultural tourism projects and music festivals |
