Rated Voltage
|
AC110 - 220V
|
|
Configuration
|
Shaking head laser + LED aperture
|
|
Rated Frequency
|
50 - 60Hz
|
|
Rated Power
|
300W
|
|
Laser Color
|
RGB full - color
|
|

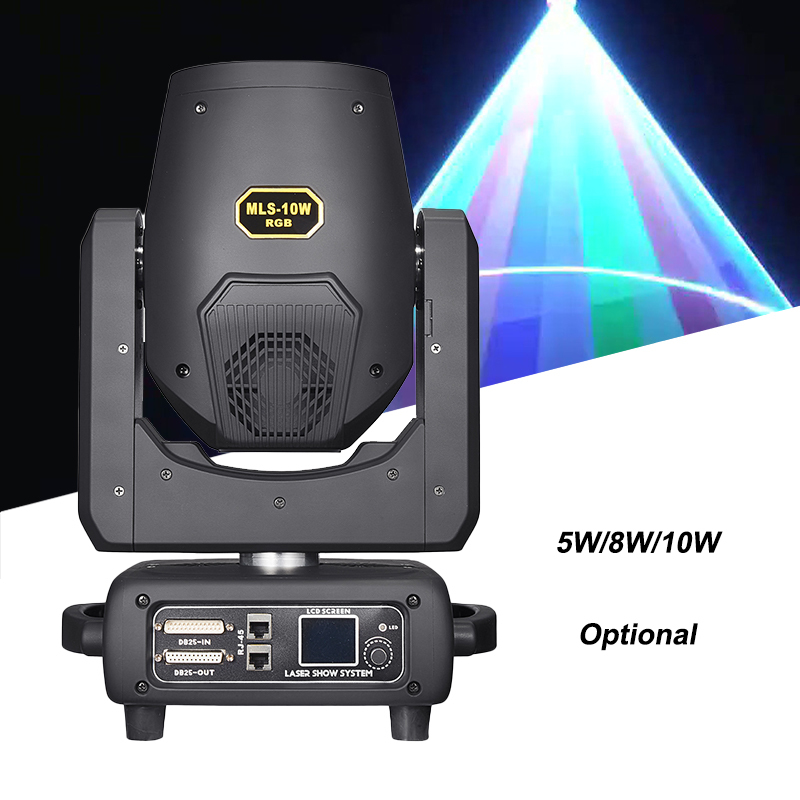

Laser Power
|
RGB 10W / RGB 5W
|
|
Laser Light Source
|
R3W/638nm, G3W/525nm, B4W/447nm / (5W - R1, G1, B3)
|
|

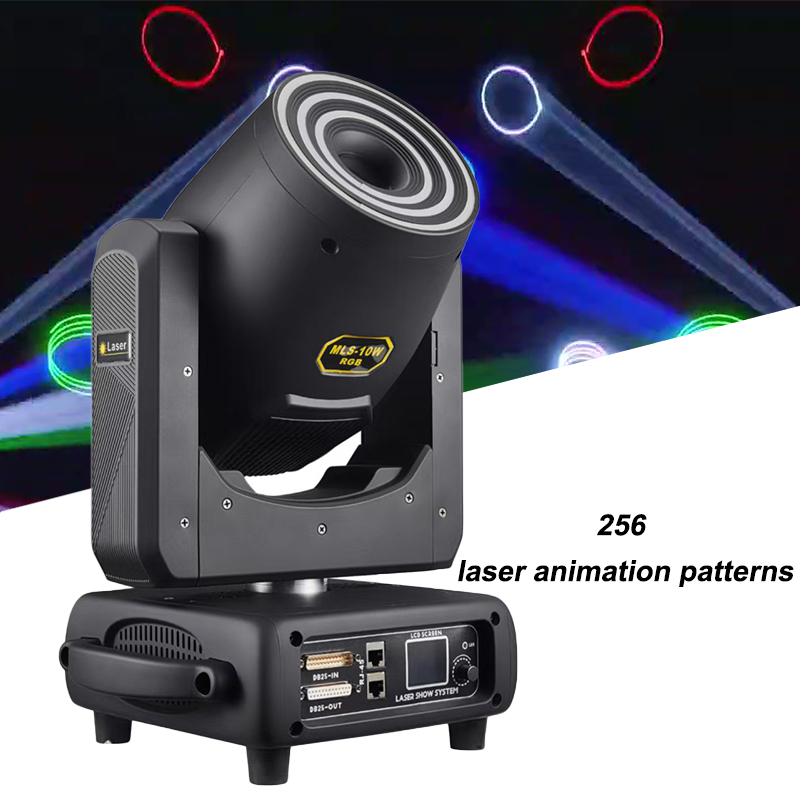

Laser Pattern
|
256 laser animation patterns
|
|
Modulation Signal
|
TTL modulation (analog modulation)
|
|

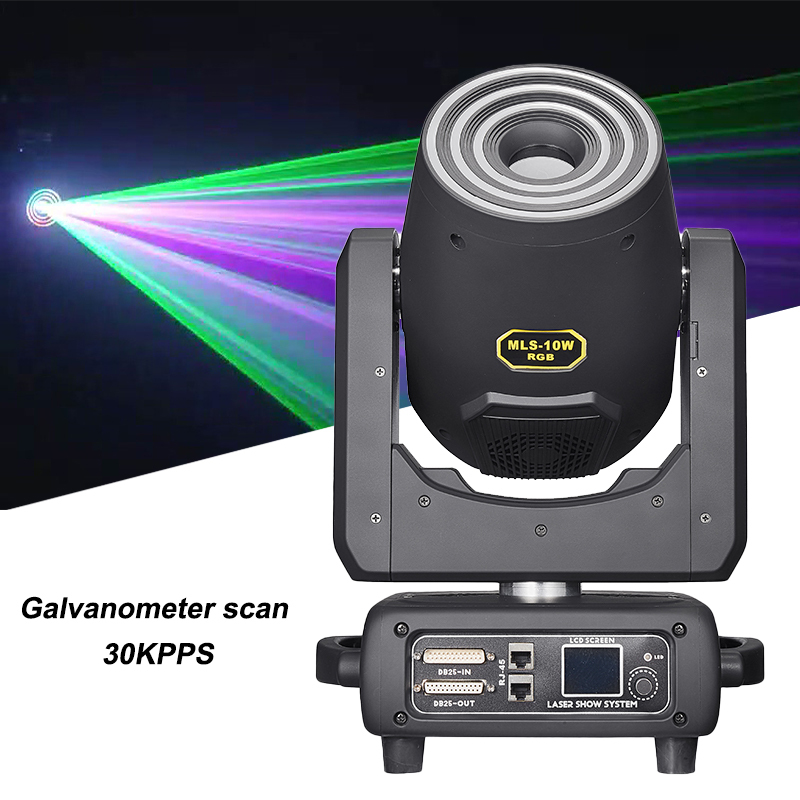

Scanning System
|
Galvanometer scanning at 30KPPS
|
|

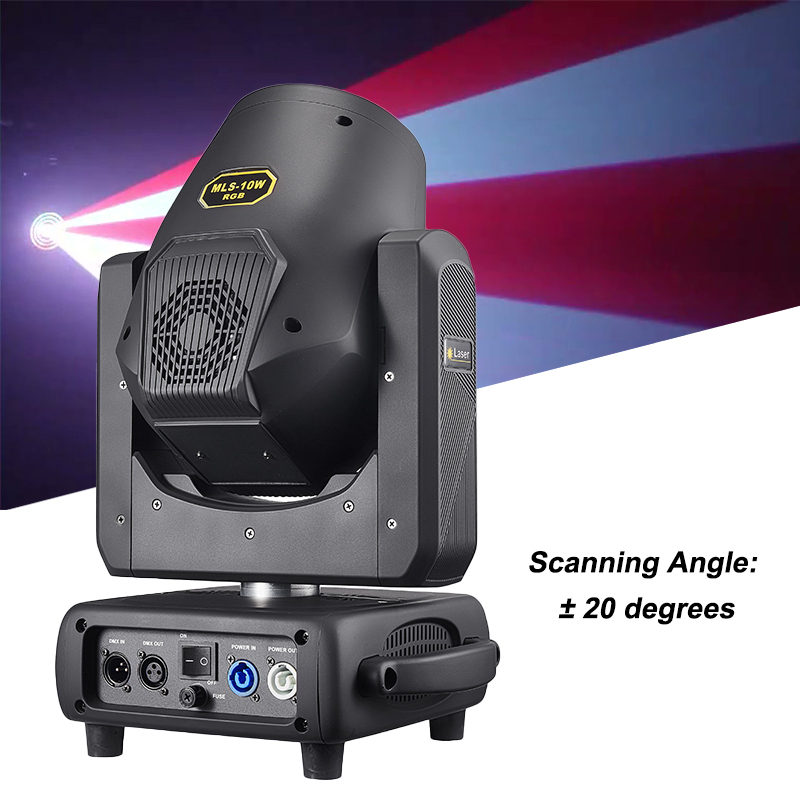

Scanning Angle
|
±20°
|
|
Stepper Motor
|
2 two - phase 57 motors
|
|
Horizontal Rotation
|
540°
|
|
Vertical Rotation
|
270°
|
|
LED Dyeing Configuration
|
Three - layer wheat jazz light strip
|
|
Control Method
|
DMX512, Voice control, Self - propelled, Computer ILDA interface, Ethernet Art Net
|
|
Control Channels
|
20/25 channels
|
|
DMX Special Effects
|
Single pattern mode with functions including pen breakage, flicker, rotation, movement, scrolling, segmentation, gradient drawing,
color change, and resizing
|
|
Function
|
Can be controlled by laser software like pangolin QSFB3/FB4 or Phoenix. ILDA control features an automatic electronic transfer
switch with scanning system error protection and laser shutdown protection
|
|
Instructions for Use
|
Ambient temperature should be maintained between 0 - 35 °C. A dry and dust - free environment helps reduce laser power attenuation
and extend lamp lifespan
|
|
Suitable Venues
|
Nightclubs, bars, concerts, advertising promotions, etc.
|
|
Cooling System
|
Fan - forced cooling for shaking head laser + LED dye light
|
|

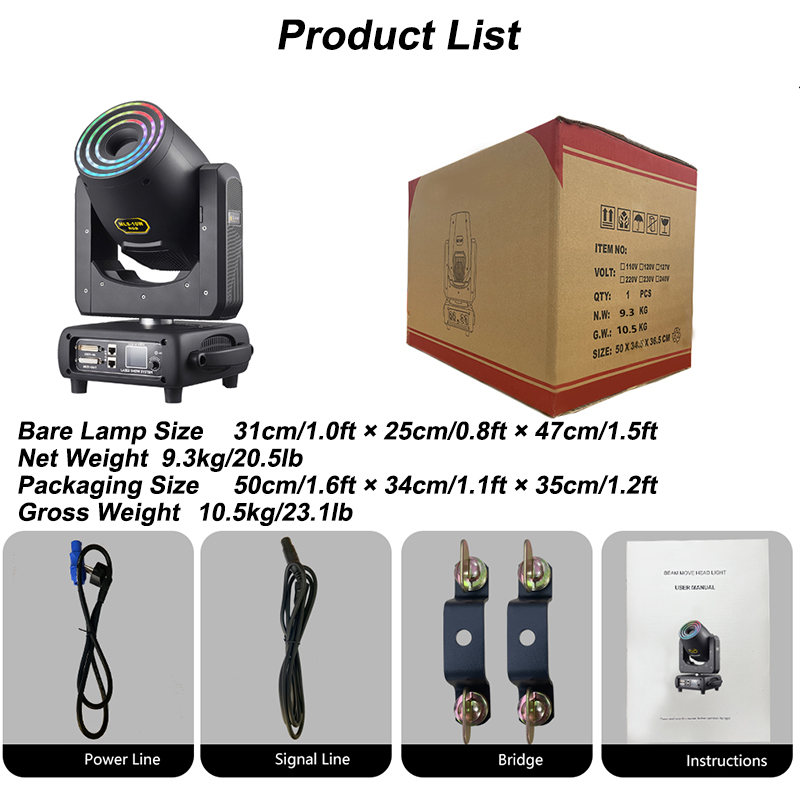

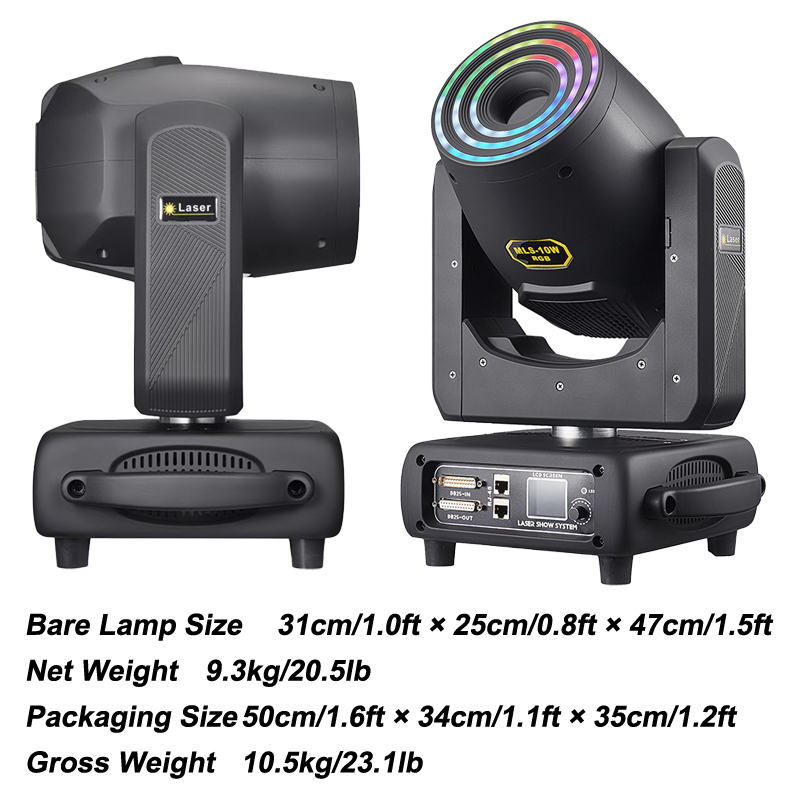

Bare Lamp Size
|
31cm/1.0ft × 25cm/0.8ft × 47cm/1.5ft
|
|
Net Weight
|
9.3kg/20.5lb
|
|
Packaging Size
|
50cm/1.6ft × 34cm/1.1ft × 35cm/1.2ft
|
|
Gross Weight
|
10.5kg/23.1lb
|
|

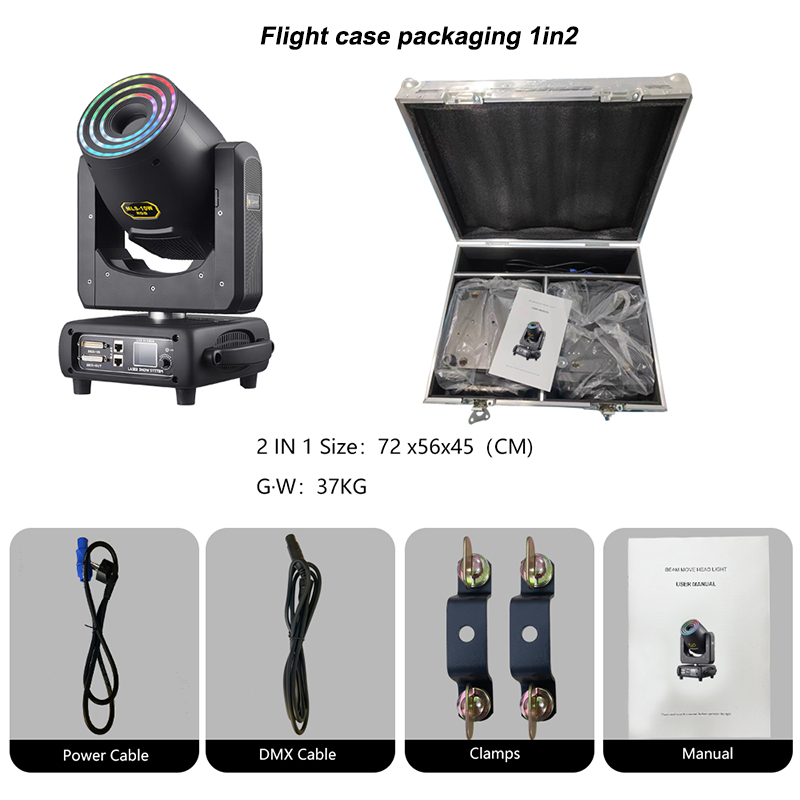

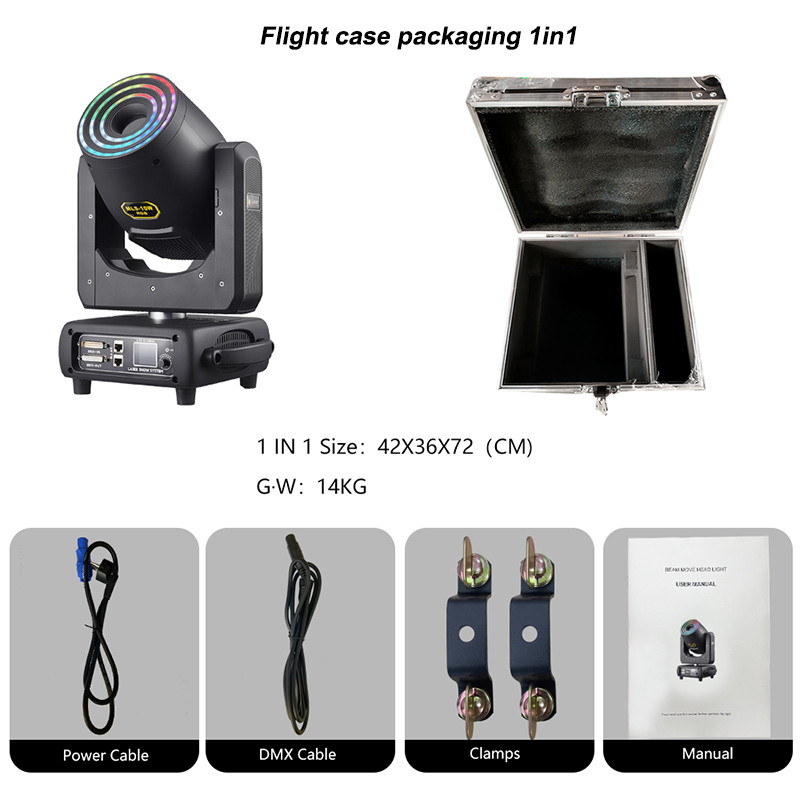

Note before placing an order: Carton packaging is the default
|
