| General |
|
| Product Type |
Multi-Chip LED Fixture |
| Key Feature |
Long life & stable brightness via constant current drive. |
| Optical Performance |
|
| Color Mixing |
Excellent color mixing with multi-chips LED technology. |
| Color Uniformity |
Uniform color mixing without rainbow effect. |
| Flicker |
Flicker-free for camera use. |
| Control & Dimming |
|
| Dimming |
Smooth electronic dimming with true 16-bit resolution. |
| Dimming Options |
1 linear dimming curve + 3 additional dimmer curves. |
| Strobe Effect |
Variable speed strobe (1-30 Hz). |
| DMX Channels |
6/10 Channels (Modes: 4in1/4/8CH, 5in1/9CH). |

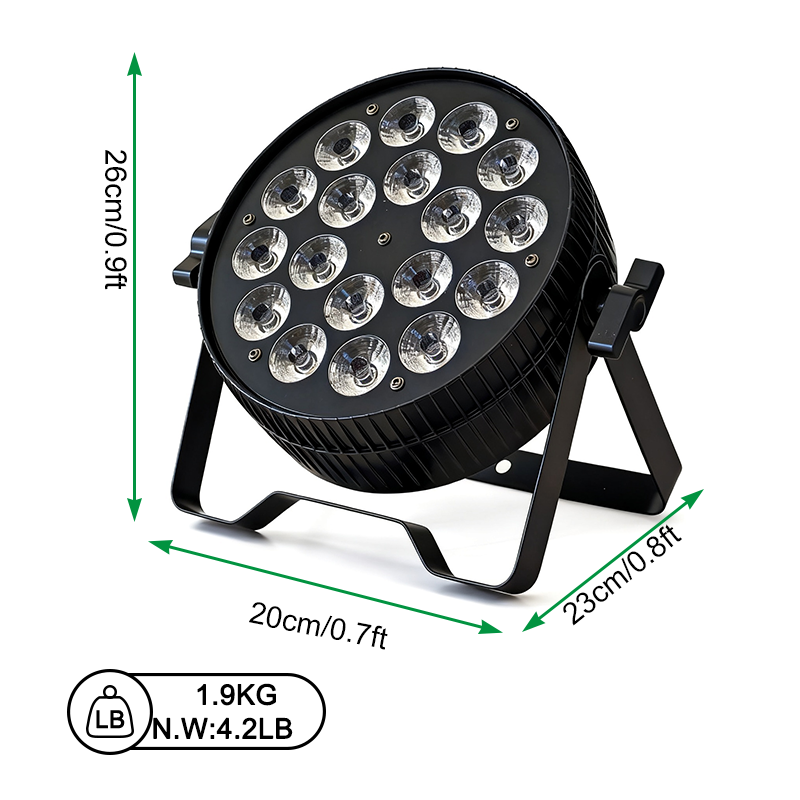

| Physical Design |
|
| Housing Material |
Die-cast Aluminum. |
| Profile Thickness |
120 mm (very slim). |
| Cooling System |
|
| Cooling |
Smart passive cooling system (fanless). |
| Noise |
Silent/Quiet operation. |

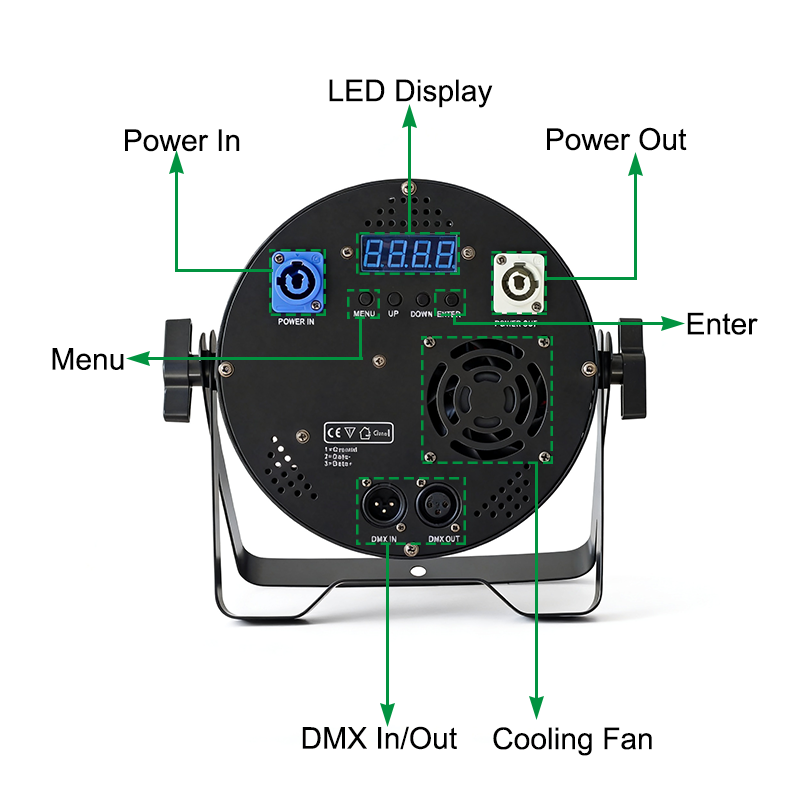

| Connectors |
|
| AC Power |
POWERCON IN/OUT connectors. |
| DMX |
High-quality 3-pin XLR IN and OUT. |

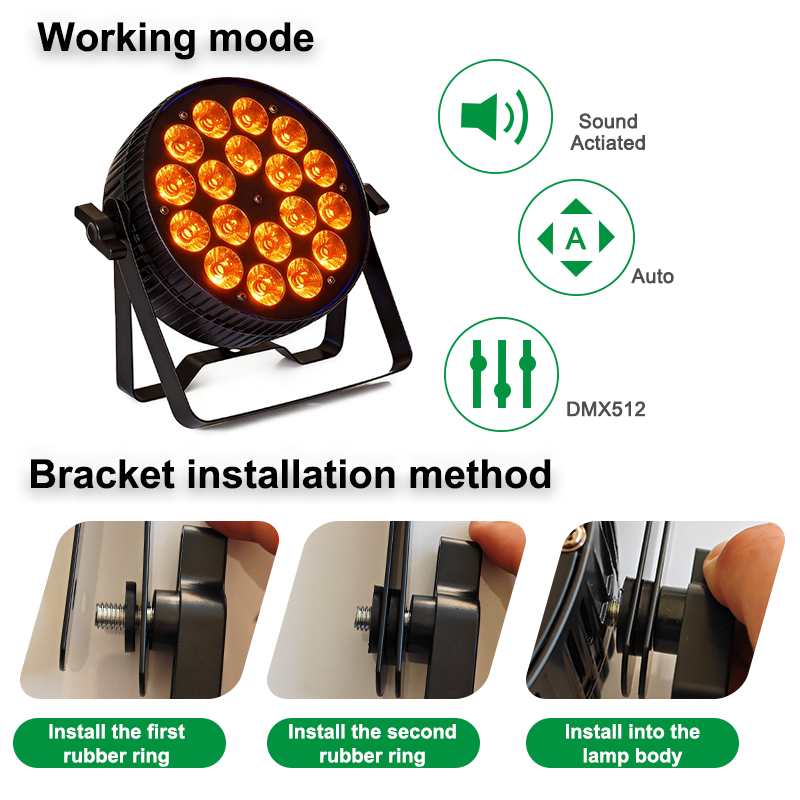

| Operation Modes |
|
| Modes |
DMX-512, Auto, Sound Active, Master/Slave. |
| Control Panel |
4-button LED display on the rear. |
