Light Source
|

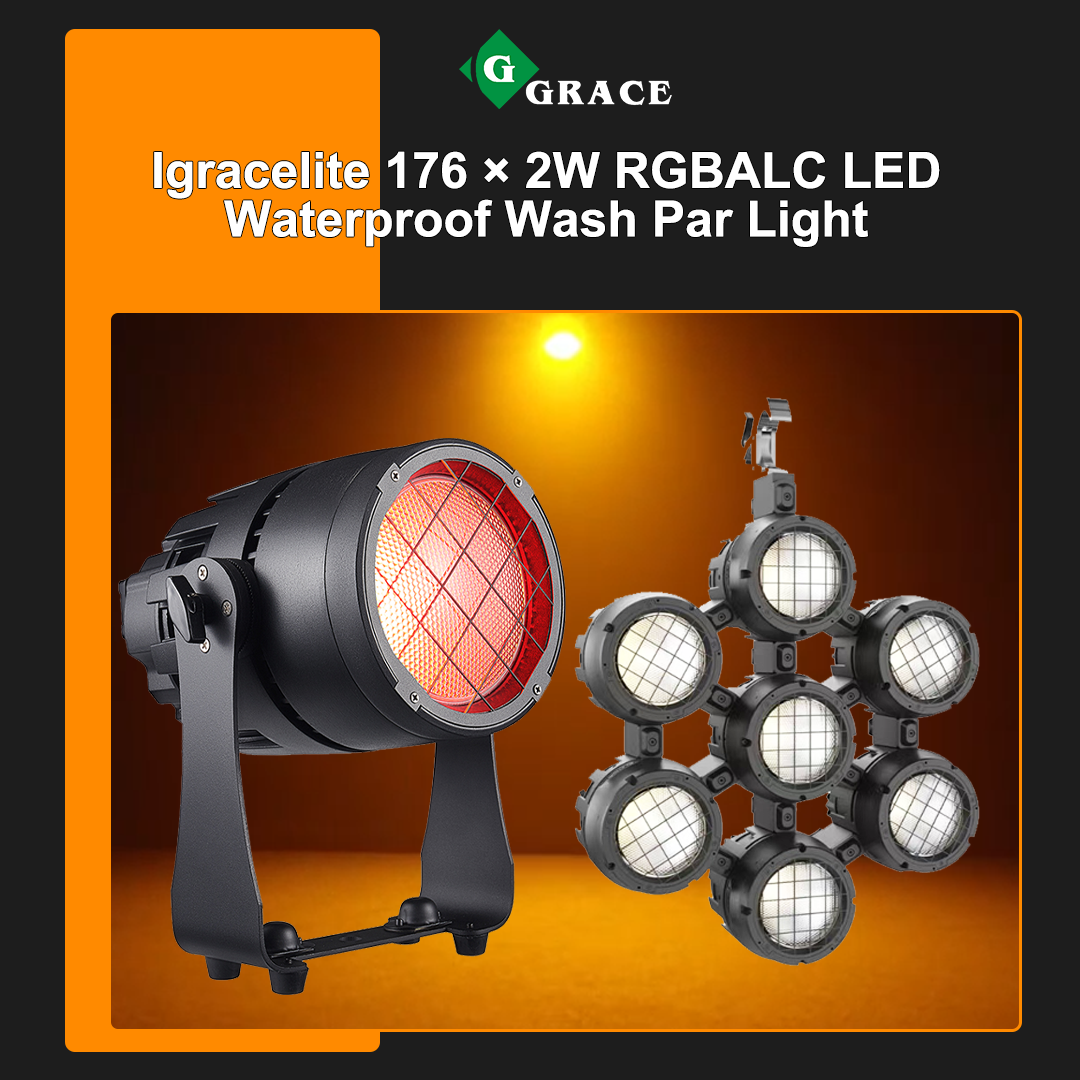

176 × 2W RGBALC LED
|
|
Color Temperature
|
1800 - 8500 K, with fully variable 16 - bit color temperature adjustment
|
|
Total Lamp Output Luminous Flux
|
12700 Lm
|
|
Design Feature
|

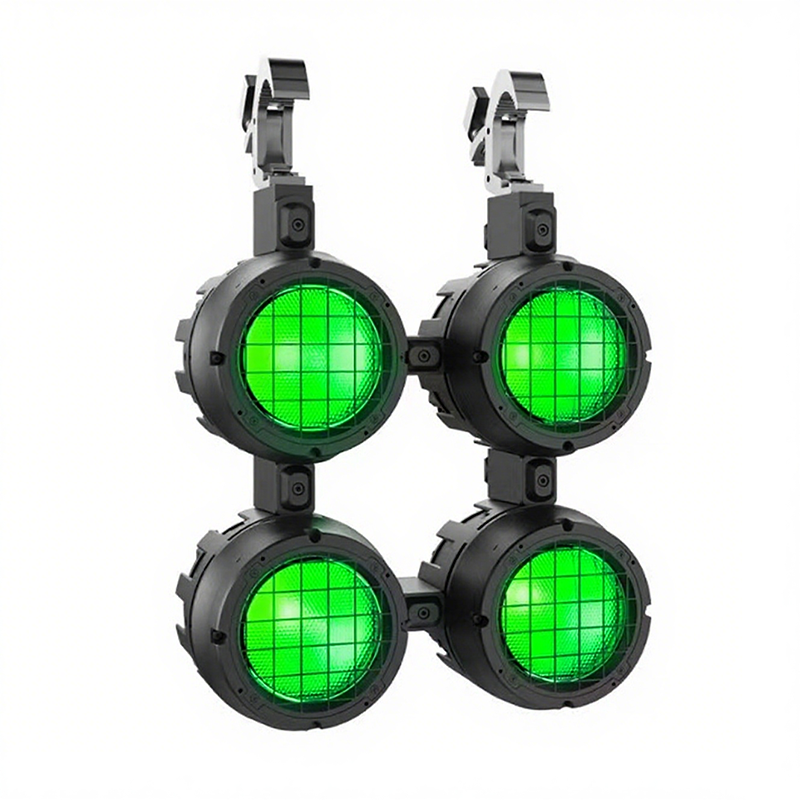

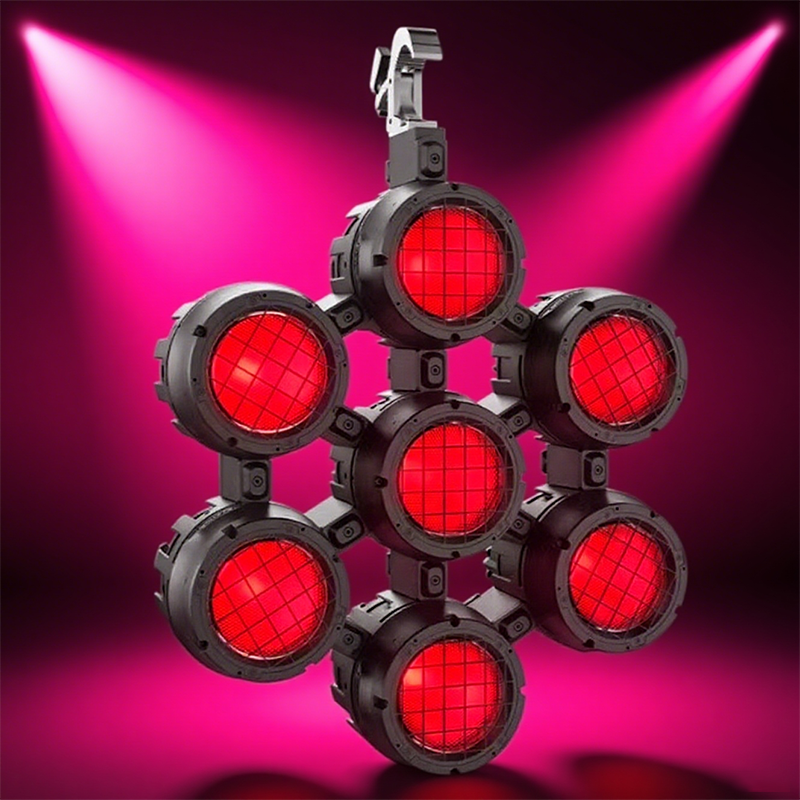

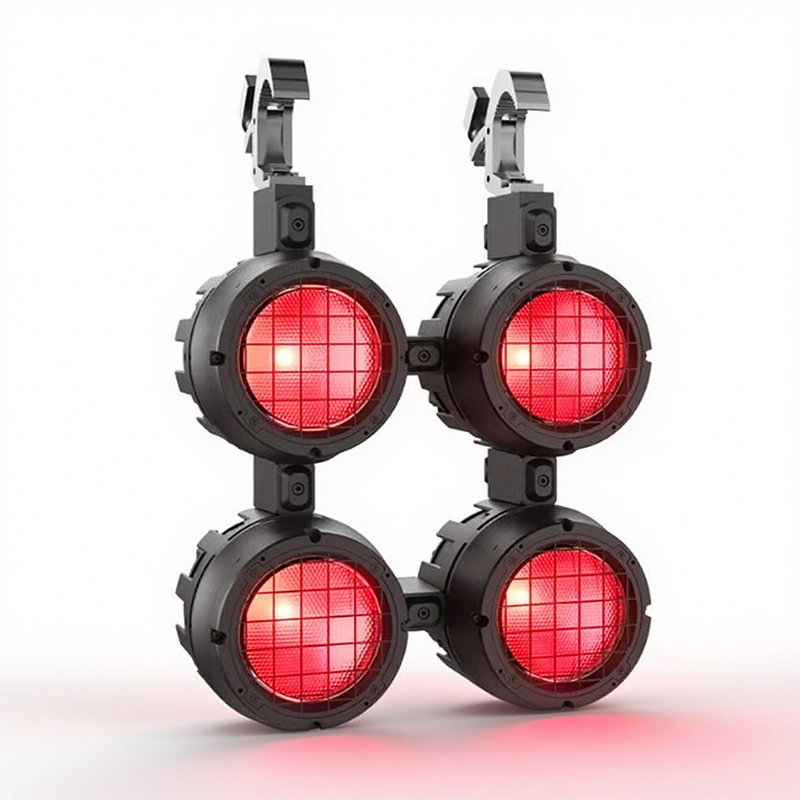

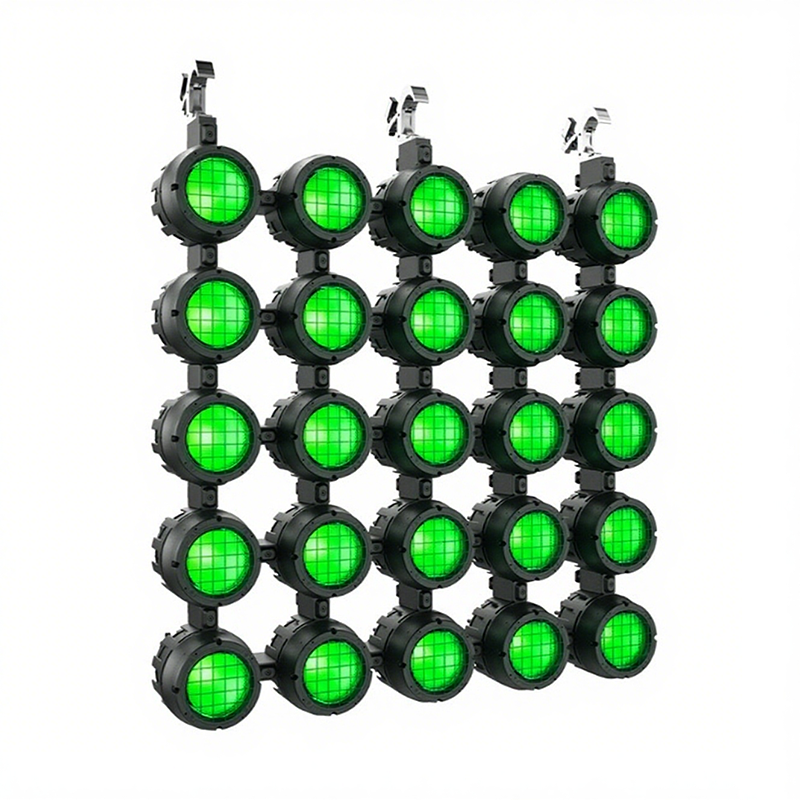

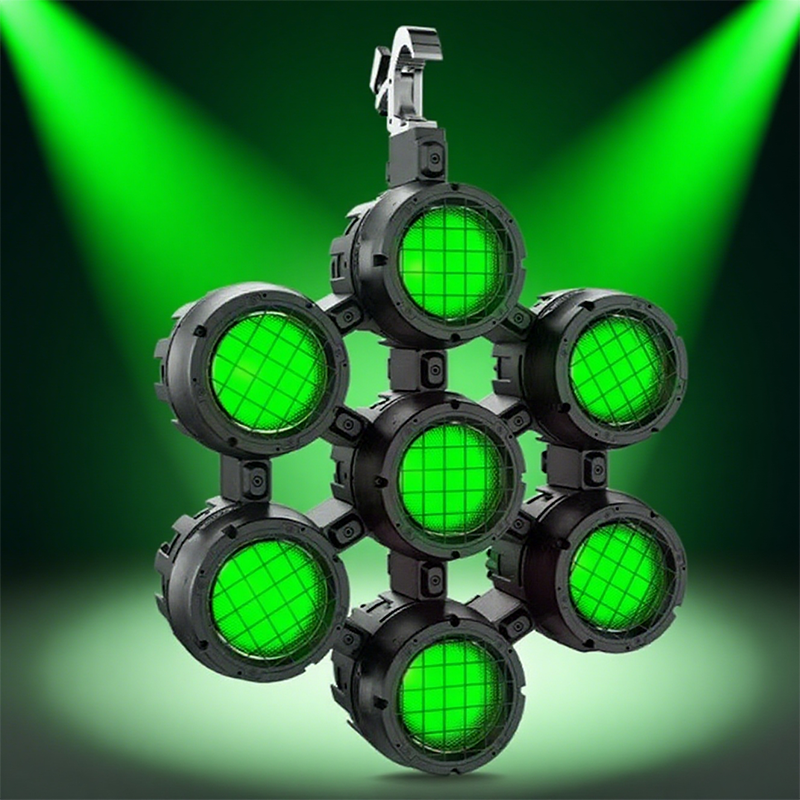

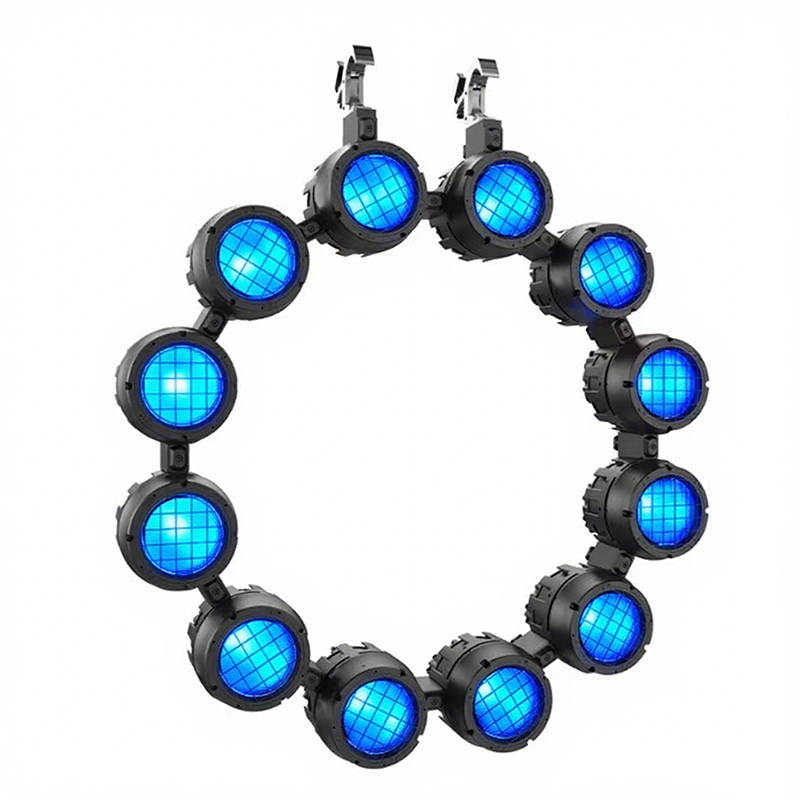

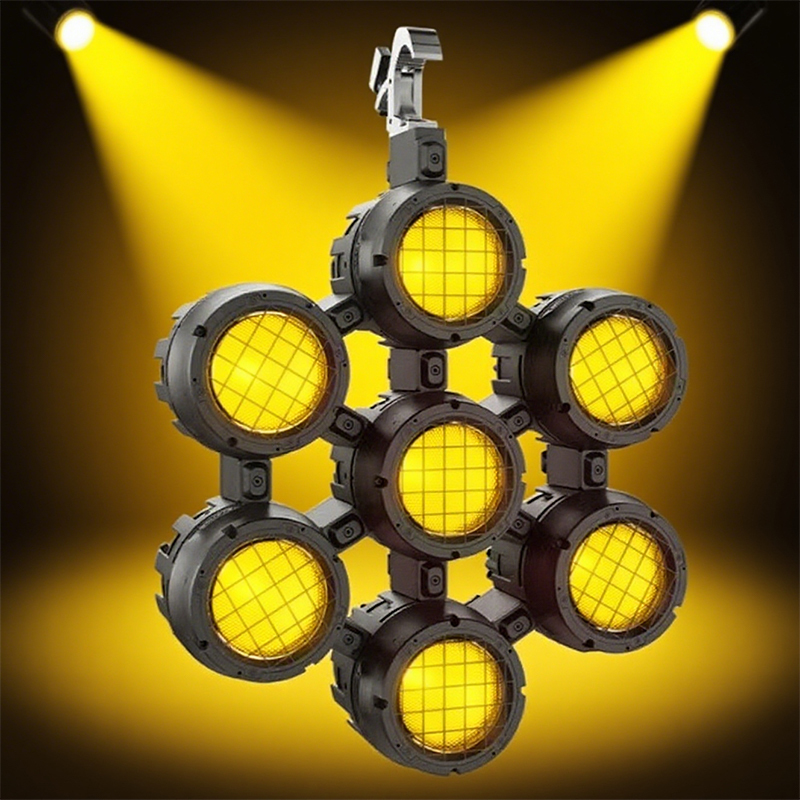

Innovative modular design, suitable for single - lamp single - eye, two - eye or four - eye configurations etc.
|
|
Protection Level
|
IP65, suitable for both indoor and outdoor use, resistant to rain and wind
|
|
Light Source (Optics)
|
176 × 2W, RGBALC six - color light source
|
|
Beam Angle
|
65° (35° / Prism and other optical lenses are optional)
|
|
Total Lamp Output Luminous Flux
|
12700 Lm
|
|
Color Temperature
|
1800 - 8500 K
|
|
Color Rendering Index
|
92+
|
|
Light Source Lifespan
|
20000 H
|
|
Fast Flashing
|
1 - 25 Hz
|
|
LED Refresh Frequency
|
900 - 25 KHz
|
|
Control Channels
|
1 / 2 / 3 / 4 / 6 / 7 / 13 / 21 / RGB - 10 / RGB - 15 / CMY - 10 / CMY - 15CH
|
|
Protocol
|
Standard DMX512 protocol, RDM protocol
|
|
Data Connection
|
Three - core XLR input/output
|
|
Display
|
OLED display operation panel
|
|
Software
|
Convenient and fast software upgrade via DMX signal. Intelligent temperature protection to ensure LED service life
|
|
Structure
|
Aluminum alloy die - casting structure
|
|
Heat Dissipation
|
Natural heat dissipation
|
|
Corrosion Resistance
|
Salt corrosion resistance
|
|
Protection Level
|
IP65
|
|
Operating Environment
|
-40℃ - 45℃
|
|
Starting Environment
|
-20℃ - 45℃
|
|
Input Voltage
|
AC 100V - 240V, 50/60Hz
|
|
Rated Power
|
300W
|
|
Lamp Size
|
266mm/0.9ft × 151mm/0.5ft × 301mm/1.0ft
|
|
Net Weight
|
2.8 KG/6.2lb
|
