Overall Feature
|
Compact in size yet powerful in performance
|
|
Core Technology
|

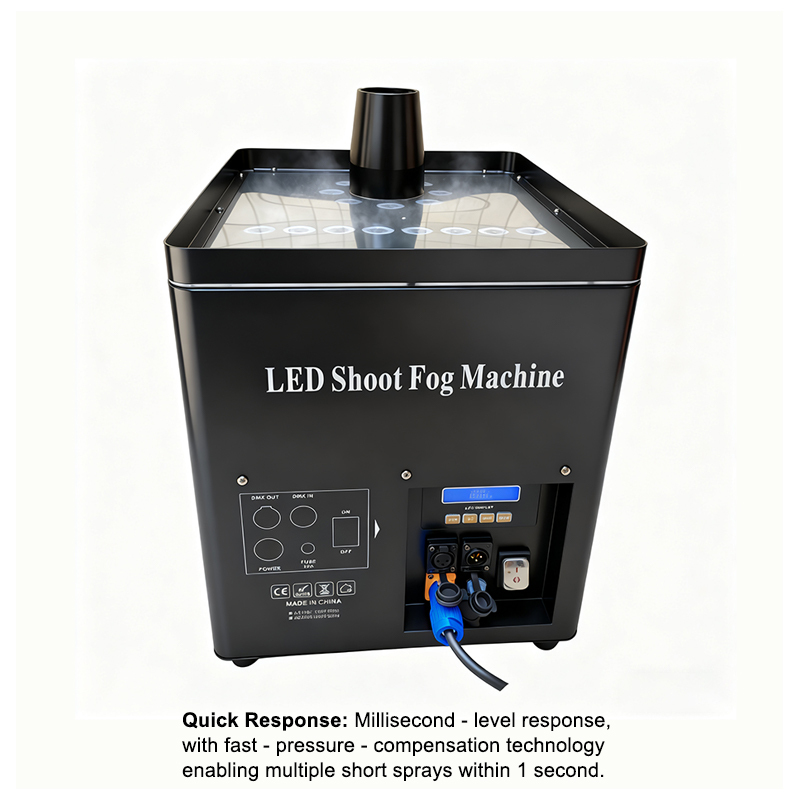

Equipped with automatic constant - pressure and dual - tube doubling technologies, enabling fast startup, strong explosive force,
and high - volume smoke output. The fast - pressure - compensation technology allows for multiple short sprays within 1 second
|
|
Structural Design
|
Features a compact structural design, making it smaller and more delicate. The detachable oil tank is convenient for carrying and
flexible for installation, supports hanging, and enables multi - angle spraying
|
|

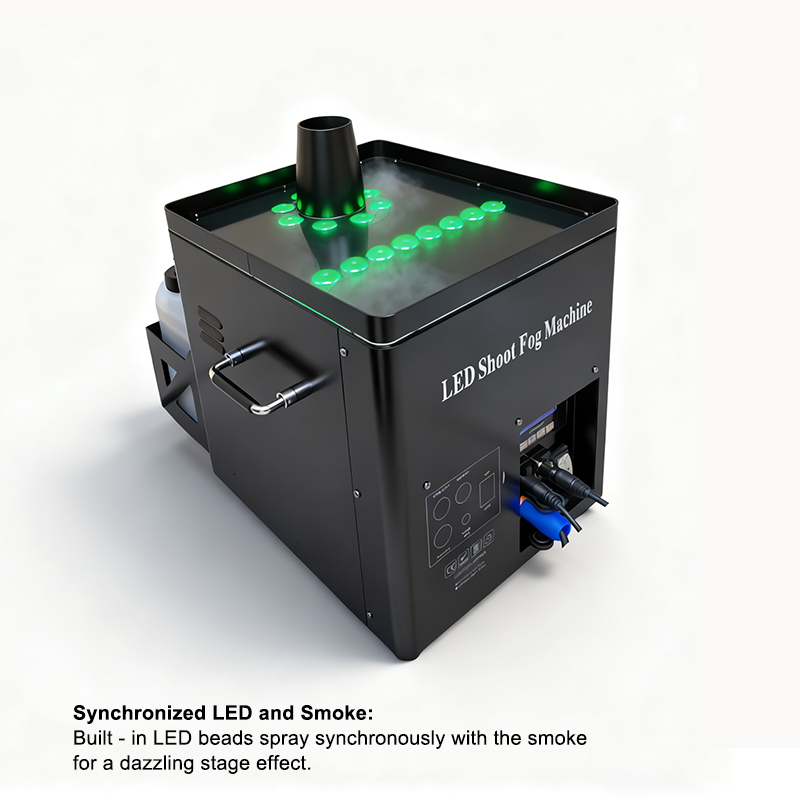

Stage Effect
|
Built - in LED beads spray synchronously with the smoke, creating a dazzling stage effect
|
|

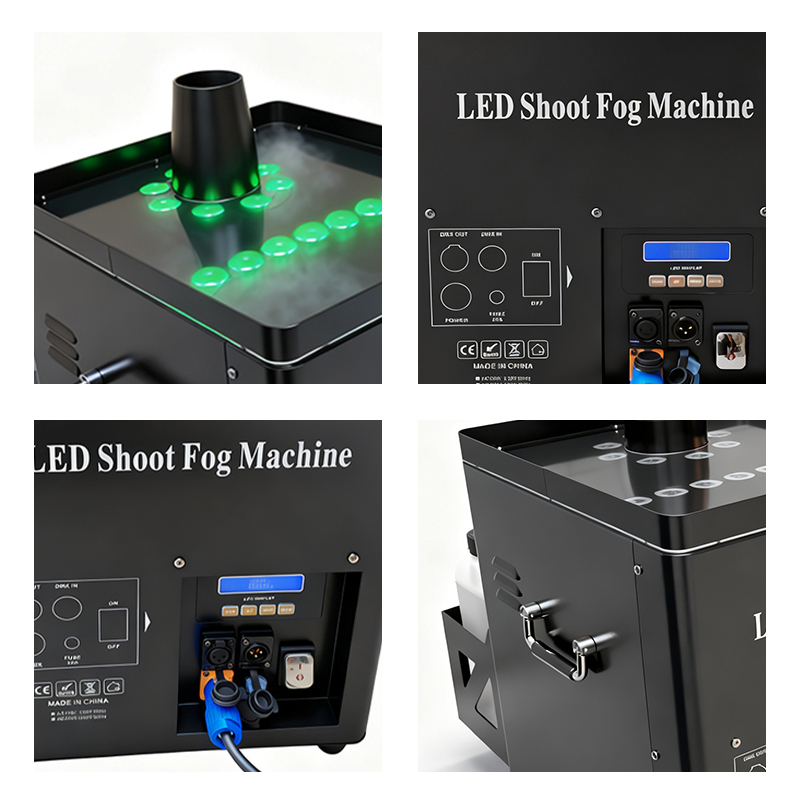

Operation Interface
|
Adopts an LCD color - screen touch panel, providing an intuitive and convenient human - machine interaction experience. The
operation is simple, and functions are clear at a glance
|
|
Voltage
|
AC 220 - 240V, 50/60Hz /AC 110V
|
|
Current - limiting Fuse
|
25A/250V
|
|
Power
|
3000W / 1800W (low - power mode)
|
|
LED Specification
|
9W x 16 pieces
|
|
Longest Output Time
|
85 (unit not specified, presumably seconds)
|
|

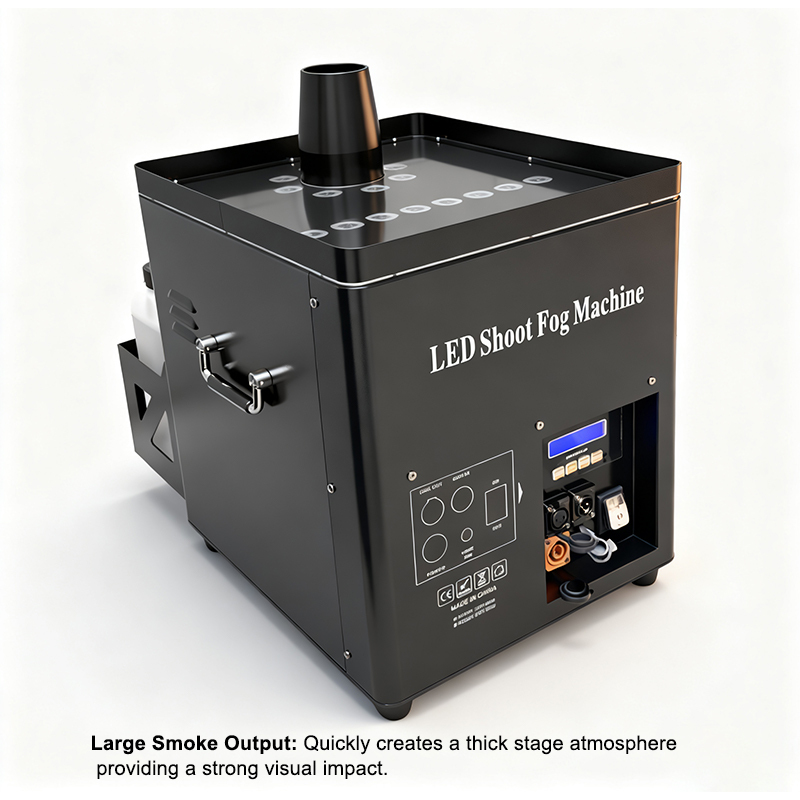

Smoke Output
|
90000 cubic feet per minute
|
|
Maximum Spraying Distance
|
12m / 39.4 ft
|
|
Fuel Tank Volume
|
5L
|
|
Oil Consumption Rate
|
1L per 3 minutes
|
|
DMX Channels
|
11/1CH
|
|

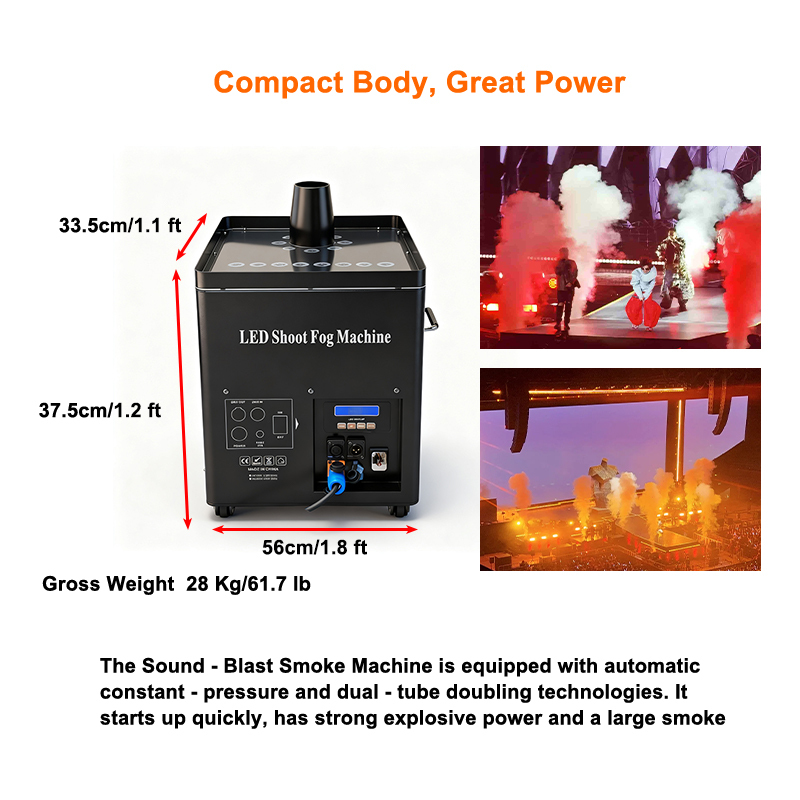

Product Dimensions
|
56cm/1.8 ft × 33.5cm/1.1 ft × 37.5cm/1.2 ft
|
|
Net Weight
|
23.5 Kg/51.8 lb
|
|
Packaging Dimensions
|
64cm/2.1 ft × 43cm/1.4 ft × 49cm/1.6 ft
|
|
Gross Weight
|
28 Kg/61.7 lb
|
|
Consumables
|
Stand - alone air - column oil
|
|
Waterproof Performance
|
The machine can resist rain, but it is not suitable for fixed outdoor installation in cultural and tourism projects as it cannot
ensure long - term waterproofing. It is only suitable for occasional waterproof and rain - proof use during performances
|
