| Voltage / Frequency: |
90-130V / 180V-240V / 50-60Hz |
| Bulbs: |
36 × 10W RGBW |
| Power: |
360W |
| Control Signal: |
DMX 512, with automatic procedure in sets |
| Channel: |
13/15CH, DMX512 channel control |

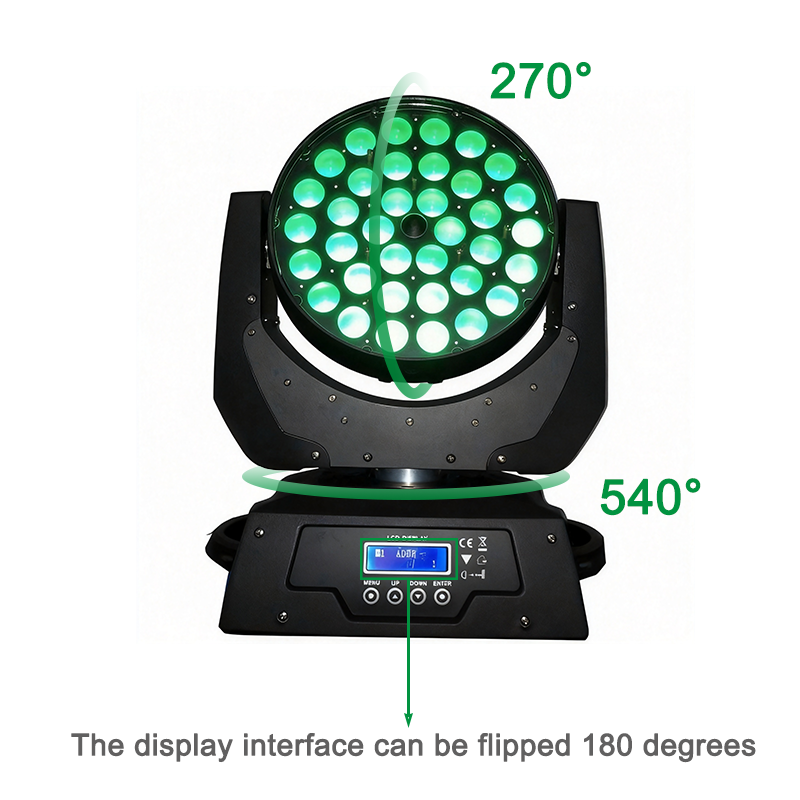

| Motion: |
Pan level 540°, Tilt vertical 280°, horizontal and vertical use electronic replacement function |

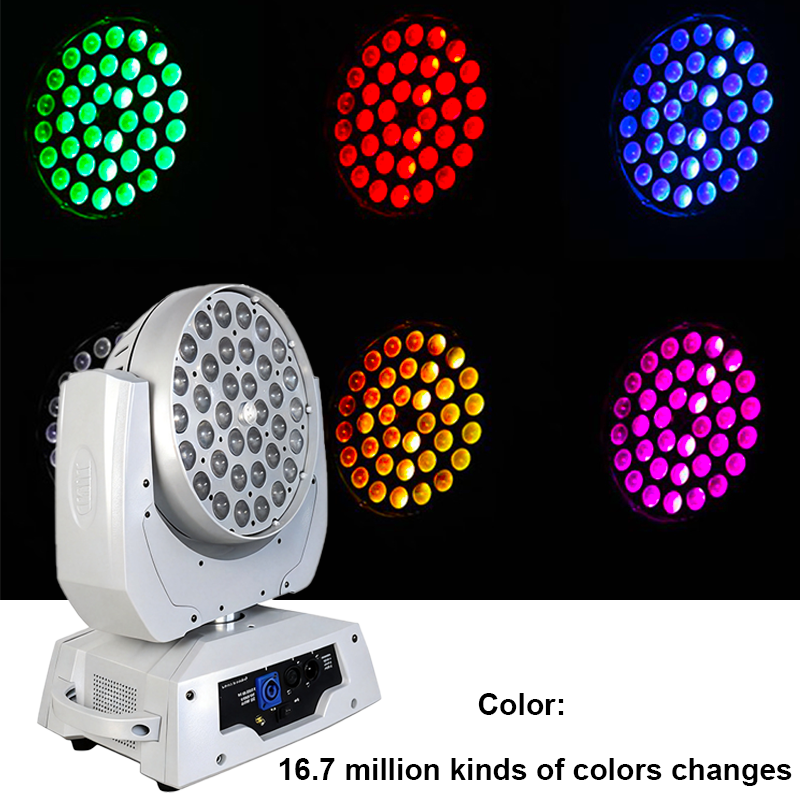

| Color: |
16.7 million kinds of color changes |
| Light Adjustment: |
0-100% electronic dimming, various colors can move independently or mix color tones |
| Strobe: |
1-25 times/second high-speed strobe, with single-color mixing color strobe |
| Zoom Angle: |
105-30 degree adjustable |
| Functional Description: |
Controller can control the moving head light’s three axes (PAN axis, TILT axis, and Zoom axis) |

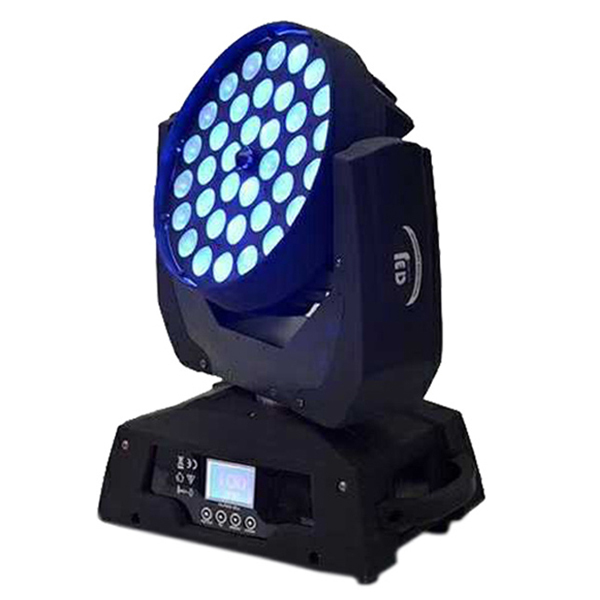

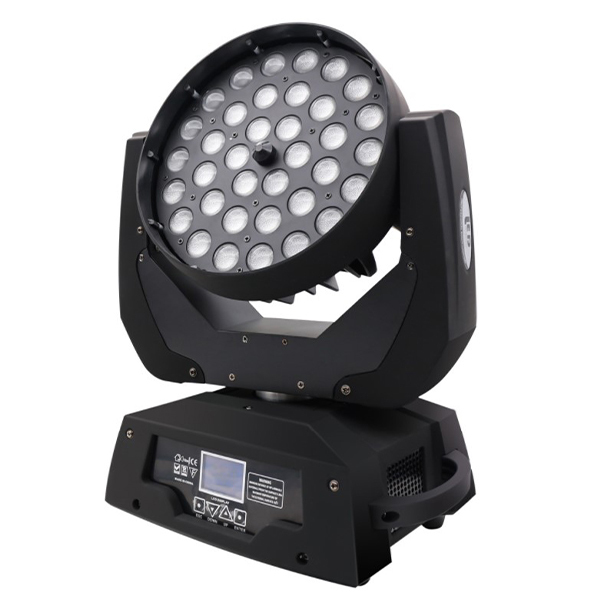

| LED Lamp Type: |
RGBW 4-in-1 Multi-Chip LED Lamp and 3-in-1 Tricolor RGB LED Moving Head |
| Color Function: |
Supports 3-color and 4-color modes |
| DMX Mode: |
DMX mode with adjustable DMX address |
| Self-Propelled Mode: |
Supports master-slave setup |
| Sound Mode: |
Supports master/slave sound control mode |

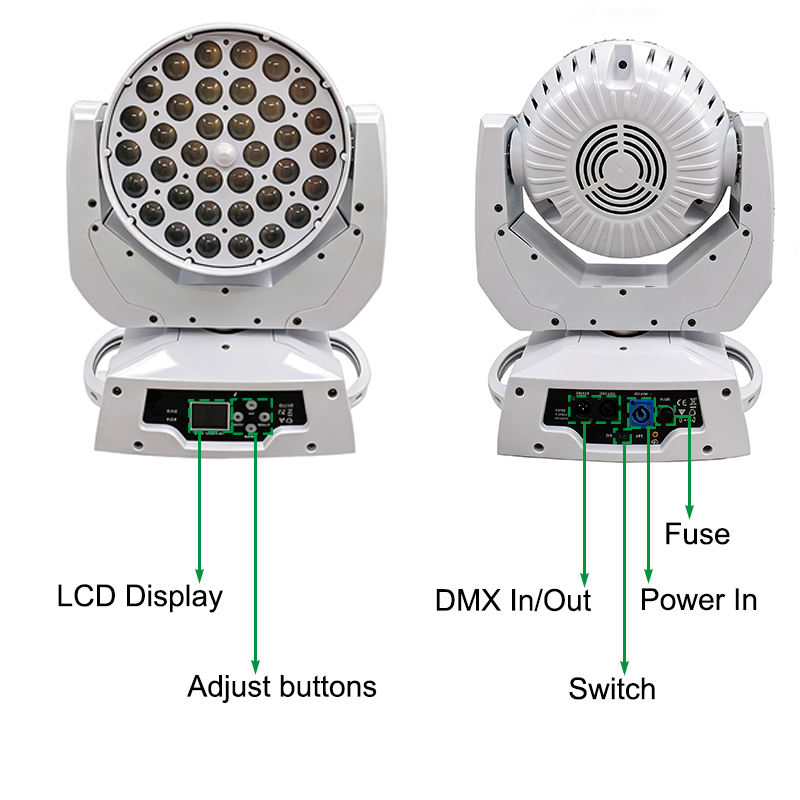

| Mode Selection: |
Can be set by panel or DMX512 controller (must be set to DMX mode) |
| Strobe Function: |
Includes strobe, random frequency flash, fast/slow strobe output, slow forward and faster strobe modes |
| Color Effect: |
Supports color jump and gradient effects |
