| Technican Specification |
| Power Input |
100-240V, 50/60Hz |
| Power Dissipation |
350W |
| IP Level |
IP20 |
| Effect Wheel |
Rotation eight prism, effect move, frost |
| Lamp |
MSD 230w |
| Lens Peripheral Auxiliary Light |
Included |
| Lens Peripheral Fill Light |
27 x 0.5W RGB three-in-one LEDs |
| Control |
Control switch bulb or manual |
| Ballast |
Electronic ballast (380V input) |
| Strobe |
Independent strobe channel, 1-10 times/second, built-in macro function |
| Dimming |
Independent dimming channel, 0-100 linear precise dimming |
| Atomization |
Independent linear atomization |
| Special Effects |
8+16+24 (optional 8+16) prism effect, magnification effect, prism and arbitrary angle positioning, rotation, prism pattern combination, built-in program, precise electric focus |

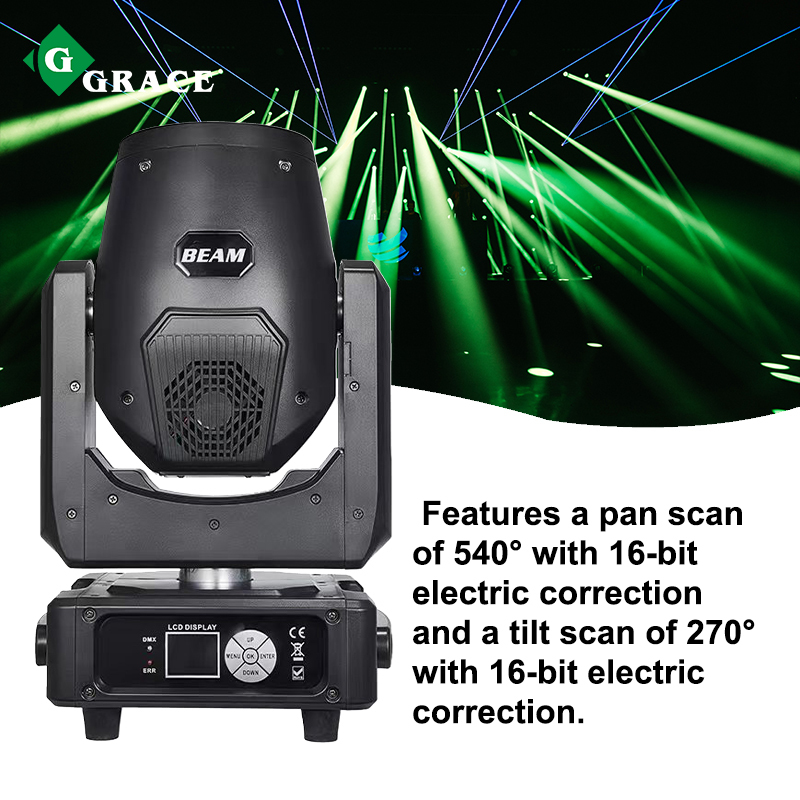

| X/Y Axis Movement |
X axis 540°, Y axis 280°, automatic error correction function for X/Y axis, independent X/Y axis speed adjustment, rotation fine-tuning function |
| X/Y Axis Resolution |
8/16 bit |
| Control and Programming |
18 standard DMX512 channels |
