| 1 |
Protocol & Channels |
Supports DMX512 digital output with 512 control channels |
| 2 |
Output Ports |
2 optically isolated independent drive signal output ports |
| 3 |
Control Capacity |

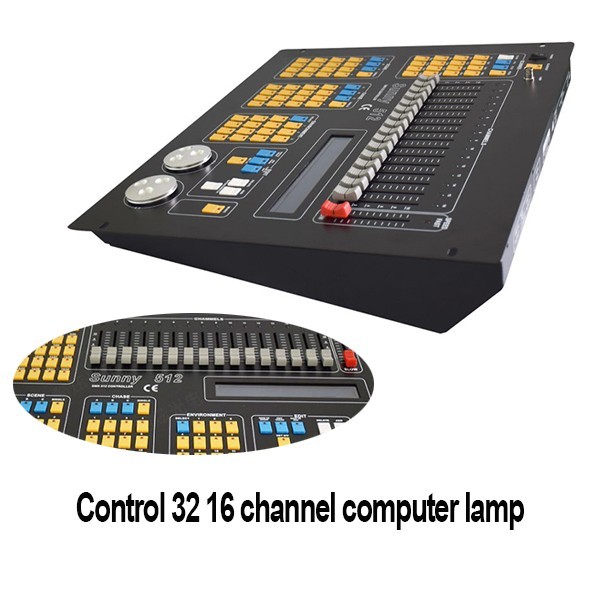

Can control 32 units of 16-channel computer lamps |
| 4 |
Program Storage |
1,600 light program step storage capacity |
| 5 |
Program Capacity |
48 light programs, each supporting up to 100 steps |
| 6 |
Parameter Control |
Independent setting for each speed gradient parameter |
| 7 |
Control Modes |
Optional music synchronization or manual speed control |
| 8 |
Simultaneous Operation |
Can run 4 light programs + 48 scenes + operate 32 computer lamps concurrently |
| 9 |
Data Retention |
Maintains stored data during shutdown |
| 10 |
Product Size |
48.1*40*10.9cm/1.57*1.31*0.35 |
