Design Feature
|
Lightweight design, weight is 1/3 of traditional lights, reducing handling and installation burden. Flexible installation for more
flexible performances. Unique waterproof structure suitable for various outdoor environments.
|
|
Mainboard Program
|

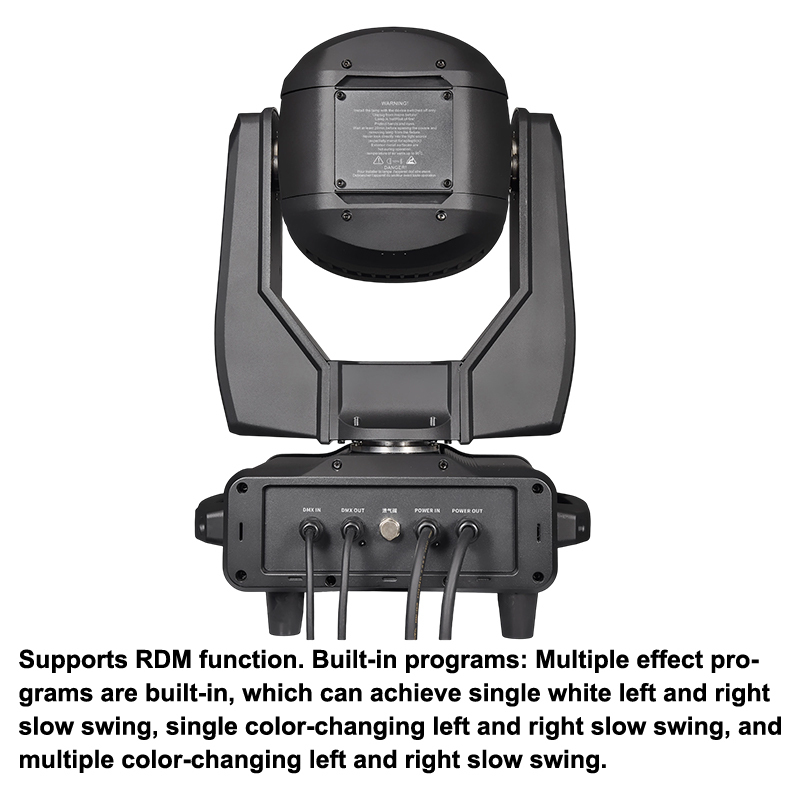

Supports RDM function. Built - in multiple effect programs, including single - beam white left - right slow swing, single - beam
color - changing left - right slow swing, and multi - beam color - changing left - right slow swing.
|
|
Voltage
|
110V - 240V 50 - 60Hz
|
|
Light Source
|
350W/380W
|
|
Total Power
|
450W/480W
|
|
Color
|

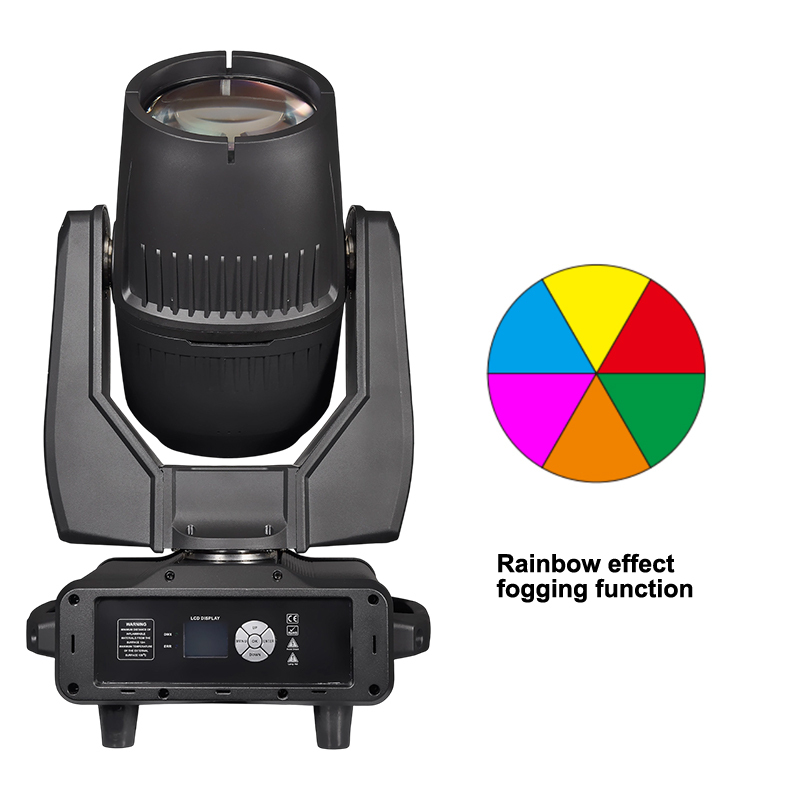

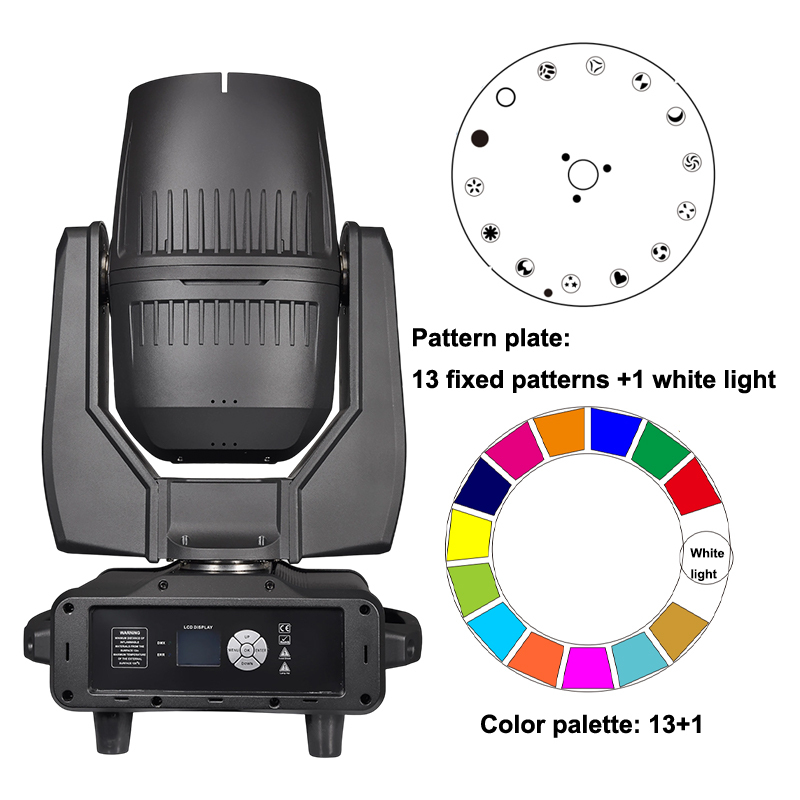

Color wheel: 13 + 1 + colorful rainbow effect + atomizing function
|
|
Pattern
|
Pattern wheel: 13 fixed patterns + 1 white light
|
|
Focusing
|
Electronic linear high - definition dynamic focusing, using high - density glass optical lens.
|
|
Dimming Curve
|
0% - 100% linear dimming
|
|
Beam Angle
|
1.8°
|
|
Channels
|
16/20 international standard DMX512 channels
|
|
XY Motor
|
Three - phase electric drive, powerful, faster, more stable, and quieter
|
|
Control Modes
|
DMX 512, auto - run, master - slave auto - run
|
|
Prism
|
8 - prism / 8 + 16 - prism superposition rotatable, macro function
|
|
Fan
|
Excellent driving performance, extremely low noise
|
|
Display
|
LCD display adaptable to different installation positions
|
|
Horizontal/Vertical
|
The waterproof light can perform 540° horizontal or 270° vertical scanning, fast and stable. The light is equipped with an
intelligent photoelectric reset correction system, which can automatically return to the original position in case of accidental
movement. Also has horizontal and vertical locking buttons for convenient maintenance and handling.
|
|
Cooling System
|
Using CFD software to analyze and calculate the heat flow of the light, designing a low - noise cooling system. Excellent fan
driving performance, extremely low noise.
|
|
Waterproof Level
|
IP65
|
|
Carton Package Dimensions
|
64.5cm/2.1ft × 49cm/1.6ft × 42cm/1.4ft
|
|
Carton Package Weight
|
24kg/52.9lb
|
|
One - for - two Flight Case Package Dimensions
|
86cm/2.8ft × 41cm/1.3ft × 79cm/2.6ft
|
|
One - for - two Flight Case Package Weight
|
69.4kg/153.0lb (with folding lamp hook)
|
|
Two - piece ATA Case with Lights Weight
|
72 Kg/158.7lb
|
|
Appearance
|
The light is made of full die - casting + high - strength engineering nylon plastic, with anti - UV treatment, high - temperature
resistance, and anti - aging. It is lightweight, and uses wind - direction drainage and temperature intelligent monitoring
technology for fast heat dissipation.
|
|
Features
|
Compact size but high energy output, thick light beam. The waterproof beam light meets high - standard performance in optics,
structure, and appearance. It uses advanced high - brightness light source technology, optical technology, and rigorous industrial
design to ensure a perfect lighting design.
|
