Category
|
Key Details
|
|
Core Protocols
|
Artnet, sACN, HAHAN, MA2-NET; RDM (Remote Device Management) support
|
|
DMX Universe Management
|
Cloning, routing, interception; DMX512 system detection (usable as a detector)
|
|

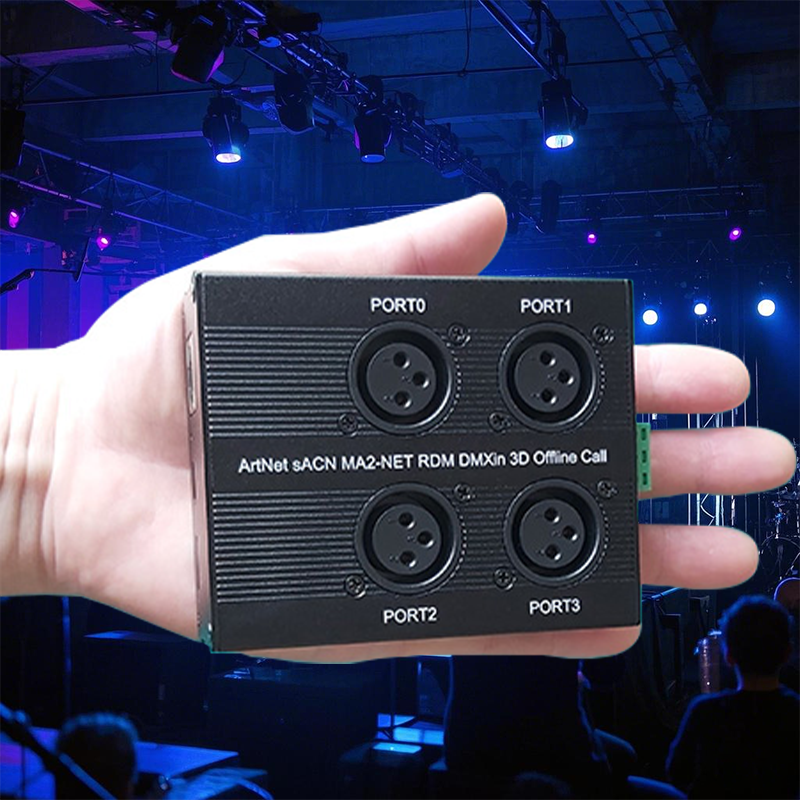

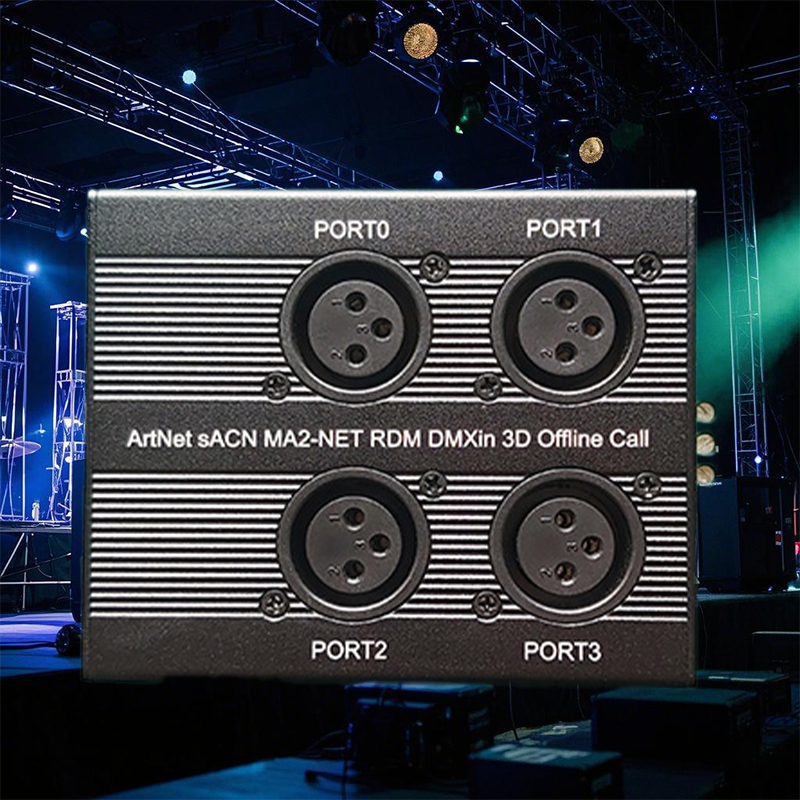

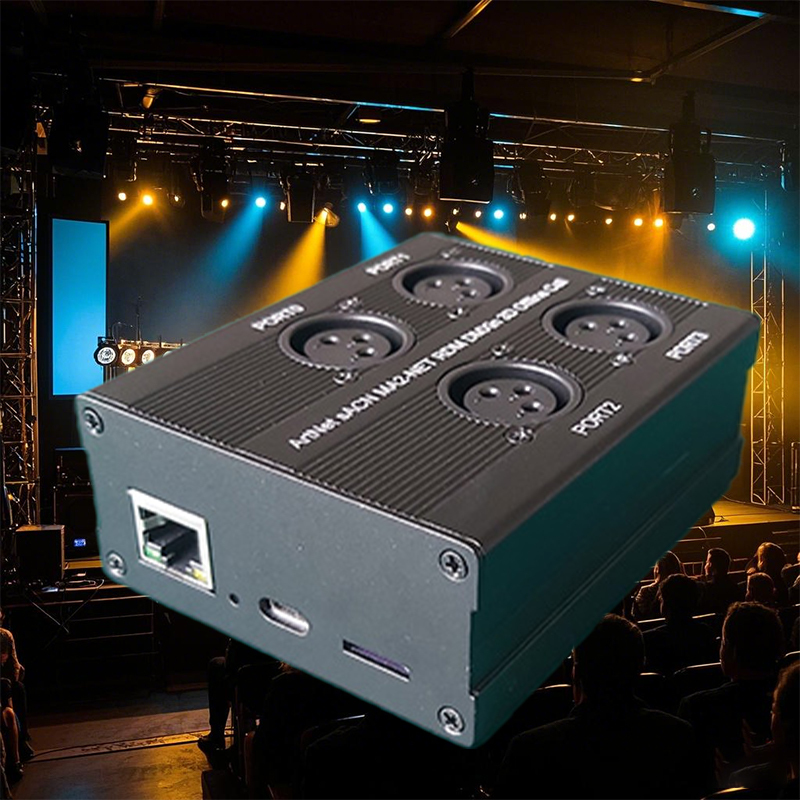

I/O Ports
|
DMX Out: 4 ports (2048 channels, isolated, PTC/TVS protection);
DMX In: Port 3 (RDM/RS485 isolated input)
|
|
Software Integration
|
Native: MA2 onPC (2018+);
Plugins: Madrix, Lightjockey, VJ;
Free Tools: MagicQ, QLC+, DMXControl
|
|
Built-in Effects Library
|
54 RGB/RGBW programmable effects; externally triggerable
|
|
Storage & Expansion
|
TF Card: FAT/FAT32/exFAT support; DMX file storage/playback;
WebUI: Playlist editor, secondary development tools
|
|

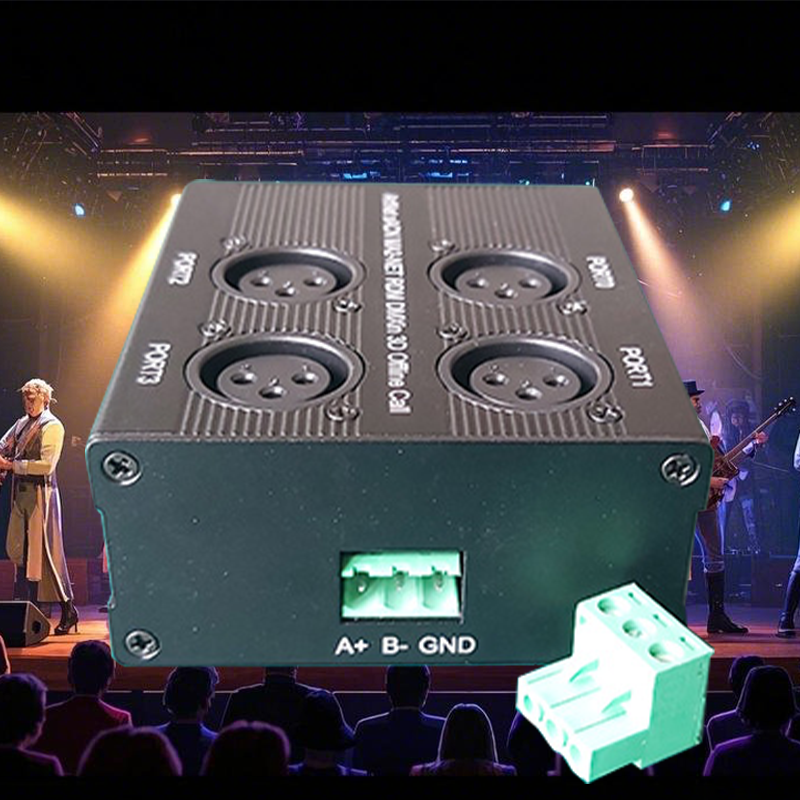

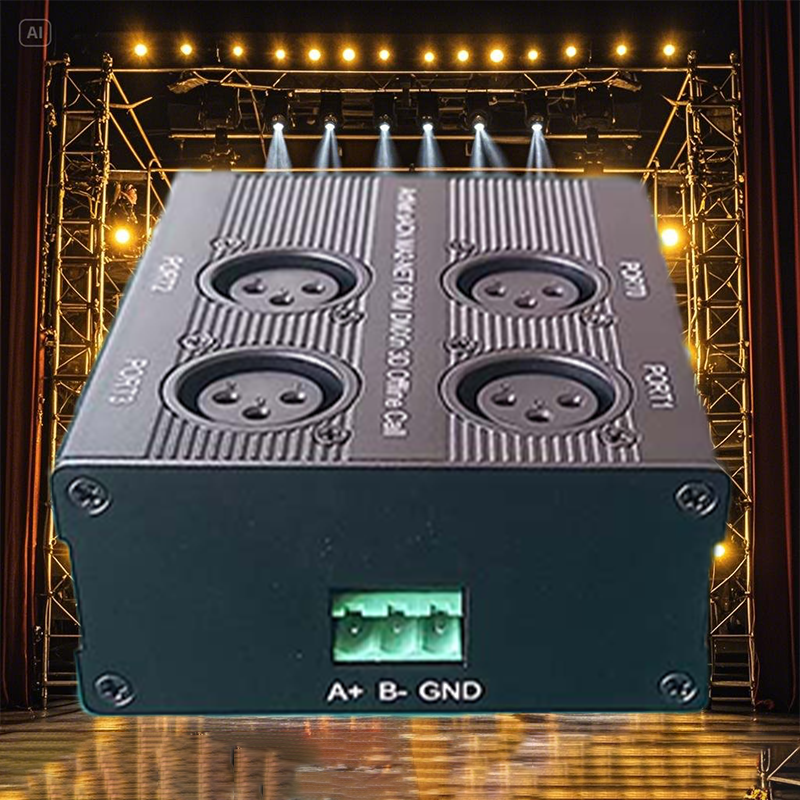

Hardware Interfaces
|
Phoenix Port: RS485/RS232 (requires level converter);
Type-C: Dual-mode (USB - to - Ethernet or 5V power)
|
|

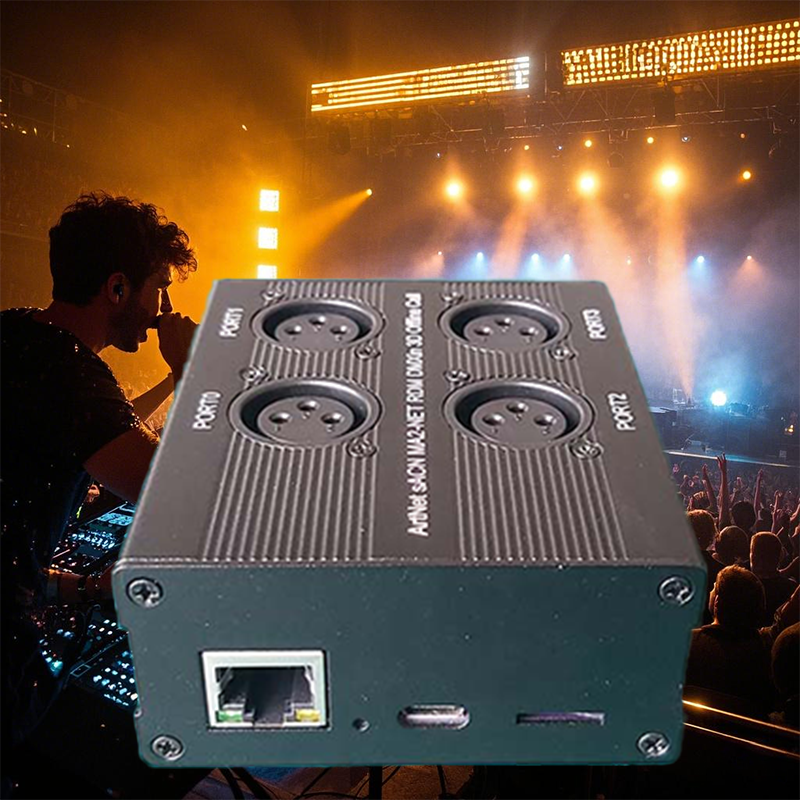

Network & Connectivity
|
LAN Port: 10M adaptive PHY;
UDP/HTTP: Browser - based control (HTTP only; no SSL)
|
|
Power Options
|
5V power via Type-C (mobile charger compatible); isolated power design
|
|
Compatibility & Cross-Platform
|
Linux/Win7/10/11 support; browser - controlled (no OS - specific software required)
|
|
Security & Protection
|
Photoelectric isolation, PTC/TVS chips on DMX ports; anti - surge protection
|
|
Development Support
|
Open APIs, detailed SDK/docs; TF card supports custom web page deployment
|
|
Time Synchronization
|
Built-in RTC with web UI auto - sync; timestamped playback
|
|
Special Notes
|
RS232 requires external level converter;
Avoid HTTPS (use HTTP only)
|
